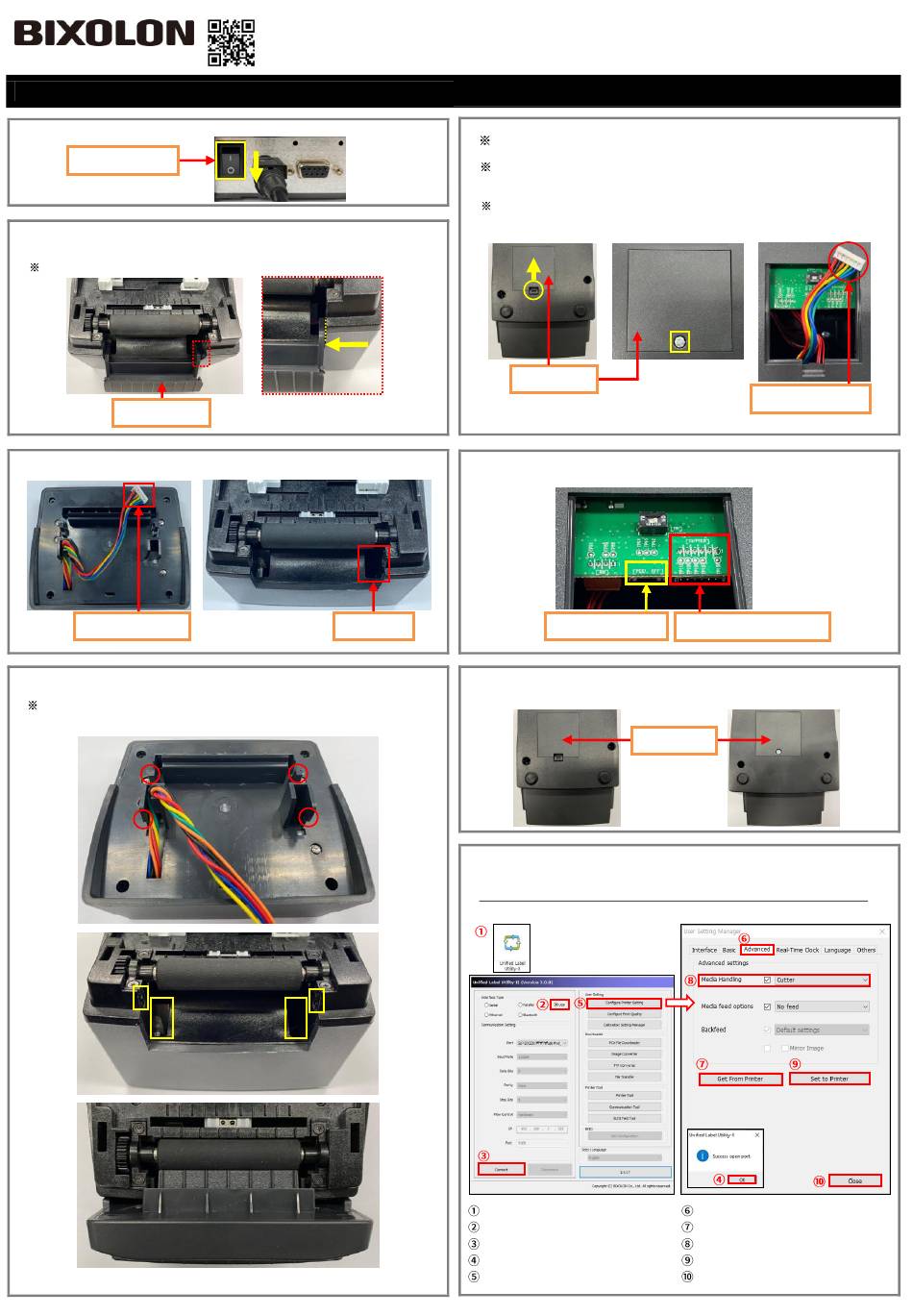

BIXOLON DX Series How To Mount

KN04-00209A (Ver.1.0)
1. Turn the Power Switch Off at the rear of the Printer.
Power Switch
2. Open the printer cover. And Insert tweezers (recommended) into the
Right hole (yellow dotted line) of the Cover STD, then press it inward
(yellow arrow) to disassemble it.
You can also remove it by pressing the left side in the same manner.
Cover STD
3. Insert the Auto Cutter Wire into the Wire Hole.
Auto Cutter wire
4. Engage the Hooks (red circles) with the square-shaped sockets
(yellow squares) in the order from top to bottom.
Be careful that the Wire does not get stuck.

How to Mount Auto Cutter

Off
Wire Hole
DX/TX(2inch Model) Series
5. Place the bottom of the Printer face the front.
SLP-DX22x: Disassemble the Cover DIP by pressing the Hook (Yellow
circle) inward.
SLP-TX22x: After removing one screw (Yellow square) using a screwdriver,
then disassemble the Cover DIP.
Arrange the Auto Cutter Wire so that it looks like the picture below.
Be careful to avoid tangling with other Wires when shaping.
<SLP-DX22x>
Cover DIP
6. Insert the Auto Cutter Wire into the Auto Cutter Connector (red square) in
the correct direction.
Peeler Connector
7. Reassemble the Cover DIP that was removed in step 5.
<SLP-DX22x>
8. In order to operate the Auto Cutter, the settings must be changed through the
utility. Access the Bixolon webpage (www.bixolon.com) and download the
Unified Label Utility.
Connect the communication cable (USB) and Turn the Printer power On.
Then, change the settings in the following order.
Launch 'Unified Label Utility'
'USB' Click!
'Connect' Click!
'OK' Click!
'Configure Printer Setting' Click!
<SLP-TX22x>
Auto Cutter Wire
Auto Cutter Connector
<SLP-TX22x>
Cover DIP
'Advanced' Click!
'Get From Printer' Click!
Media Handling 'Cutter' Setting!
'Set to Printer' Click!
'Close' Click!
