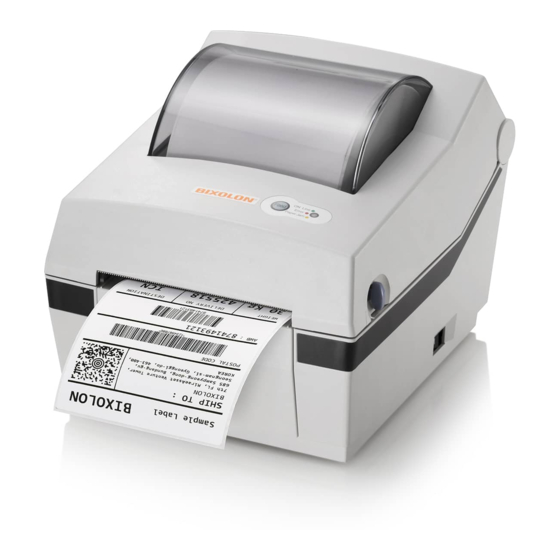

Network Connection Manual
TX / DX / DL Series
SRP-770III/E770III
Ver. 2.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON TX Series

Summary of Contents for BIXOLON TX Series

  • Page 1 Network Connection Manual TX / DX / DL Series SRP-770III/E770III Ver. 2.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    Network Connection Manual Table of Contents 1. Introduction ........................3 2. Precaution ........................3 3. How to Connect......................4 3-1 Connecting Printer ...................... 4 3-2 Initial Wireless LAN Connection(Windows 10) ............5 4. Configuration ....................... 12 4-1 LAN Setting Values ....................12 4-2 WLAN Setting Values ....................

  • Page 3: Introduction

    1. Introduction This Network manual provides information on the connection of network with the Industrial Label printer. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: How To Connect

    Network Connection Manual 3. How to Connect Both Ethernet and WLAN can be configured through the printer’s LCD Display, USB, Ethernet or WLAN interface. When you want to change the Ethernet or WLAN of the printer, the network settings of the host(PC, PDA, etc) and Ethernet or WLAN of the printer must configured properly configured so that communication can be established.

  • Page 5: Initial Wireless Lan Connection(Windows 10)

    Network Connection Manual 3-2 Initial Wireless LAN Connection(Windows 10) • If a wireless LAN utility program is installed, set it using the program or exit the wireless program and set it in the following orders. 1) Search the “Control Panel” and then Click the “Open”. 2) Click the “View network status and tasks”.
  • Page 6 Network Connection Manual 3) Click the “Change adapter settings”. Click the “wireless network adaptor’s Properties”. (Windows 10 : “WiFi Properties”) 4) Select Internet Protocol Version 4(TCP/IPv4), and then click Properties. Ver.2.00 - 6 -...
  • Page 7 Network Connection Manual 5) Set the IP settings as shown below, and then click OK. 6) Click the “Manage wireless networks”. ( Windows10:“Set up a new connection or network” Ver.2.00 - 7 -...
  • Page 8 Network Connection Manual 7) Click the “Add”. (Windows 10 : “Manually create a wireless network”) 8) Click the “Create an ad hoc network”. Ver.2.00 - 8 -...
  • Page 9 Network Connection Manual 9) Click the “Next”. 10) ‘Network name’ = BIXOLON_adhoc, ‘Security type’ = Open, ‘Save this network’ check, and then click the “Next”. (Windows 10 : “Start this connection automatically” / “Connect even if the network is not broadcasting” check) Ver.2.00 - 9 -...
  • Page 10 Network Connection Manual 11) Click the “Close”. Ver.2.00 - 10 -...
  • Page 11 Network Connection Manual 12) After completing configuration, Bixolon_adhoc network will be created. When the printer is set to the default value (Adhoc mode, SSID: BIXOLON_adhoc), it will automatically connect. ※Adhoc connection may not supported according to the security policy on Windows 10.

  • Page 12: Configuration

    Network Connection Manual 4. Configuration 4-1 LAN Setting Values Classification Item Remarks Input Range Home LAN setting status display Printer Name Printer name 0~32 letters 0~32767 integer TCP Raw port that the Printer Port (except 1,23,25, printer can use 80,443,3318) System ID to use for ftp, telnet, User Name...

  • Page 13: Wlan Setting Values

    Network Connection Manual 4-2 WLAN Setting Values Classification Item Remarks Input Range WLAN setting status Home display Printer Name Printer Name 0~32 letters 0~32767 integers TCP Raw port that the Printer Port (except 21,23,25,80,443, printer can use 3318) ID to use for ftp, telnet, System User Name 1~32 letters...

  • Page 14: Configuration Tool

    Network Connection Manual 4-3 Configuration Tool • Install Net Configuration Setup_[version] and execute. [Note] - You can download from our home page the Net Configuration Setup_[version]. (www.bixolon.com) (Search the “Net Configuration” and then Click the “Open”) Ver.2.00 - 14 -...

  • Page 15: Ethernet Configuration

    Network Connection Manual 4-3-1 Ethernet Configuration 1) When you press the Search button, the printer connected to the network will be shown in the list. 2) The following warning message may pop up if the firewall is installed. Select [Allow access], and then retry the Search operation. Ver.2.00 - 15 -...
  • Page 16 Network Connection Manual 3) Select the printer from the list and press the [Configuration] button, and then the following window for setting Ethernet settings will pop up. 4) Enter the proper IP Address, Subnet Mask, and Gateway for the currently used network, and then press the Save button to save the settings.
  • Page 17 Network Connection Manual 5) Select the printer from the list and press the [Launch Browser] button, and then the Login window will pop up. 6) Enter the Username and Password set for the printer, and then click OK. (Default settings are Username: “admin”, Password: “password”) Ver.2.00 - 17 -...
  • Page 18 Network Connection Manual 7) When you log in, you will see the web browser for changing the Ethernet settings as shown below. Ver.2.00 - 18 -...

  • Page 19: Wlan Configuration(After Initial Wireless Lan Connection)

    Network Connection Manual 4-3-2 WLAN Configuration(After initial Wireless LAN Connection) 1) When you press the Search button, the printer connected to the network will be shown in the list. 2) Select the printer from the list and press the [Configuration] button, and then the following window for changing the WLAN settings will pop up.
  • Page 20 Network Connection Manual 3) Enter the proper IP Address, Subnet Mask, and Gateway of the currently used network, and then click the [Save] button to save the settings. 4) Select the printer from the list and press the [Launch Browser] button, and then the Login window will pop up.
  • Page 21 Network Connection Manual 5) When you log in, you will see the web browser for changing the WLAN settings as shown below. Ver.2.00 - 21 -...

  • Page 22: Wlan Configuration(Usb Cable)

    Network Connection Manual 4-3-3 WLAN Configuration(USB Cable) ※ Available on V01.40 or higher version 1) Click [WLAN(Advanced)] tab to configure WLAN settings using USB cable 2) Click [Connect] after printer connection via USB to configure Network(WLAN), Protocol, System, Authentication..etc. for network environment in use. Then click[Save] to save settings.

  • Page 23: Web Browser

    Network Connection Manual 4-4 Web Browser Enter the IP address of the printer in the address bar, and the following login window will pop up. Enter the Username and Password set for the printer, and then click [OK]. (Default setting values are Username: “admin”, Password: “password”.) When the Username and Password match the ones registered in the printer, the following window will be opened.

  • Page 24: Ethernet Configuration Selection

    Network Connection Manual 4-4-1 Ethernet Configuration Selection Click “Lan configuration” on Web browser first login page. Settings related to Home, System, Protocol, and Network(LAN) can be configured in this window. Ver.2.00 - 24 -...

  • Page 25: Wireless Lan Selection

    Network Connection Manual 4-4-2 Wireless LAN selection 4-4-2 Wireless LAN selection Click “Wireless Lan configuration” on Web browser first login page. Wireless, Network(WLAN), Traffic ,Security and ETC can be configured from this window. The Wizard mode is also provided for easier step by step configuration. Ver.2.00 - 25 -...

  • Page 26: Ftp

    Network Connection Manual 4-5 FTP • The configuration files will be downloaded and uploaded to and from the current path. In the following case, the current path is “C:\Users\Public\Documents”. Enter “ftp Printer IP”, and enter the User and Password set for the printer. Enter the “ls”...
  • Page 27 Network Connection Manual The contents of the [Printer name].config file are as follows. * The format of the configuration file is “Configuration item: Setting value”. Uploading a file that doesn’t have the format shown above will not change the setting values.

  • Page 28: Telnet

    Network Connection Manual 4-6 Telnet Enter “telnet Printer IP”. Enter the Username and Password set for the printer. The screen related to the network configuration will then be displayed. You can select the menu to configure and edit the settings. Ver.2.00 - 28 -...

  • Page 29: Smtp

    Network Connection Manual 4-7 SMTP • The changes of the status of the printer are monitored, and a notification e-mail is sent to the registered administrators. SMTP must be enabled to use the SMTP function. You can use the web browser, telnet, or ftp to enable the SMTP. (Refer to Configuration) Using Web Browser Connect to the printer web-server.(Enter the IP address of the printer in the address bar.)
  • Page 30 Network Connection Manual Check the SMTP setting values Check the ID registered to the mail server SMTP User ID SMTP Password Enter the password for the corresponding User ID SMTP Server Enter the mail server(Example: Domain or mail server IP) Name * Check DNS settings when entering domain SMTP Port...

  • Page 31: Ethernet / Wlan Test By Using Windows Test Page

    1) Install the Windows printer driver. [Note] - You can download from our home page the Windows driver. (www.bixolon.com) 2) Click the “View devices and printers” from the Control Panel. 3) Select and right click on the corresponding model, and then select “Printer properties.”...
  • Page 32 Network Connection Manual 4) Select the “Ports” tab from the “Properties” window. 5) Click “Add Port…” Ver.2.00 - 32 -...
  • Page 33 Network Connection Manual 6) Select “Standard TCP/IP Port” and click “New Port...” 7) Click the [Next] button in the “Add Standard TCP/IP Printer Port Wizard” window. 8) Enter the IP address assigned to the printer in the “Printer Name or IP Address” field in the “Add Port”...
  • Page 34 Network Connection Manual 9) Click the [Next] button in the “Additional Port Information Required” window. [Note] - Click the [Next] button to proceed without any changes. 10) Click the [Finish] button at the “Completing the Add Standard TCP/IP Printer Port Wizard”...
  • Page 35 Network Connection Manual 12) Click the “Configure Port...” button in the “Properties” window. 13) Enter the same number as the local port number set during the installation of the interface card in the “Port Number” field in the Raw Settings. [Note] - Do not change any other items except the RAW Settings.
  • Page 36 Network Connection Manual 14) Click [OK] when you finish entering the required values, and then click the [Apply] button. 15) Select the “General” tab in the Properties window, and then select the “Print Test Page” to check the printing status. Ver.2.00 - 36 -...

  • Page 37: Factory Reset

    Network Connection Manual 6. Factory Reset This function changes the Ethernet and WLAN settings of the printer to the initial factory settings. SSID of WLAN will be reset as Default(BIXOLON_adhoc) Method(There are 2ways to make the printer WLAN reset) 1) In order to carry out the factory reset, turn off the printer, and then turn on the printer while pressing the reset button as shown in the following picture.
  • Page 38 Network Connection Manual [DX22x/TX22x] [DL41x] Ver.2.00 - 38 -...
  • Page 39 Network Connection Manual [770III/E770III] Ver.2.00 - 39 -...

  • Page 40: Troubleshooting

    Network Connection Manual 7. Troubleshooting When printing doesn’t work Check network setting When using Ethernet IP Address Check whether the IP Address band of the printer rand the AP(or wireless terminals) are the same. The first three digits of the four digit value in the IP Address must be the same.
  • Page 41 Network Connection Manual Port Check whether the port configured in the printer and the host(PC, PDA) are the same. Authentication/Encryption Check the authentication/encryption setting status. Check whether the settings of the printer and the AP(wireless terminals) are the same. PING Check Checking IP collision When entering IP address manually without using DHCP, you must check whether the corresponding IP address is used by other...
  • Page 42 PC to confirm whether its operation is normal. When using WLAN It is recommended to use the USB extended cable provided by BIXOLON. Connect the USB extended cable and WLAN dongle to other terminals or the PC and confirm whether recognition operation is normal.
  • Page 43 Network Connection Manual Default Values SLP-TX400/TX403 SLP-TX420/TX423 SLP-TX220/TX223 Printer Name SLP-DX420/DX423 SLP-DX220/DX223 Printer Name SLP-DL410/DL413 SRP-770III/E770III Printer Port Num 9100 User ID admin User Password password Disable TELNET Disable Disable SMTP Server Name: "" SMTP Port Number: 25 From Address: "" Protocol To Address: ""...
  • Page 44 Network Connection Manual Revision History Rev. Date Page Description 2.00 22.01.20 Ver.2.00 - 44 -...
