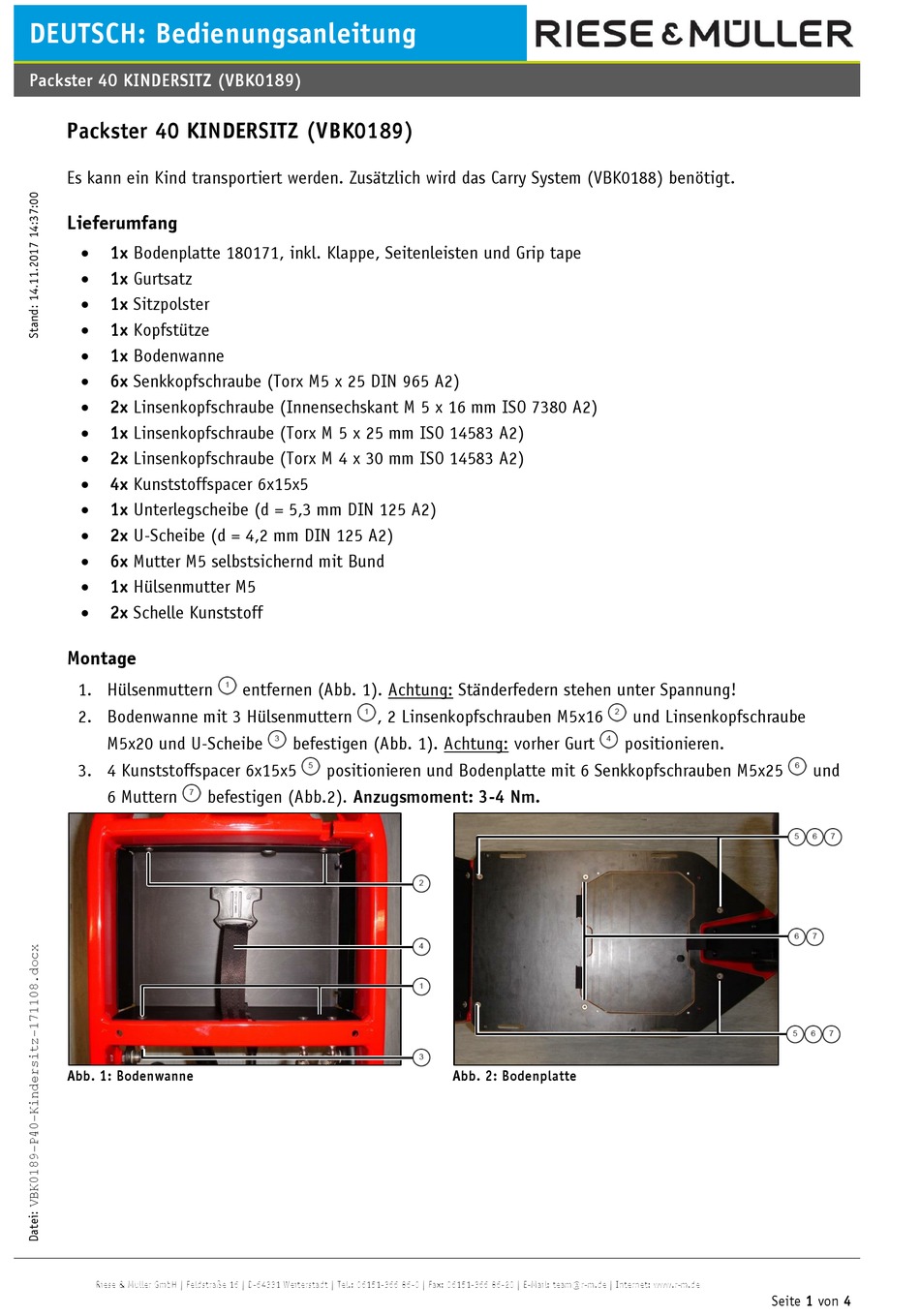

DEUTSCH: Bedienungsanleitung
Packster 40 KINDERSITZ (VBK0189)
Packster 40 KINDERSITZ (VBK0189)
Es kann ein Kind transportiert werden. Zusätzlich wird das Carry System (VBK0188) benötigt.
Lieferumfang
1x Bodenplatte 180171, inkl. Klappe, Seitenleisten und Grip tape
1x Gurtsatz
1x Sitzpolster
1x Kopfstütze
1x Bodenwanne
6x Senkkopfschraube (Torx M5 x 25 DIN 965 A2)
2x Linsenkopfschraube (Innensechskant M 5 x 16 mm ISO 7380 A2)
1x Linsenkopfschraube (Torx M 5 x 25 mm ISO 14583 A2)
2x Linsenkopfschraube (Torx M 4 x 30 mm ISO 14583 A2)
4x Kunststoffspacer 6x15x5
1x Unterlegscheibe (d = 5,3 mm DIN 125 A2)
2x U-Scheibe (d = 4,2 mm DIN 125 A2)
6x Mutter M5 selbstsichernd mit Bund
1x Hülsenmutter M5
2x Schelle Kunststoff
Montage
1. Hülsenmuttern
2. Bodenwanne mit 3 Hülsenmuttern
M5x20 und U-Scheibe
3. 4 Kunststoffspacer 6x15x5
6 Muttern
Abb. 1: Bodenwanne
Riese & Müller GmbH | Feldstraße 16 | D-64331 Weiterstadt | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
entfernen (Abb. 1). Achtung: Ständerfedern stehen unter Spannung!
, 2 Linsenkopfschrauben M5x16
befestigen (Abb. 1). Achtung: vorher Gurt
positionieren und Bodenplatte mit 6 Senkkopfschrauben M5x25
befestigen (Abb.2). Anzugsmoment: 3-4 Nm.
positionieren.
Abb. 2: Bodenplatte
und Linsenkopfschraube
Seite 1 von 4
und

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Packster 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RIESE & MULLER Packster 40

  • Page 1 DEUTSCH: Bedienungsanleitung Packster 40 KINDERSITZ (VBK0189) Packster 40 KINDERSITZ (VBK0189) Es kann ein Kind transportiert werden. Zusätzlich wird das Carry System (VBK0188) benötigt. Lieferumfang  1x Bodenplatte 180171, inkl. Klappe, Seitenleisten und Grip tape  1x Gurtsatz  1x Sitzpolster ...
  • Page 2 DEUTSCH: Bedienungsanleitung Packster 40 KINDERSITZ (VBK0189) 4. Frontplatte und Reling befestigen (siehe Anleitung VBK0189). 5. 4 Gurtenden durch Frontplatte stecken (Abb. 3 und 4). 6. Kopfstütze mit Kunststoffschellen , U-Scheiben und Linsenkopfschrauben M4x30 an Reling befestigen (Abb. 5). Abb. 3: Gurtende Abb.
  • Page 3 ENGLISH: Owners Manual Packster 40 CHILD SEAT (VBK0189) Packster 40 CHILD SEAT (VBK0189) Makes it possible to carry one child. The Carry System (VBK0188) is needed additionally. Scope of delivery  1x bottom plate 180171, incl. flap, strips and Grip tape ...
  • Page 4 ENGLISH: Owners Manual Packster 40 CHILD SEAT (VBK0189) 1. Mount fron plate and rail (see manual VBK0189). 2. Insert 4 belt ends into slots of front plate (fig. 3 and 4). 3. Mount head rest with plastic clamps , washers and rounded head bolts M4x30 at rail (fig.
