Table of Contents

ENGLISH: Owners Manual
Packster 40 CARRY SYSTEM (VBK0188)
Packster 40 CARRY SYSTEM (VBK0188)
The optional Carry System makes luggage transport convenient.

Scope of delivery

1x front plate 180170 incl. Velcro and Grip tape
1x bottom plate 180271, incl. grip tape
1x upper rail
1x lower rail incl. plugs
2x long stay incl. plastic studs
2x short stay
1x shroud Carry System
4x countersunk screw (Torx M5 x 16 DIN 965 A2)
9x countersunk screw (Torx M5 x 25 DIN 965 A2)
4x countersunk screw (Torx M5 x 30 DIN 965 A2)
1x countersunk screw (Torx M5 x 40 DIN 965 A2)
6x rounded head bolt (allen M 5 x 20 mm ISO 7380 A2)
4x rounded head bolt (allen M 5 x 25 mm ISO 7380 A2)
2x rounded head bolt (Torx M 5 x 12 mm ISO 14583 A2)
6x plastic spacer 6x15x5
6x spacer flat-round
3x washer (d = 5,3 mm DIN 134 A2)
14x selflock nut M5 with flange

Assembly

1. Put 4 plastic spacer 6x15x5
2. Put bottom plate in place and fix it with 5 bolts M5x25

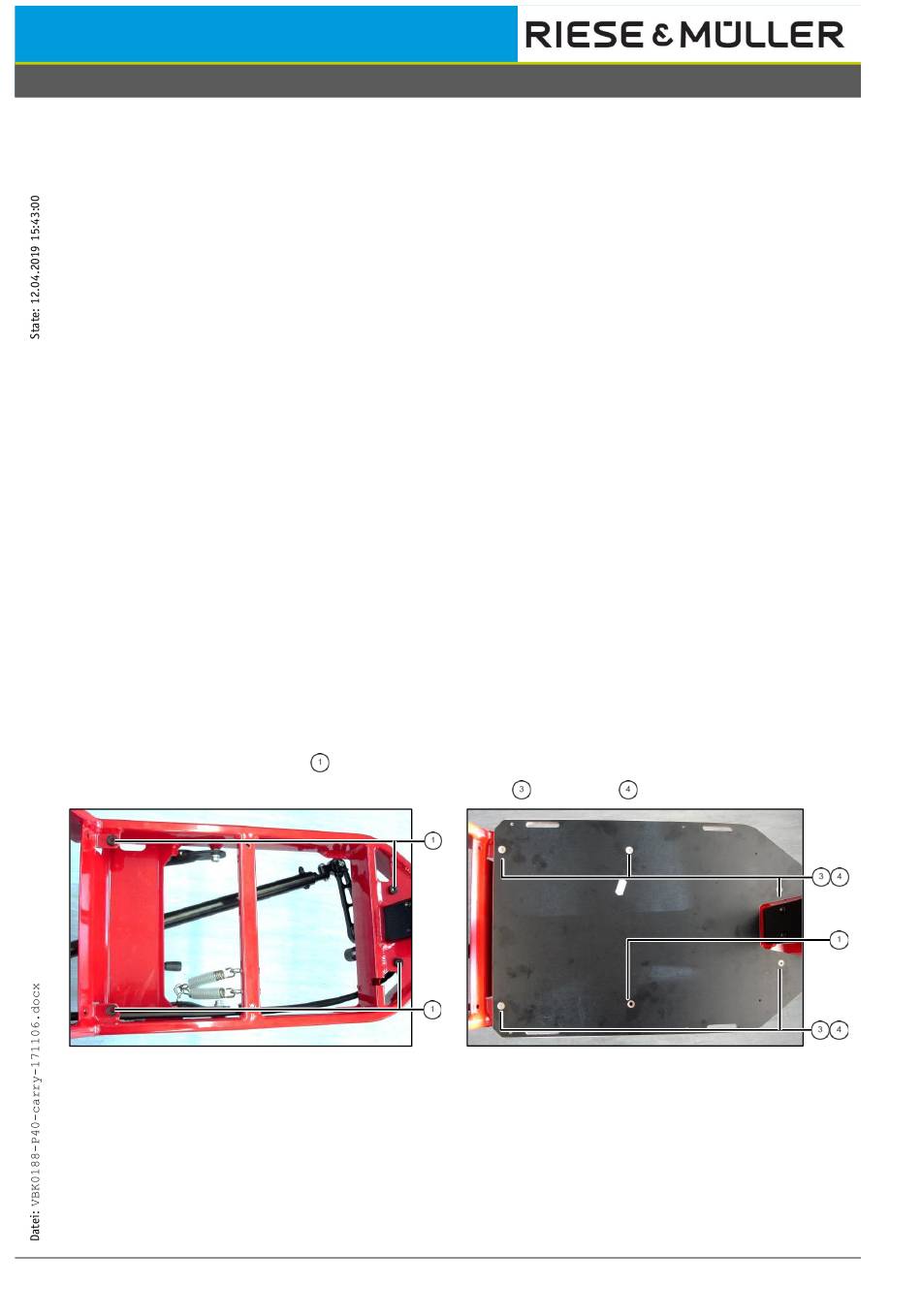

fig. 1: Grip tape and spacer
Riese & Müller GmbH | Am alten Graben 2 | D-64367 Mühltal | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
in place (fig. 1).
fig. 2: bottom plate
and 5 nuts
(fig. 2).
Page 4 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Packster 40 CARRY SYSTEM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIESE & MULLER Packster 40 CARRY SYSTEM

Summary of Contents for RIESE & MULLER Packster 40 CARRY SYSTEM

  • Page 1 ENGLISH: Owners Manual Packster 40 CARRY SYSTEM (VBK0188) Packster 40 CARRY SYSTEM (VBK0188) The optional Carry System makes luggage transport convenient. Scope of delivery  1x front plate 180170 incl. Velcro and Grip tape  1x bottom plate 180271, incl. grip tape ...
  • Page 2 ENGLISH: Owners Manual Packster 40 CARRY SYSTEM (VBK0188) 3. Mount bolt M5x40 , plastic spacer 5x20x3 , washer and nut (fig.3). 4. Put 2 plastic spacers 6x15x5 in place. Mount front plate with 4 bolts M5x25 and 4 nuts (fig. 4).
  • Page 3 ENGLISH: Owners Manual Packster 40 CARRY SYSTEM (VBK0188) Carry System use Before each ride the following items must be checked:  The luggage must be fixed securely and nothing should get caught by the wheels.  The maximum loading capacity of the Carry System is 60kg. The maximum load of the E-Bike shall not exceeded.
