Balanced Body Contrology High Mat Assembly Instructions

Contrology® High Mat Assembly Instructions
Please read through these instructions completely prior to
assembling your Contrology High Mat.
PARTS LIST
DESCRIPTION

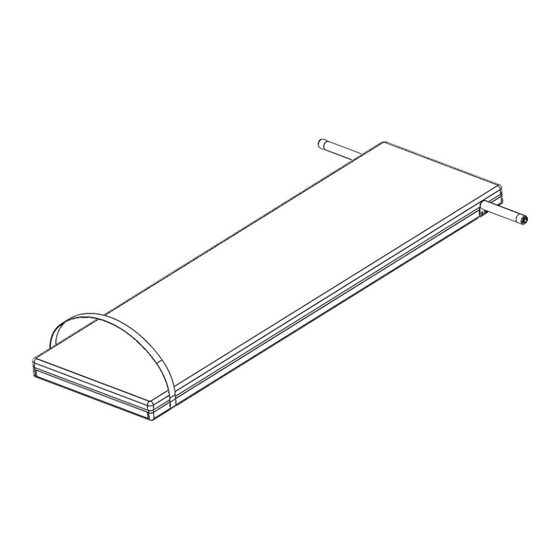

Upholstered High Mat
Handle Mount (with handle
and tip, assembled)
Screws, Button Head Hex,
1/4"-20 x 1-1/2"
Flat washer, 1/4"
Nyloc nut, 1/4"-20
Footstrap (pre-installed)
Allen Key, 5/32"
Wrench, 7/16"
Non-skid strips
INSTALL THE HANDLES
LAY OUT ALL THE PARTS
1. Make sure you have all the components listed in the parts list.
PLACE MAT ON A RAISED SURFACE
2. Put the high mat on a raised surface that allows access to
mount the handles.
INSTALL HANDLE ASSEMBLY
3. Begin by sliding the handle bracket over the notch in the
frame, as shown in Figure A.
Figure A
PART NO QTY
18748 1
18742 2
13611 4
13722 4
13613 4
18784 1
10551 1
11670 1
18928 16
Balanced Body, Inc.
5909 88th St,
Sacramento, CA 95828 USA
4. Attach the bracket to the frame using the 1/4"x 1-1/2" button
head screws, 1/4" washers, and 1/4" nyloc nuts, as shown in
Figure B, using the provided 7/16" wrench and the provided
5/32" Allen Key. Tighten until the bracket does not move by
hand.
Figure B
(OPTIONAL) INSTALL NON-SKID TO BASE
5. If desired, the user may add non-skid strips to the base of the
frame. To install, remove the adhesive from the back of the strip.
6. Place in the center of the frame rail, as shown in Figure C.
Press down and smooth out from the center to remove any
air bubbles. On sides which have channels for handle mounts,
take care to only place non-skid on the flat frame bottom.
Repeat this as shown in Figure C on the mat, and in Figure D
on the Moon Boxes (where applicable).
Figure C
Figure D
