2.4 Configuring the IP Lines

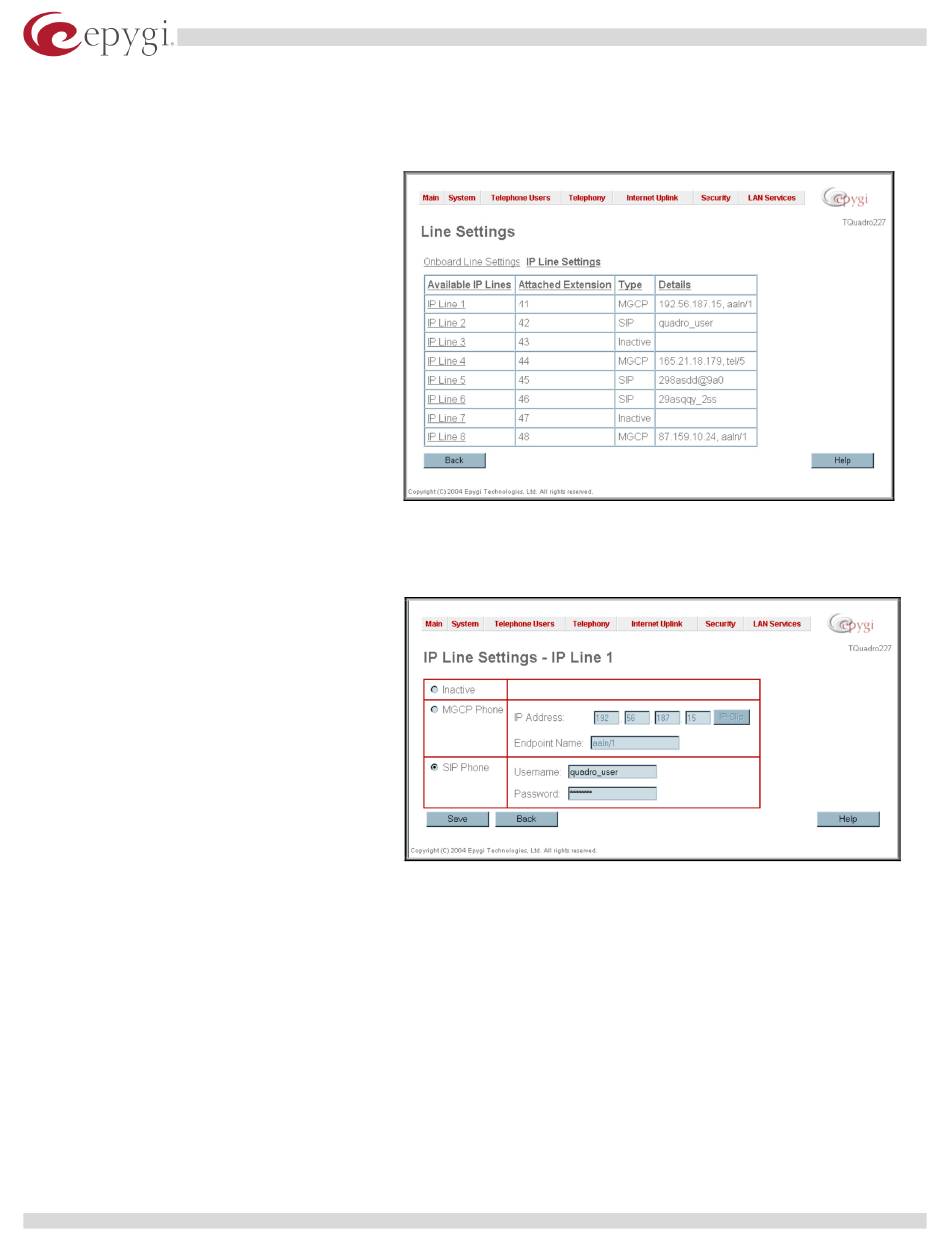

The IP Lines Settings page can be found under the Telephony menu, menu item Line Settings.
The IP Lines Settings page lists all
IP lines of the Quadro with additional
information about the phone type and
the configuration details for each of
them.
The table may be sorted ascending or
descending by clicking
heading.
Pressing one of the IP Line links in the
IP Lines column, the associated Edit
IP Line page is opened and offers the
following input options:
A group of manipulation radio buttons allows to enable the IP line and to configure it to be used by the
SIP or MGCP phone:
Selecting Inactive disables the corresponding IP line.
Selecting MGCP Phone configures the IP
line for MGCP phone to be connected to
the Quadro's LAN. The MGCP phone's IP
Address and its Endpoint Name will be
required for this selection. The Endpoint
Name is defined on the MGCP phone and
should match on
successful connection between the MGCP
device and the Quadro.
Selecting SIP Phone configures the IP
line for SIP phone to be connected to the
Quadro's LAN.
Password are required to be inserted
for this selection, which should match on
both Quadro and
successful connection establishment.
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
the column
Quadro for the
Username and
SIP Phone for a
Polycom SoundPoint IP 300 Phone Configuration
5
