Snom 190 Configuration

For quadro 2.4.x images

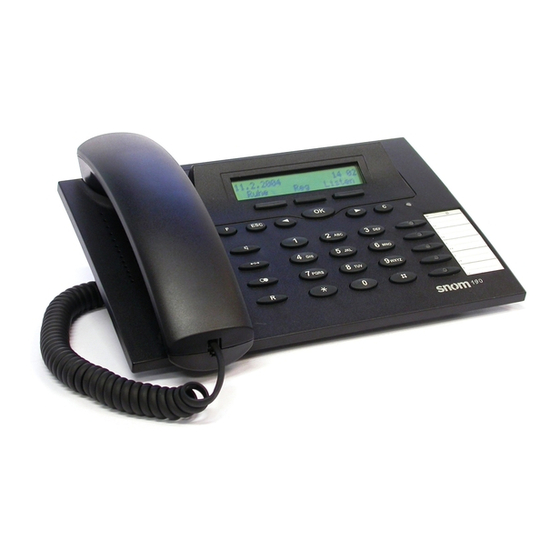

Snom190 Phone Configuration

for Quadro 2.4.x Images

1 Quadro Board Configuration

The user has to manually attach the extension to the SIP line and enter the SIP user name of the phone

and the password.

Epygi or the other company (wholesaler, retailer) has to set up the configuration site and enter the

default values into the phone. The Snom190 phone can be configured completely manually or in an

automated way (over HTTP).

First the automated configuration for distributors and then full manual way of configuration is

described. Note that we will show the easiest possible way (from the user's perspective) of configuring

the phone.

For a smooth interworking with Quadro the firmware version of the phone must be 3.56m.

Table of Contents

Do you have a question about the 190 and is the answer not in the manual?

Page 1 Snom190 Phone Configuration Snom190 Phone Configuration for Quadro 2.4.x Images 1 Quadro Board Configuration The user has to manually attach the extension to the SIP line and enter the SIP user name of the phone and the password. 2 SIP Phone Configuration 2.1 Distributors Epygi or the other company (wholesaler, retailer) has to set up the configuration site and enter the default values into the phone.
Page 2 Snom190 Phone Configuration Automatic (for distributors) configuration of the Snom190 using DHCP and HTTP servers: By factory default DHCP is enabled. In this case it is necessary to have a DHCP server available that will provide the IP address for the phone. An example of the server configuration is given below: •...
Page 3 “Software Update”, set the new image location (full http path) to the “Firmware” field and press “Load”. (You can find the images on ”http://www.snom.com/support_dl_en.php” or “http://www.snom.com/download/share/“). After pressing “Load” the phone will reboot and upgrade the firmware.
