Etransport And Unpacking - Samoa LARIUS DRAGON Operating And Maintenance Manual

DRAGON
ALARM MESSAGE TABLE
Alarm
Type of alarm
symbol
F1 Maximum current
F2 Dissipator temp.
F3 Motor temp.
F4 Maximum voltage
F5 Minimum voltage
F6 Earth connection
F7 Pressure sensor missing
Automatic switch-off during
F8
circulation phase (15 minutes)
TRANSPORT AND
E
UNPACKING
• The packed parts should be handled as indicated in the symbols
and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to be
used is large enough for such purposes, is properly lit and has
a clean, smooth floor surface.
• The user is responsible for the operations of unloading and
handling and should use the maximum care so as not to damage
the individual parts or injure anyone. To perform the unloading
operation, use only qualified and trained personnel (truck and
crane operators, etc.) and also suitable hoisting equipment
for the weight of the installation or its parts. Follow carefully
all the safety rules. The personnel must be equipped with the
necessary safety clothing.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machine.
• Check the packing is undamaged on receipt of the equipment.
Unpack the machine and verify if there has been any damage
due to transportation.

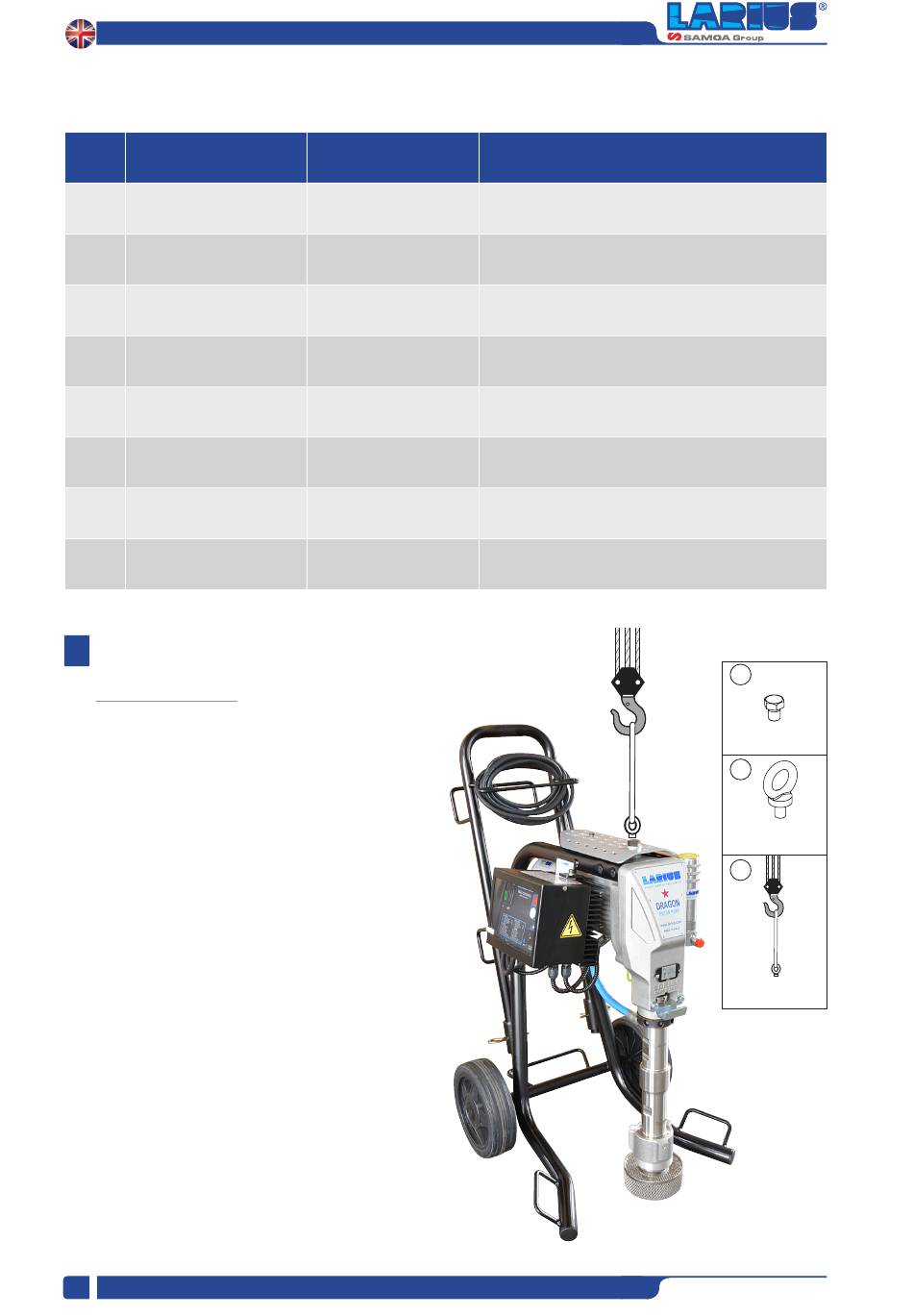

LIFTING POINTS
There are no precise lifting points for the machine in its entirety. In
order to determine the most appropriate lifting points, refer to the
geometric characteristics of the machine itself (proceed as shown).
www.larius.com
8
Cause
The motor's current Check the mechanical and hydraulic condition of the
absorption is too high equipment. If necessary, take action
The dissipator temperature Check that the dissipator surfaces are clean and that the
is too high dissipator is properly ventilated
The motor temperature is Check that the motor's heat dissipation surfaces are clean.
too high Check that cooling ventilation is correct
Check the connection to the electrical line and reinstate the
The voltage is too high
correct nominal voltage
Check the connection to the electrical line and reinstate the
The voltage is too low
correct nominal voltage
The earth connection is Check the earth cable and, if necessary, replace it. Make sure
disconnected or non-existent that the machine is earthed
The pressure sensor is
Replace it
damaged or not fitted
The equipment is in cleaning Wait until the equipment has stopped completely before
mode using it for a new job
Solution
1
REMOVE THE SCREW
2
SCREW IN THE
SUPPLIED EYEBOLT
3
LIFT THE MACHINE
Fig. 1E
ED. 14 - 10/2020 - Cod. 150178
