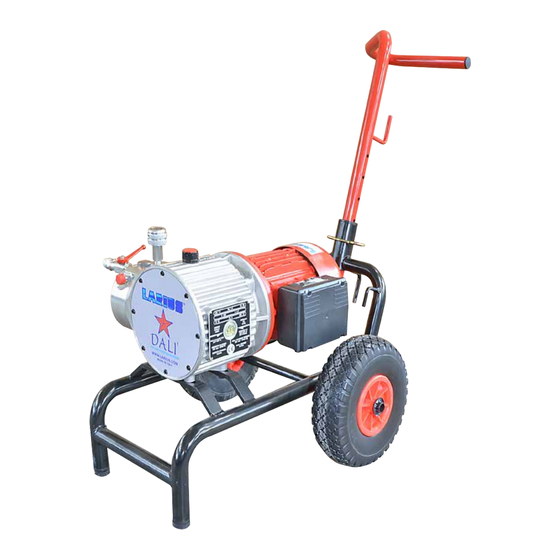

Electric diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
DALI'
Electric diaphragm pump
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LARIUS DALI' and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samoa LARIUS DALI'

Summary of Contents for Samoa LARIUS DALI'

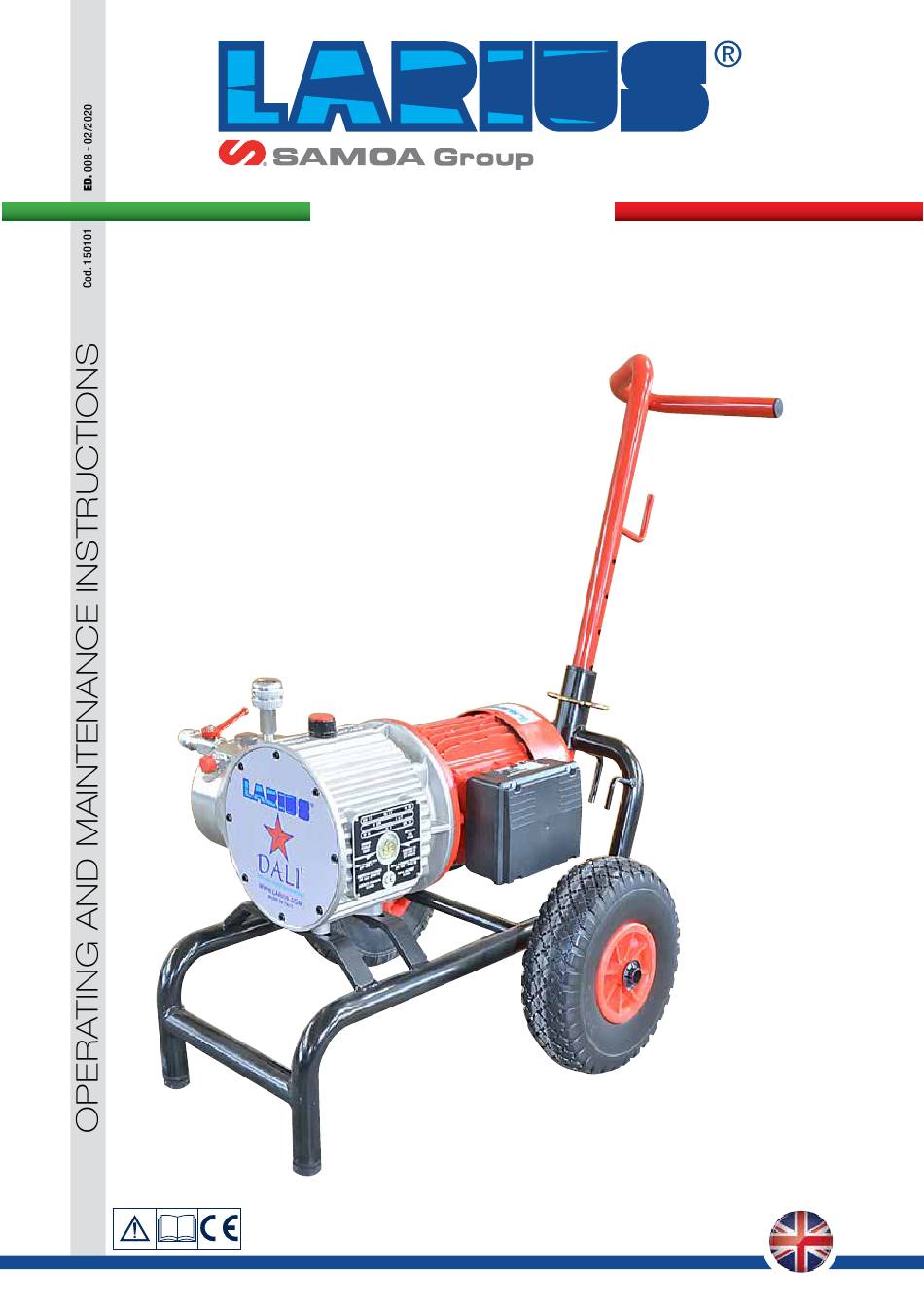

  • Page 1 w w w . l a r i u s . c o m DALI' Electric diaphragm pump English...
  • Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    dali' DALì Electric diaphragm pump AVVERTENZE ................................. p. 3 WORKING PRINCIPLE ............................p. 4 TECHNICAL DATA ..............................p. 4 DESCRIPTION OF THE EQUIPMENT ........................p. 5 TRANSPORT AND UNPACKING ..........................p. 8 CONDITIONS OF GUARANTEE ..........................p. 6 SAFETY RULES ..............................p. 6 SETTING-UP ................................

  • Page 5: Aavvertenze

    dali' WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 6: Bworking Principle

    dali' WORKING PRINCIPLE The LARIUS DALÍ unit is defined as an “electric diaphragm pump”. hydraulic valve on the hydraulic case head allows setting and An electric diaphragm pump is used for high pressure paint checking the pressure of the paint product at the pump outlet. spraying without air (known as “airless”).

  • Page 7: Ddescription Of The Equipment

    dali' DESCRIPTION OF THE EQUIPMENT Fig. 1D Pos. Description Pos. Description Carriage LARIUS AT 250 gun Electric / combustion motor Fast clean Feed tube connection Tools box Setting valve Recirculation valve Hydraulic oil filling cap Recirculation pipe connection Hydraulic body Product suction tube connection Colour body Adjustable handle...

  • Page 8: Etransport And Unpacking

    dali' TRANSPORT AND UNPA- SAFETY RULES CKING • THE EMPLOYER SHALL TRAIN ITS EMPLOYEES ABOUT • The packed parts should be handled as indicated in the ALL THOSE RISKS STEMMING FROM ACCIDENTS, ABOUT symbols and markings on the outside of the packing. THE USE OF SAFETY DEVICES FOR THEIR OWN SAFE- TY AND ABOUT THE GENERAL RULES FOR ACCIDENT •...
  • Page 9 dali' ELECTRICAL SAFETY PRECAUTIONS • NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK REGULARLY THE COMPONENTS OF THE SYSTEM. REPLACE THE PARTS DAMAGED OR WORN. • Check the "ON/OFF" switch is on the "OFF" position before connecting the cable to the mains. •...

  • Page 10: Hsetting-Up

    dali' SETTING-UP COLLEGAMENTI DI TUBO FLESSIBILE E PISTOLA • Connect the high pressure flexible hose to the pump and to the gun, ensuring to tighten the fittings (the use of two wrenches is suggested). • It is recommended to use the hose provided with the standard kit (ref.
  • Page 11 dali' • Point the gun at a container keeping the trigger pressed (so as to drain the oil inside) till a clean solvent comes out. Now, Fig. 6H WASHING OF THE NEW EQUIPMENT Fig. 9H • The equipment has already been adjusted at our factory with light mineral oil left inside the pumping group as protection.

  • Page 12: Iworking

    dali' WORKING Fig. 1I Fig. 2I Fig. 3I START OF THE PAINTING OPERATIONS the idle speed. Use the tooling after performing all the SETTING UP ope- • rations above described. • Make sure the product recycles from the return tube (I4). •...

  • Page 13: Jcleaning At The End Of The Work

    dali' CLEANING AT THE END WORK • Reduce pressure to the minimum (turn counterclockwise the pressure control knob (J1) ). Fig. 2J Fig. 1J • Press the ON/OFF switch (J2) placed on the box of the electric • Lift again the suction pipe and remove the solvent tank. motor, to stop the equipment.

  • Page 14: Kroutine Maintenance

    dali' ROUTINE MAINTENANCE specific solvents depending on the type of paint used and refit all parts by inverting the removal order. TOP UP HYDRAULIC OIL With each start up, check the hydraulic oil level by looking through the gauge (K1) on the side of the hydraulic body. If necessary, use “AGIP OSO 46 type hydraulic oil”...

  • Page 15: Lwarning Plate

    dali' Fig. 5K Fig. 7K Fig. 6K CLEANING THE MOTOR COOLING FAN GUARD Clean the motor cooling fan protection guard (K6) periodically to ensure the best cooling. Fig. 8K WARNING PLATE Apparecchi per verniciatura Paint spraying units ATTENZIONE WARNING UTILIZZARE GRUPPI ELETTROGENI USE POWER UNITS WITH CON ALTERNATORE ASINCRONO ASYNCHRONOUS ALTERNATOR...

  • Page 16: Mcorrect Procedure Of Decompression

    dali' CORRECT PROCEDURE OF DECOMPRESSION • Insert the gun clamp (M1). • Move the ON/OFF switch (M2) to the OFF position to stop the equipment. • Set the valve (M3) at its minimum pressure setting (turn counterclockwise). Fig. 1M Fig. 2M Fig.

  • Page 17: Nproblems And Solutions

    dali' PROBLEMS AND SOLUTIONS Problem Cause Solution The equipment does not start Lack of voltage; Check the correct connection to the power supply; Considerable drops in mains voltage; Check the extension cable; ON-OFF switch disconnected; Ensure the ON-OFF switch is on the “ON”...

  • Page 18: Ocomplete Hydraulic Body

    dali' COMPLETE HYDRAULIC BODY Fig. 1O www.larius.com ED. 008 - 02/2020 - Cod. 150101...
  • Page 19 dali' Pos. Code Description Pos. Code Description Electric motor mono-phase 220V 50Hz 18932 Petrol identification plate 18925 complete 18933 Identification plate 380V 50Hz Electric motor mono-phase 110V 60Hz 34020 Rivet 18926 complete 32007 Oil inspection window Electric motor three-phases 380V 50Hz 18924 32108 Plug...

  • Page 20: Ppetrol Engine

    dali' PETROL ENGINE Fig. 1P www.larius.com ED. 008 - 02/2020 - Cod. 150101...
  • Page 21 dali' Fig. 2P Fig. 3P Pos. Code Description Pos. Code Description 18344 Screw 18260 Complete gearbox – petrol membrane version 95114 Washer Complete gearbox kit – Dalì petrol version B+C+D 18340 18268 Hydraulic flange with trolley 81009 Dowel 18347 Complete Dalì liner kit 18269 Reduction 4415...

  • Page 22: Qcomplete Colour Body

    dali' COMPLETE COLOUR BODY VERTICAL VERSION Fig. 1Q www.larius.com ED. 008 - 02/2020 - Cod. 150101...
  • Page 23 dali' Pos. Code Description Pos. Code Description 18951 Vertical colour body 33021 Shutter guide 33033 Valve assembly 33022 Spring 33026 Gasket 33023 Washer 33027/2 Ball seat 33024 33027/1 Valve housing 33025 Seal sleeve 33028 Ball 18922 Recirculation valve assembly 33029 Spring seat 33012 Washer...
  • Page 24 dali' HORIZONTAL VERSION Fig. 2Q Pos. Code Description Pos. Code Description 18915 Standard colour body 33018 Gas-ring 33033 Valve assembly 33019 Conical shutter 33026 Gasket 33020/1 Spear valve seat 33027/2 Ball seat 33020 Valve body 33027/1 Valve housing 33021 Shutter guide 33028 Ball 33022...

  • Page 25: Rsuction System

    dali' SUCTION SYSTEM Pos. Code Description 85009 Suction systems 85010 Suction tube 16609 Recirculation tube 18096 Spring 85012 Filter of suction www.larius.com ED. 008 - 02/2020 - Cod. 150101...

  • Page 26: Strolley

    dali' TROLLEY ELECTRIC MOTOR Fig. 1S Pos. Code Description Pos. Code Description 18911 Trolley assembly 18913 Trolley frame 95159 Plug 37218 Pneumatic wheel 18912 Handle 91047 Washer 18914 Bushing 12454 Feet 18902 Split pin 12473 Plug www.larius.com ED. 008 - 02/2020 - Cod. 150101...
  • Page 27 dali' PETROL ENGINE Fig. 2S Pos. Code Description Pos. Code Description 12355 Trolley assembly 84007 Split pin 12454 Foot 12711 Trolley handle 12710 Trolley base 12473 Plug 37218 Pneumatic wheel 91047 Elastic washer www.larius.com ED. 008 - 02/2020 - Cod. 150101...

  • Page 28: Taccessories

    dali' ACCESSORIES Code 11250: AT 250 1/4" Code 270: FILTER 100 MESH Code 11200: AT 250 M16x1,5 Code 271: FILTER 60 MESH PISTON GUNSTOCK FILTERS Code 147: HIGH PRESSURE GAUGE M16x1,5 Code 11039: Green (30M) - Code 11038: White (60M) Code 150: HIGH PRESSURE GAUGE GJ 1/4"...
  • Page 29 dali' HIGH PRESSURE HOSE 3/8" - M16x1,5 max pressure 425 bar ANTISTATIC HOSE 3/16" - M16x1,5 max pressure 210 bar Code 18063: 7,5 mt Code 6164: 5 mt Code 18064: 10 mt Code 55050: 7,5 mt Code 18065: 15 mt Code 35018: 10 mt ANTIPULSATIONS 1/4"...
  • Page 30 dali' GUN EXTENSION Code 153: cm 30 -Code 153: cm 40 Code 155: cm 60 - Code 158: cm 80 - Code 156: cm 100 PLA 1/4” + BASE SUPER FAST-CLEAN Code K11420-K11425-K11430: cm 130-180-240 PLA M16x1,5 + BASE SUPER FAST-CLEAN Code K11421-K11426-K11431: cm 130-180-240 Code 16780: TELESCOPIC PAINT ROLLER...
  • Page 31 dali' DALÌ VERSIONS HORIZONTAL WITHOUT ACCESSORIES Ref. 18900: 220V / 50 Hz Ref. 18920: 110V / 60 Hz Ref. 18955: 380V / 50 Hz Ref. 18956: Petrol HORIZONTAL WITH ACCESSORIES Ref. 18957: 220V / 50 Hz Ref. 18958: 110V / 60 Hz Ref.
  • Page 32 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
