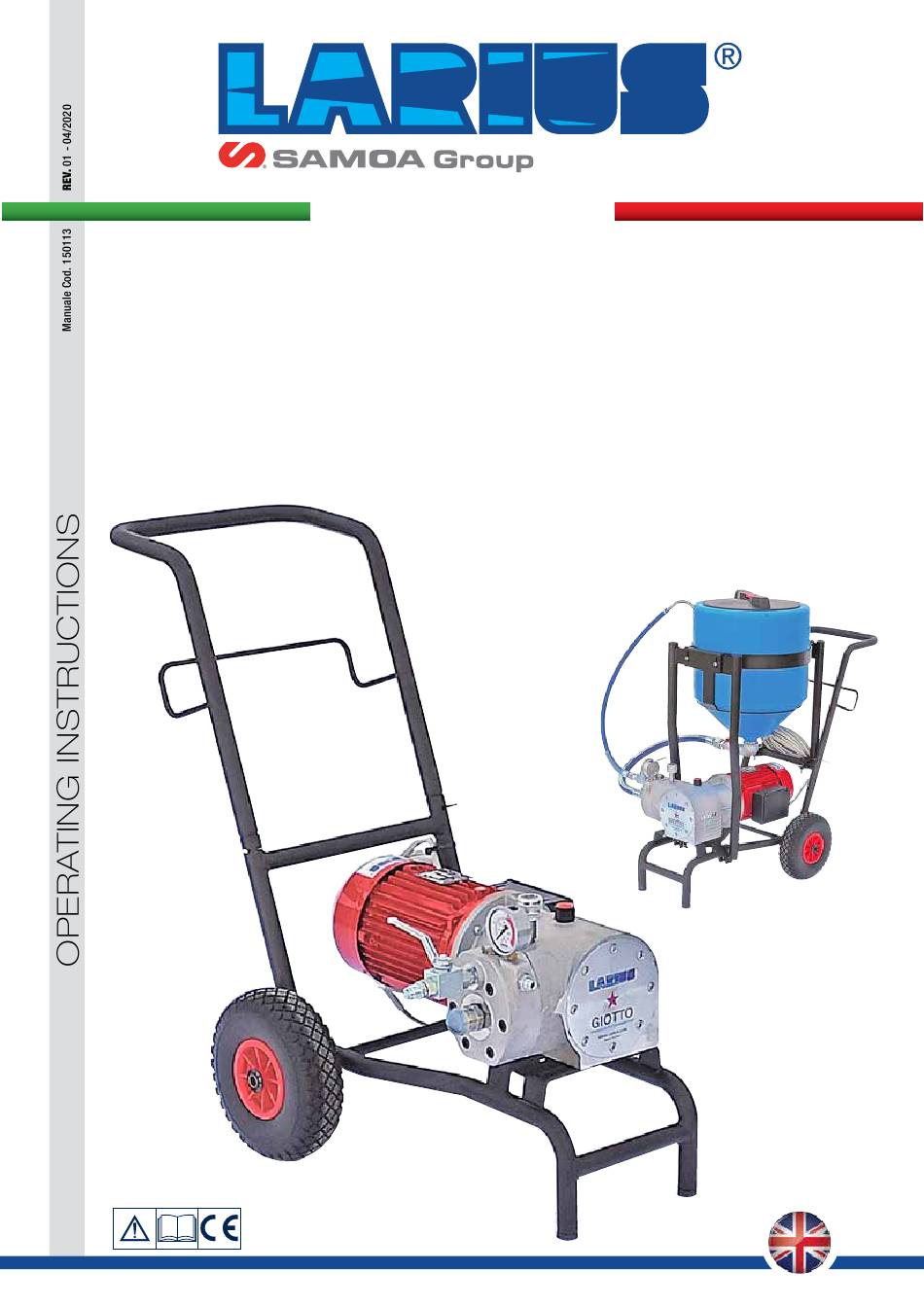

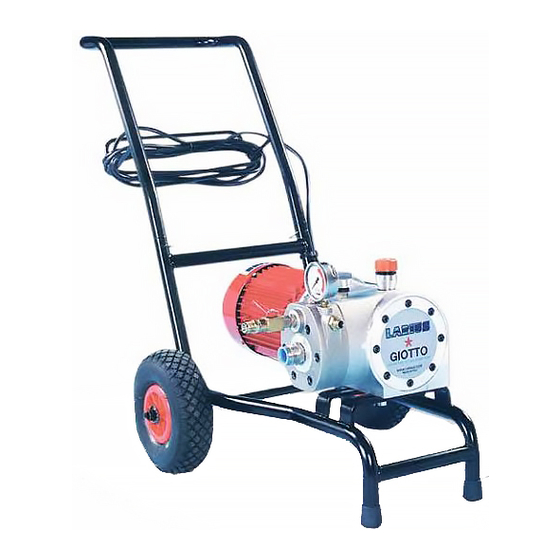

- Page 1 w w w . l a r i u s . c o m GIOTTO FOR SANITATION Giotto 220 V Code: SE9020 Giotto 110 V Code: SE9021 Giotto 220 V with gravity hopper 50 Lt. Code: SE9022 Giotto 110 V with gravity hopper 50 Lt. Code: SE9023 English...
- Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
-
Page 3: Table Of Contents
GIOTTO FOR SANITATION GIOTTO Electric diaphragm pump for sanitation WARNINGS ................................p. 4 USE ..................................p. 5 WORKING PRINCIPLE ............................p. 6 TECHNICAL DATA ..............................p. 6 DESCRIPTION OF THE EQUIPMENT ........................p. 7 TRANSPORT AND UNPACKING ........................... p. 9 CONDITIONS OF GUARANTEE .......................... -
Page 4: Awarnings
GIOTTO FOR SANITATION WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •... -
Page 5: Buse
GIOTTO FOR SANITATION SANITIZING FLUID APPLICATIONS ON: SANITIZING PRODUCTS SPRAYING EQUIPMENT The spraying of liquids under high pressure allows you covering • Office buildings, public bodies large surfaces with sanitizing agents, thus reducing the presence • Industrial sheds, factories, logistics centers of bacteria, fungi and viruses. -
Page 6: Cworking Principle
GIOTTO FOR SANITATION WORKING PRINCIPLE The LARIUS GIOTTO unit for sanitation is defined as an “electric When the diaphragm moves, it creates a vacuum. The product diaphragm pump”. An electric diaphragm pump is used for high is sucked up, pushed towards the pump outlet and sent to the pressure spraying without air (known as “airless”). -
Page 7: Edescription Of The Equipment
GIOTTO FOR SANITATION DESCRIPTION OF THE EQUIPMENT Pos. Description Pos. Description Carriage Hydraulic body Electric motor Recirculation Open/Close valve High pressure manometer Recirculation pipe delivery connection Setting valve Recirculation tube Hydraulic oil filling cap Product suction tube connection NOTE The machine is supplied only with the recirculation pipe. As for the accessories supplied, see the specific chapter. - Page 8 GIOTTO FOR SANITATION Gravity hopper version 50 Lt. Pos. Description Pos. Description Recirculation tube PVC tank 50 Lt. Product delivery pipe connection ON/OFF switch of the equipment Power supply cable NOTE The machine is supplied only with the recirculation pipe. As for the accessories supplied, see the specific chapter.
-
Page 9: Ftransport And Unpacking
GIOTTO FOR SANITATION TRANSPORT AND LIMITED 90-DAY WARRANTY UNPACKING • The packed parts should be handled as indicated in the Each LARIUS sanitizing sprayer is supported by symbols and markings on the outside of the packing. a 90-day warranty for the replacement of only •... - Page 10 GIOTTO FOR SANITATION • NEVER POINT THE SPRAY GUN AT YOURSELVES OR AT OTHER PEOPLE. THE CONTACT WITH THE CASTING CAN Take proper safety measures for the protection CAUSE SERIOUS INJURIES. of hearing in case of work near the plant. •...
-
Page 11: Isetting-Up
GIOTTO FOR SANITATION SETTING-UP Should anyone use an extension cable between the tooling and the socket, it must have the same CONNECTION OF THE FLEXIBLE HOSE TO THE GUN characteristics as the cable supplied (minimum diameter of the wire 2.5 mm ) with a maximum •... - Page 12 GIOTTO FOR SANITATION WASHING OF THE NEW EQUIPMENT • Make sure that the product recirculates from the tube and then close the recirculation valve. • The equipment has already been adjusted at our factory with • Point the gun at a container keeping the trigger pressed (so light mineral oil left inside the pumping group as protection.
-
Page 13: Jworking
GIOTTO FOR SANITATION WORKING Fig. 1J START OF THE SPRAY OPERATIONS • An irregular and marked spray on the sides indicates a low working pressure. On the contrary, a too high pressure • Use the tooling after performing all the SETTING UP ope- causes a high fog (“overspray”) and waste of product. -
Page 14: Kcleaning At The End Work
GIOTTO FOR SANITATION CLEANING AT THE END WORK • Close the re-circulation valve. • Point the gun at the product tank and, keeping the trigger • Reduce pressure to the minimum (turn counterclockwise the pressed, drain the residual product. Now, release the trigger. pressure control knob (K1) ). -
Page 15: Lroutine Maintenance
GIOTTO FOR SANITATION ROUTINE MAINTENANCE REPLACING HYDRAULIC OIL After operating for 100 hours, replace the oil in the pump; TOP UP HYDRAULIC OIL With each start up, check the hydraulic oil level by looking through • Discharge the waste oil through the hydraulic filter fitted the gauge on the side of the hydraulic body. -
Page 16: Nproblems And Solutions
GIOTTO FOR SANITATION PROBLEMS AND SOLUTIONS Problem Cause Solution The equipment does not start Lack of voltage Check the correct connection to the power supply Considerable drops in mains voltage Check the extension cable ON-OFF switch disconnected Ensure the ON-OFF switch is on the “ON”... -
Page 17: Ocorrect Procedure Of Decompression
GIOTTO FOR SANITATION CORRECT PROCEDURE OF DECOMPRESSION • Insert the gun clamp (O1). • Release the gun clamp (O4). Point the gun at the tank of the product and press the trigger to release pressure. At the end Move the ON/OFF switch (O2) to the OFF position (0) to stop •... -
Page 18: Pcomplete Hydraulic Body
GIOTTO FOR SANITATION COMPLETE HYDRAULIC BODY www.larius.com REV. 01 - 04/2020 - Cod. 150113... - Page 19 GIOTTO FOR SANITATION Pos. Code Description Pos. Code Description 12455 Hydraulic support 81014 12456 Hydraulic piston 81033 Washer 82019G Spring pad 95158 82021 Spring 32007 Oil level plug 82017 Cylinder liner 32006 Plug 82022 O-Ring 32012 O-Ring 82023 Spring housing Filter 82024 Elastic ring...
-
Page 20: Qcomplete Colour Body
GIOTTO FOR SANITATION COMPLETE COLOUR BODY www.larius.com REV. 01 - 04/2020 - Cod. 150113... - Page 21 GIOTTO FOR SANITATION Pos. Code Description Pos. Code Description 96099 Cylinder liner 83002/2 Oil distributor 33024 Self-tightening nut 83002/3 Spring 33023 Washer 83002/4 Sealing block 33022 Spring 83002 Complete diaphragm 33021 Shutter guide 33008 Manometer 33020 Suction valve body 33009 Washer 33019 Conical shutter...
-
Page 22: Relectric Motor
GIOTTO FOR SANITATION ELECTRIC MOTOR Pos. Code Description Pos. Code Description 81001 Electric motor 220V 50HZ 86004 Condenser 110V 81003 Electric motor 110V 60Hz 81012 Stud bolt 86003 Electic box 81033 Washer 86001 Condenser 220V 95158 www.larius.com REV. 01 - 04/2020 - Cod. 150113... -
Page 23: Scomplete Trolley Rif. 12355
GIOTTO FOR SANITATION COMPLETE TROLLEY RIF. 12355 Pos. Code Description Pos. Code Description 12454 Foot 84007 Split pin 12710 Trolley base 12711 Trolley handle 37218 Pneumatic wheel 12473 Plug 91047 Elastic washer 8043 www.larius.com REV. 01 - 04/2020 - Cod. 150113... -
Page 24: Tgravity Hopper 50L Giotto Rif. 18240
GIOTTO FOR SANITATION GRAVITY HOPPER 50L GIOTTO RIF. 18240 Ø 425 www.larius.com REV. 01 - 04/2020 - Cod. 150113... - Page 25 GIOTTO FOR SANITATION Pos. Code Description Pos. Code Description 18249/1 Cover 18223 Suction tube 85012 Filter 37406 Screw 18231 Gun extension filter 81032 Screw 18249 Gravity hopper 50 L 32024 Washer 20833 Elbow 52017 20817 Junction 37142 Plug 20825 Cock 18247 Short support 96098...
-
Page 26: Uaccessories
GIOTTO FOR SANITATION ACCESSORIES SUCTION SYSTEM SE9040 3350/1 SE9041 Code SE9040 Suction tube for 30 lt drums Code 3350/1 Suction tube for 200 lt drums Code SE9041 Suction tube for 1000 lt drums FILTERS MESH Code 85014 FILTER 40 MESH Code 85012 FILTER 20 MESH Code 37215... - Page 27 GIOTTO FOR SANITATION AT250 AIRLESS GUN for sanitation High pressure spraying gun, max 250 bars. It includes the spraying nozzle and the 1/4” swivel fitting to connect to the tube. Code SE9050 Connection BSPP 1/4’’ Nozzle SFC 13-60 Code SE9050/1 Connection BSPP 1/4’’ Nozzle TSC 90-40 AT250 PISTON GUNSTOCK FILTERS Code 11039 Green (30M)
- Page 28 GIOTTO FOR SANITATION SUPER FAST-CLEAN NOZZLE *Cod. Filter Ø inch Ø mm nozzle-angle recom. SFC07-20 0,007’’ 0,18 SFC07-40 200 M SFC09-20 0,009’’ 0,23 SFC09-40 SFC11-20 0,011’’ 0,28 SFC11-40 SFC13-20 SFC NOZZLE SUPER SFC13-40 0,013’’ 0,33 FAST-CLEAN SFC13-60 Yellow (see table) SFC15-20 100 M SFC15-40...
-
Page 29: Vpump For Sanitation
GIOTTO FOR SANITATION PUMP FOR SANITATION GHIBLI Cod. SE9000 ZEUS Cod. SE9010 110V Cod. SE9011 220V Cod. SE9012 Petrol DALÌ Cod. SE9030 with hose reel 50 Lt. Cod. SE9031 with hose reel 30 Lt. Cod. SE9032 50 Lt. Cod. SE9033 30 Lt. www.larius.com REV. -
Page 31: Declaration Of Conformity
GIOTTO FOR SANITATION DICHIARAZIONE DI CONFORMITA’ CE DECLARATION OF CONFORMITY Il fabbricante / Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Dichiara sotto la propria responsabilità che il prodotto: Declares under his owns resonsibility that the product: GIOTTO 220V - AC / 110V - AC è... - Page 32 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
