Summary of Contents for Samoa LARIUS PNEUMATIC HOIST 200

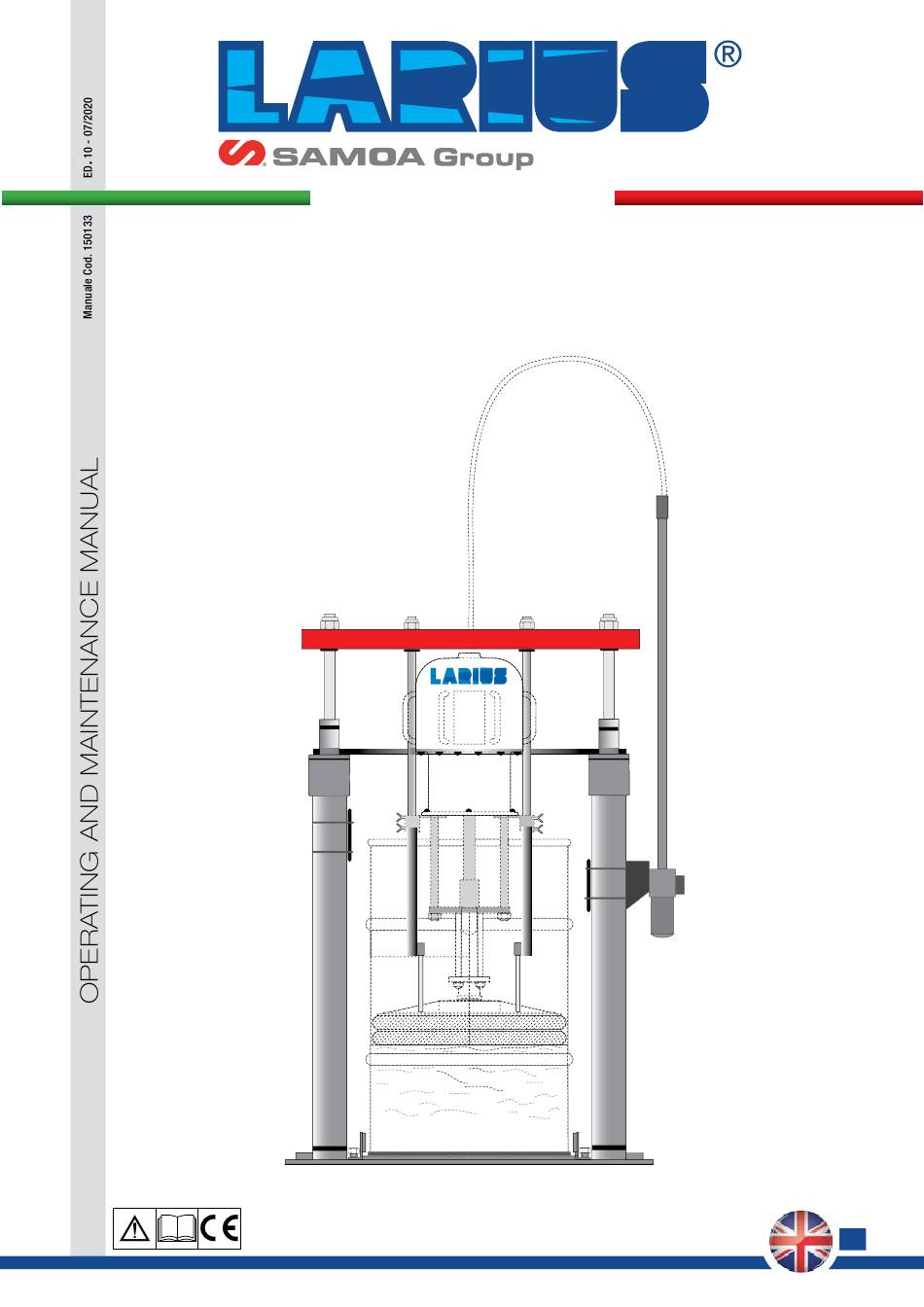

- Page 1 w w w . l a r i u s . c o m PNEUMATIC HOIST twin mast for 200 litres drums lever control...
- Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
-
Page 3: Table Of Contents
Pneumatic hoist twin mast for 200 litres PNEUMATIC HOIST twin mast for 200 litres drums lever control INDEX WARNINGS ..................................2 TRANSPORT AND UNPACKING ..........................3 CONDITIONS OF GUARANTEE ...........................3 SAFETY RULES ................................3 REFERENCE STANDARDS ............................5 DANGERS ..................................5 USE CORRECT ................................6 INSTALLATION ................................7 PNEUMATIC CONNECTION ............................9 PRINCIPLE OF OPERATION ............................10 TECHNICAL DATA ..............................11... -
Page 4: Awarnings
Pneumatic hoist twin mast for 200 litres WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. •... -
Page 5: Btransport And Unpacking
Pneumatic hoist twin mast for 200 litres TRANSPORT AND UNPACKING SAFETY RULES • The packed parts should be handled as indicated in the symbols Read carefully and entirely the following instructions and markings on the outside of the packing. before using the product. Please save these •... - Page 6 Pneumatic hoist twin mast for 200 litres • (IF PROVIDED) TIGHTEN AND CHECK ALL THE FITTINGS Never spray over flammable products or solvents FOR CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND in closed places. SPRAY GUN BEFORE USING THE EQUIPMENT. Never use the tooling in presence of potentially •...
-
Page 7: Ereference Standards
Pneumatic hoist twin mast for 200 litres REFERENCE STANDARDS • EN ISO 12100-1/-2 - Safety of machinery - General design The reference documentation for the design and manufacture of the equipment by the LARIUS company is as follows: principles - Risk assessment and risk reduction. •... -
Page 8: Guse Correct
Pneumatic hoist twin mast for 200 litres USE CORRECT • The drum must not be deformed or damaged. The mast hoist is suitable for work with metal drums of 200 liters. • The drum (G1) must be correctly positioned between the two columns (G2) and securely attached to the base plate using the clamps (G3). -
Page 9: Hinstallation
Pneumatic hoist twin mast for 200 litres INSTALLATION If you need to fix by using steel anchors for concrete and masonry • The depth of the holes drilled in the concrete of no importance you must follow the following procedures: for the expansion of the gusset and does not affect his estate provided that it is made of a puncture with minimum depth •... - Page 10 Pneumatic hoist twin mast for 200 litres The operator must arrange a suitable environment before installing it as we show below: • An area wide enough to allow the loading and unloading drum and routine maintenance. • Make sure there is sufficient space in height to allow lifting and easy access to the air control groups. •...
-
Page 11: Ipneumatic Connection
Pneumatic hoist twin mast for 200 litres PNEUMATIC CONNECTION Connect the hoist and pump to the pneumatic air supply as shown in the Figure. Make sure that the air is always clean and lubricated. Air delivery to the hoist Air delivery regulator for pump operation Air delivery to the pump... -
Page 12: Jprinciple Of Operation
Pneumatic hoist twin mast for 200 litres PRINCIPLE OF OPERATION This type of mast hoist to pneumatic elevation lift the pneumatic Pneumatic piston pumps are able to transfer highly viscous pro- piston transfer pumps LARIUS series Nova, Omega, Vega, Ghibli. ducts as these "flow"... -
Page 13: Ktechnical Data
Pneumatic hoist twin mast for 200 litres TECHNICAL DATA PNEUMATIC HOIST 200 Max air pressure 7 Bar Air inlet diameter 3/8" Weight 200 Kg Pressing plate Double gasket Cod. 510100 Ground fixing # 4 expansion bolts Stem type 200 litres Length (A) 910 mm - max 1260 mm 1535 mm (closed) -
Page 14: Ldescription Of The Equipment
Pneumatic hoist twin mast for 200 litres DESCRIPTION OF THE EQUIPMENT Power attack compressed air Fig. 1L Pos. Description Pos. Description Main pump air opening/closing valve Delivery hose for air pump Manual valve for pneumatic extrusion ram up/down Pump motor Pump air regulation valve Lifting cylinders Lifting cylinder pressure regulator... - Page 15 Pneumatic hoist twin mast for 200 litres Fig. 2L Pos. Description Pos. Description Lifting cylinder pressure regulator Product drum locking terminals Air intake regulator in the drum Holes for hoist securing Air intake valve for extraction Purge valve for pump priming Relief valve Pressing plate www.larius.com...
-
Page 16: Mprocedure For Inserting The Pressing Plate In The Drum
Pneumatic hoist twin mast for 200 litres PROCEDURE FOR INSERTING • Using the regulator (M3), gradually increase supply pressure to the pneumatic cylinder (M4) until lifting begins. Let the THE PRESSING PLATE hoist reach its maximum height. IN THE DRUM NOTE Follow instructions with care. - Page 17 Pneumatic hoist twin mast for 200 litres • Rotate the control lever (M2) downward until the pressing plate (M7) arrives near the edge of the drum. Fig. 9M Fig. 6M • Grease the pressing plate gasket (M7) and the internal surface of the drum.
- Page 18 Pneumatic hoist twin mast for 200 litres • Lower the pressing plate (M7) by turning the control lever Never under any circumstances plate hands (M2) downwards until the plate enters the drum and positions between the plate and the edge of the drum. itself on the product.
-
Page 19: Npump Priming Procedure
Pneumatic hoist twin mast for 200 litres PUMP PRIMING PROCEDURE • Open the vent valve (N1) of the pump. • Acting on the knob (N4) of the air regulator, increase the pump supply pressure up to the minimum value necessary for its operation. -
Page 20: Ooperation
Pneumatic hoist twin mast for 200 litres OPERATION • In case of difficulty in pump suction, slowly open the drain valve (O3) located on the pressing plate (O4) and close it when the product comes out of the drain item. •... -
Page 21: Pprocedure For Extraction The Pressing Plate In The Drum
Pneumatic hoist twin mast for 200 litres PROCEDURE FOR EXTRACTION • Open the air inlet valve (P5) in the drum. THE PRESSING PLATE IN THE DRUM To extract the pump and pressure plate from the frame, proceed as follows: • Move the control lever (P1) to the "Stop"... -
Page 22: Qroutine Maintenance
Pneumatic hoist twin mast for 200 litres ROUTINE MAINTENANCE • Periodically make sure that air supply remains clean and lubricated. • Periodically check the pressure plate gasket. • Follow the instructions given in the various component manuals. Always turn off the air supply and release pressure in the system before any maintenance or inspection of the pump. -
Page 23: Rproblems And Remedies
Pneumatic hoist twin mast for 200 litres PROBLEMS AND REMEDIES Problem Cause Solutions The hoist does not lift Hoist supply air is too low. Increase air pressure supply of the hoist. The two-way valve knob is not rotated Turn the knob upwards. upward. -
Page 24: Sauto Parts Auction
Pneumatic hoist twin mast for 200 litres AUTO PARTS AUCTION Fig. 1S Pos. Code Description Pos. Code Description 95013 510013/2 Top of the bottom 510013/1 Top locking bar 34009 Washer 510012 Pump support 81032 Screw 4108 510013/3 Plate fixing sleeve press 96031 Screw 32024... -
Page 25: Tupper Structure Parts
Pneumatic hoist twin mast for 200 litres UPPER STRUCTURE PARTS Fig. 1T Pos. Code Description Pos. Code Description 510018 Cross 5359 Attack 90° 4738 Screw 510049 "T" attack 81033 Washer 5546 attack 1/4 "d = 10 mm 510086 Rear bar 5356 Reduction M-F 96124... -
Page 26: Uspare Base Structure Parts
Pneumatic hoist twin mast for 200 litres SPARE BASE STRUCTURE PARTS Fig. 1U Pos. Code Description Pos. Code Description 510035 Clamp long 510036 Short Terminal 510049 "T" quick coupler 95153 Washer 5549 Fitting 1/4 "D = 10 mm 510037 Knob 5356 1/2 M reduction "-F/4"... -
Page 27: Vspare Air Group
Pneumatic hoist twin mast for 200 litres SPARE AIR GROUP Fig. 1V Pos. Code Description Pos. Code Description 3345 Regulator 95350+96259 FRL air treatment group 4004 Manual valve 30532 Double action valve www.larius.com ED. 10 - 07/2020 - Cod. 150133... -
Page 28: Wflat Disc Pressing
Pneumatic hoist twin mast for 200 litres FLAT DISC PRESSING Fig. 1W www.larius.com ED. 10 - 07/2020 - Cod. 150133... - Page 29 Pneumatic hoist twin mast for 200 litres Pos. Code Description Pos. Code Description 510702/1 Flat gaskets blowing 510053/3 Auction 510700 Flat disc pressing 510005 Upper Seal 5258 3/8-1/4 reduction 510006 Premianello disk 18573 Drain hose 510008 Ring 918571 Snap ring int. UNI7437-13 81083 Washer D10 12572...
-
Page 30: Xfrl Air Treatment Group With Gauge
Pneumatic hoist twin mast for 200 litres FRL AIR TREATMENT GROUP WITH GAUGE Fig. 1X Pos. Code Description Pos. Code Description 95090 Nipple 3/4 with. CIL 510102 Bracket 95313 3/4 ''-1 reduction 510103 Skid plate 510111 1 '' tube 32024 Washer D. -
Page 31: Ypneumatic Diagram
Pneumatic hoist twin mast for 200 litres PNEUMATIC DIAGRAM Fig. 1Y Pos. Description Pos. Description Air valve pressing plate Air supply Intake air regulator pressure plate Pump supply valve Hoist air regulator FRL group pump power Lifting / lowering lever hoist Pump Hoist cylinders Plate pressing... -
Page 33: Declaration Of Conformity
Pneumatic hoist twin mast for 200 litres DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: PNEUMATIC HOIST twin mast for 200 litres drums lever control complies with the directives:... - Page 34 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
