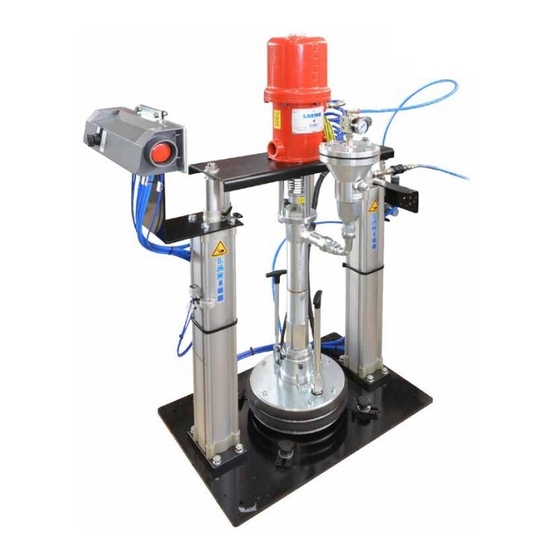

Twin mast for 30 litres drums bi-manual control heated plate flow regulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
Pneumatic Hoist
Twin Mast for 30 litres Drums
Bi-Manual Control
Heated plate
Flow regulator
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LARIUS PNEUMATIC HOIST 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Samoa LARIUS PNEUMATIC HOIST 30

Summary of Contents for Samoa LARIUS PNEUMATIC HOIST 30

  • Page 1 w w w . l a r i u s . c o m Pneumatic Hoist Twin Mast for 30 litres Drums Bi-Manual Control Heated plate Flow regulator English...
  • Page 2 PNEUMATIC HOIST 30 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    PNEUMATIC HOIST 30 PNEUMATIC HOIST Twin Mast for 30 litres Drums with Two-Hand Control WARNINGS ................................P.2 PRINCIPLE OF OPERATION ..........................P.3 TECHNICAL DATA ..............................P.4 EQUIPMENT DESCRIPTION ..........................P.5 TRANSPORT AND UNPACKAGING ........................P.9 SAFETY RULES ..............................P.9 CONDITIONS OF GUARANTEE ..........................P.10 DANGERS ................................

  • Page 4: Awarnings

    PNEUMATIC HOIST 30 WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 5: Principle Of Operation

    PNEUMATIC HOIST 30 PRINCIPLE OF OPERATION This type of mast hoist to pneumatic elevation lift the pneumatic Pneumatic piston pumps are able to transfer highly viscous piston transfer pumps LARIUS series Nova, Omega, Vega, Ghibli. products as these "flow" naturally towards the inlet pressure and The use of hoist allows you to drive the pump suction unit during the suction valve thanks to the plate to plate, so that the pump aspiration produced directly within 30 litres drums.

  • Page 6: Ctechnical Data

    PNEUMATIC HOIST 30 TECHNICAL DATA PNEUMATIC HOIST 30 Max. air pressure 7 Bar Air inlet diameter 3/8" Weight 50 Kg Ground fixing N° 4 bulloni expansion bolts Type of drum 30 litre Length (A) 670 mm 770 mm (closed) (B) 1210 mm (open) Height 1580 mm (open with pump GHIBLI 26:1) 1700 mm (open with pump NOVA 55:1)

  • Page 7: Dequipment Description

    PNEUMATIC HOIST 30 EQUIPMENT DESCRIPTION Fig. 1D Pos. Description Pos. Description Lifting cylinder pressure regulator Air filter Follower plate air pressure regulator Manual main air valve Automatic follower plate air inlet valve (optional) Safety valve (optional) Manual follower plate air inlet valve Air pump delivery Pump air pressure regulator Air pump delivery solenoid valve or pneumatic valve...
  • Page 8 PNEUMATIC HOIST 30 NOTE Press simultaneously for up/down Down Fig. 2D Pos. Description Pos. Description Up-Down selector switch Bi-manual Up / Down control buttons www.larius.com ED. 01 - 01/2020...
  • Page 9 PNEUMATIC HOIST 30 Fig. 3D Pos. Description Pos. Description Drum end sensor Drum locking fasteners (optional) www.larius.com ED. 01 - 01/2020...
  • Page 10 PNEUMATIC HOIST 30 Fig. 4D Pos. Description Pos. Description Flow regulator Manual follower plate air inlet valve Air bleed Air delivery to follower plate www.larius.com ED. 01 - 01/2020...

  • Page 11: Etransport And Unpackaging

    PNEUMATIC HOIST 30 TRANSPORT AND Read carefully and entirely the following instructions UNPACKING before using the product. Please save these instructions in a safe place. • The packed parts should be handled as indicated in the The unauthorised tampering/replacement of one symbols and markings on the outside of the packing.

  • Page 12: Conditions Of Guarantee

    PNEUMATIC HOIST 30 DANGERS Always check that the product is compatible with the materials composing the equipment (pump, spray gun, flexible hose and accessories) with which MOVING PARTS OF EQUIPMENT it can come into contact. Never use paints or solvents containing Halogen Hydrocarbons (as All moving parts, such as the group of rising and the Methylene Chloride).

  • Page 13: Correct Use

    PNEUMATIC HOIST 30 CORRECT USE • The drum must not be deformed or damaged. The mast hoist is suitable for work with kegs of 30 liters. • The drum (I1) must be correctly positioned between the two columns (I2) and securely attached to the base plate using the clamps (I3).

  • Page 14: Fixing With Screw Anchors

    PNEUMATIC HOIST 30 FIXING WITH SCREW ANCHORS If you need to fix by using steel anchors for concrete and masonry • the depth of the holes drilled in the concrete of no importance you must follow the following procedures: for the expansion of the gusset and does not affect his estate provided that it is made of a puncture with minimum depth •...

  • Page 15: Air Treatment Unit Control

    PNEUMATIC HOIST 30 AIR TREATMENT UNIT CONTROL Periodically check the air supply line to the pump. Make sure that the air is always clean and lubricated. Fig. 1K • With the button in the center position the faucet is semi- •...

  • Page 16: Safety Rules

    PNEUMATIC HOIST 30 SAFETY RULES SETTINGS The operator must arrange a suitable environment before installing These instructions apply to the proper use of it as we show below: the hoist. Also, read the instructions contained • an area wide enough to allow the loading and unloading in the manual information of the different com- drum and routine maintenance.

  • Page 17: Procedure For Inserting The Follower Plate In The Drum

    PNEUMATIC HOIST 30 PROCEDURE FOR • During this operation, keep drum closing clamp (N2) loose so that they can auto-centre on the follower plate. INSERTING THE FOLLOWER PLATE IN THE DRUM NOTE Follow instructions with care. These operations must be carried out with the pump at a standstill by competent, trained personnel: shearing hazard.
  • Page 18 PNEUMATIC HOIST 30 • Close the drum fastener (N4). • Set the bi-manual control lever to “DOWN”. DOWN WORK Fig. 6N WORK • Lower the plate by simultaneously pressing the two-hand control buttons until the plate enters into the first part of the drum (1-2 cm.

  • Page 19: Procedure For Removing The Follower Plate From The Drum

    PNEUMATIC HOIST 30 PROCEDURE FOR The follower plate may suddenly come out when removing it from the drum: REMOVING THE BE CAREFUL - KEEP HANDS AND HEAD AWAY FOLLOWER PLATE FROM FROM MOVING MACHINE PARTS. THE DRUM KEEP IN MIND THAT THE EXTRUSION RAM IS ALWAYS HAND PUSH.

  • Page 20: Sensor Positioning

    PNEUMATIC HOIST 30 SENSOR POSITIONING • Open the air inlet valve of the drum (O4). The hoist is equipped with a magnetic sensor (P1), positioned on one of the two cylinders (P2). When the cylinder passes over the sensor, the descent thrust becomes automatic, excluding the two-hand control.
  • Page 21 PNEUMATIC HOIST 30 • Set the selector to “DOWN”. Using the two-hand control • Now, sliding the sensor (P6) on the cylinder in correspondence (P4), position the pump at the height at which you want the with the magnetic component that is located within, this will sensor to intervene and leave the selector on the “DOWN”...

  • Page 22: Ordinary Maintenance

    PNEUMATIC HOIST 30 ORDINARY MAINTENANCE • Periodically check the air supply that is always clean and Always turn off the air supply and release lubricated. pressure in the system before any maintenance • Periodically check the follower plate gasket. or inspection of the pump. •...

  • Page 23: Spare Parts Columns Top

    PNEUMATIC HOIST 30 SPARE PARTS COLUMNS TOP Fig. 1S Pos. Code Description Pos. Code Description 510101 Pump mounting bracket 510412 Cylinder + base + screws 510096 Bushing 28738 Washer D20 www.larius.com ED. 01 - 01/2020...

  • Page 24: Spare Parts Base

    PNEUMATIC HOIST 30 SPARE PARTS BASE Fig. 1T Pos. Code Description Pos. Code Description 510091 Base plate hoist 3/8 hose quick coupler D10 5390 510036 Clamp Schnor washer D10 33005 Washer D8 Flat washer D10 95153 81033 510037 Lobe handwheel M8 Nut M10 95158 Elbow 3/8 hose D10...

  • Page 25: Spare Parts Air Unit

    PNEUMATIC HOIST 30 SPARE PARTS AIR UNIT Fig. 1U Pos. Code Description Pos. Code Description 3344 Lifting cylinder pressure regulator 22057 Slide valve 3/3 3344 Follower plate air pressure regulator ON/OFF Flow regulator Manual follower plate air inlet valve 91107 Pump pression regulator www.larius.com ED.

  • Page 26: Spare Parts Bi-Manual Control

    PNEUMATIC HOIST 30 SPARE PARTS BI-MANUAL CONTROL Fig. 1V Pos. Code Description 5100011 Bi-manual control www.larius.com ED. 01 - 01/2020...

  • Page 27: Pneumatic Diagram

    PNEUMATIC HOIST 30 PNEUMATIC DIAGRAM DRUKLUFT VERSORGUNG HUBZYLINDERN BESCHREIBUNG HERTSTELLER ARTIKELKODE POS. ZWEI-HAENDE BETAETIGTES STEUERWERK DRUKLUFT VERSORGUNG FILTER UND REGLER MIT MANOMETER PSERVICE 4682005 1 - VERSORGUNG DRUCKSENSOR (SCHLAUCH D.4 MM) 2 - RETURN-SIGNAL VON DRUCKSENSOR (SCHLAUCH D.4 MM) REGLER MIT MANOMETER PSERVIVE 5207003 3 - VERSORGUNG ABWARTSFAHREN (SCHLAUCH D.8 MM)
