WATTrouter ECO - user manual

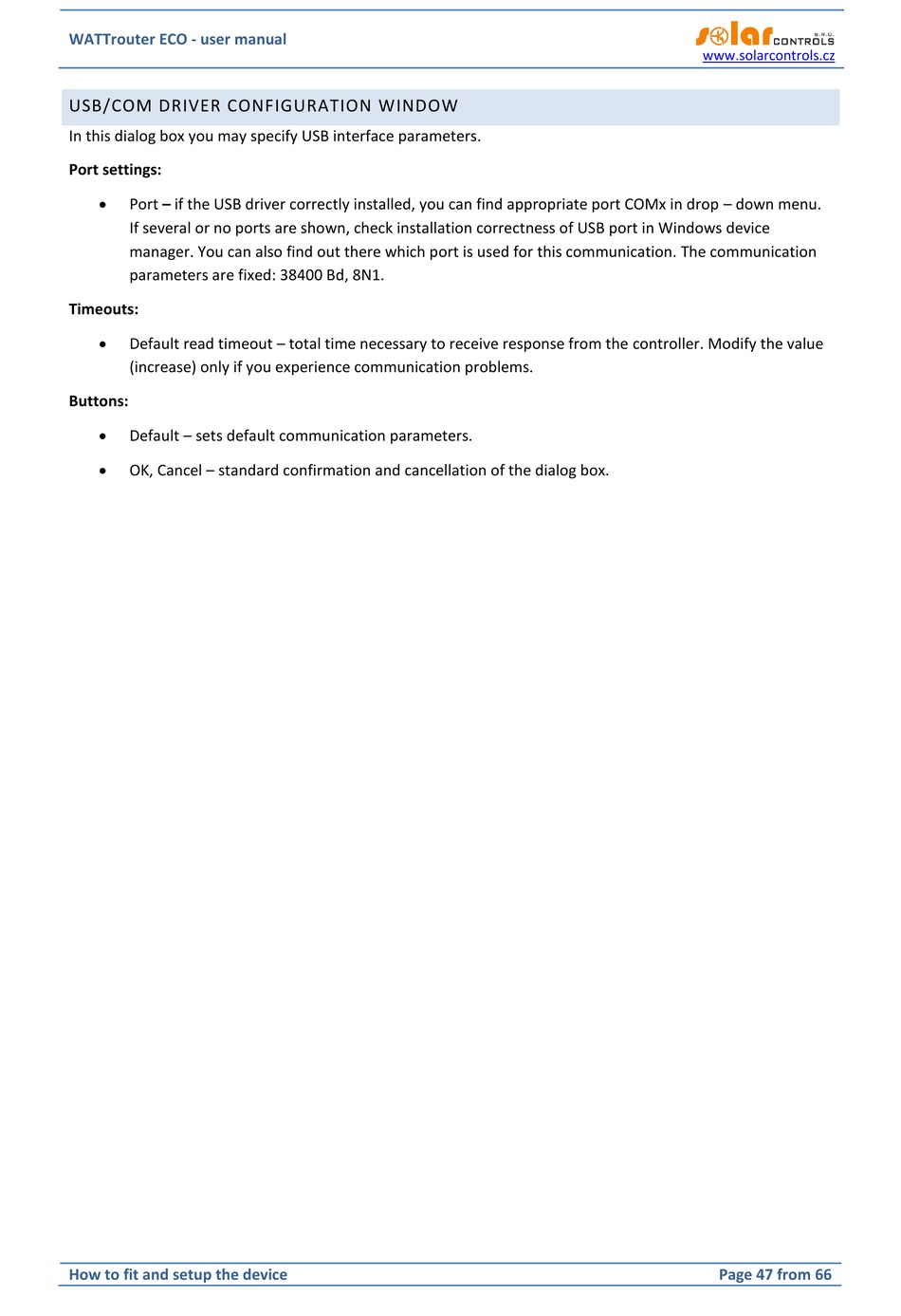

USB/COM DRIVER CONFIGURATION WINDOW

In this dialog box you may specify USB interface parameters.
Port settings:

Port – if the USB driver correctly installed, you can find appropriate port COMx in drop – down menu.
If several or no ports are shown, check installation correctness of USB port in Windows device
manager. You can also find out there which port is used for this communication. The communication
parameters are fixed: 38400 Bd, 8N1.
Timeouts:

Default read timeout – total time necessary to receive response from the controller. Modify the value
(increase) only if you experience communication problems.
Buttons:

Default – sets default communication parameters.

OK, Cancel – standard confirmation and cancellation of the dialog box.
