INSERTING THE SC-ROUTER MODULE

Insert the module to the controller identically as module SC-Gateway.
When equipped with this module, firmware and WATTconfig version 1.2 and later automatically set the
controller to a remote control mode (RC module). In this mode only the outputs operate. Leave all inputs
unconnected. The outputs switch according to requirements of the master system (e.g. another WATTrouter
ECO module fitted with SC-Gateway module) using wireless communication. The control SW WATTconfig looks

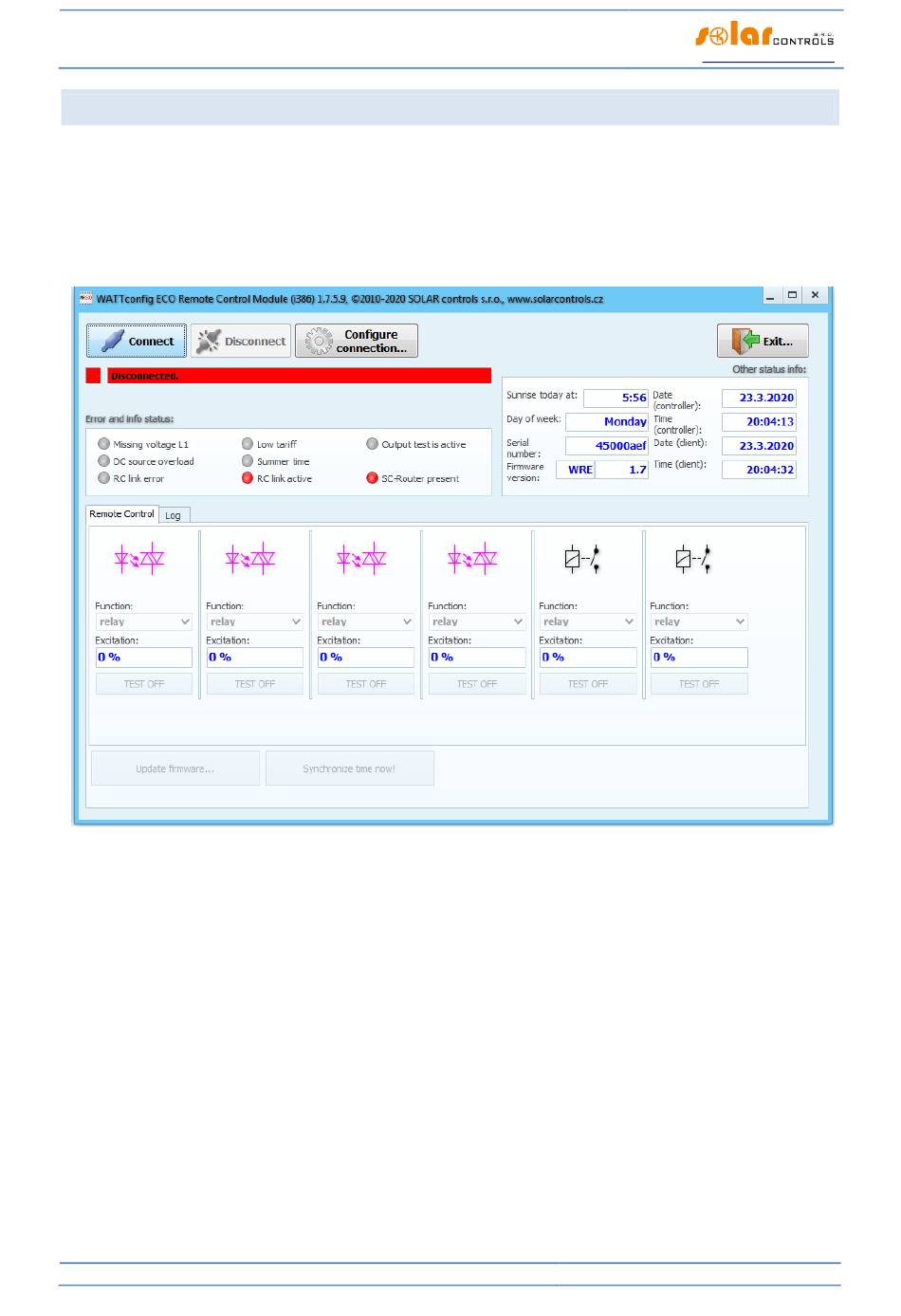

then like this:
Using this interface, you can monitor the excitation percentage of individual outputs depending on the settings
in the master system.
It also supports the TEST buttons to test the functionality of local outputs and the firmware update feature.
The RC link active icon indicates an active connection to the master system.
If no connection is active, the icon disappears and the red LED is blinking, see Chapter. LED states.
After removing the module SC-Router the unit behaves classically again.
Note: Proportional control of resistive loads is 4x slower for wireless outputs than for wired outputs. The reason
is a slower response of the wireless system.
