WATTrouter ECO - user manual

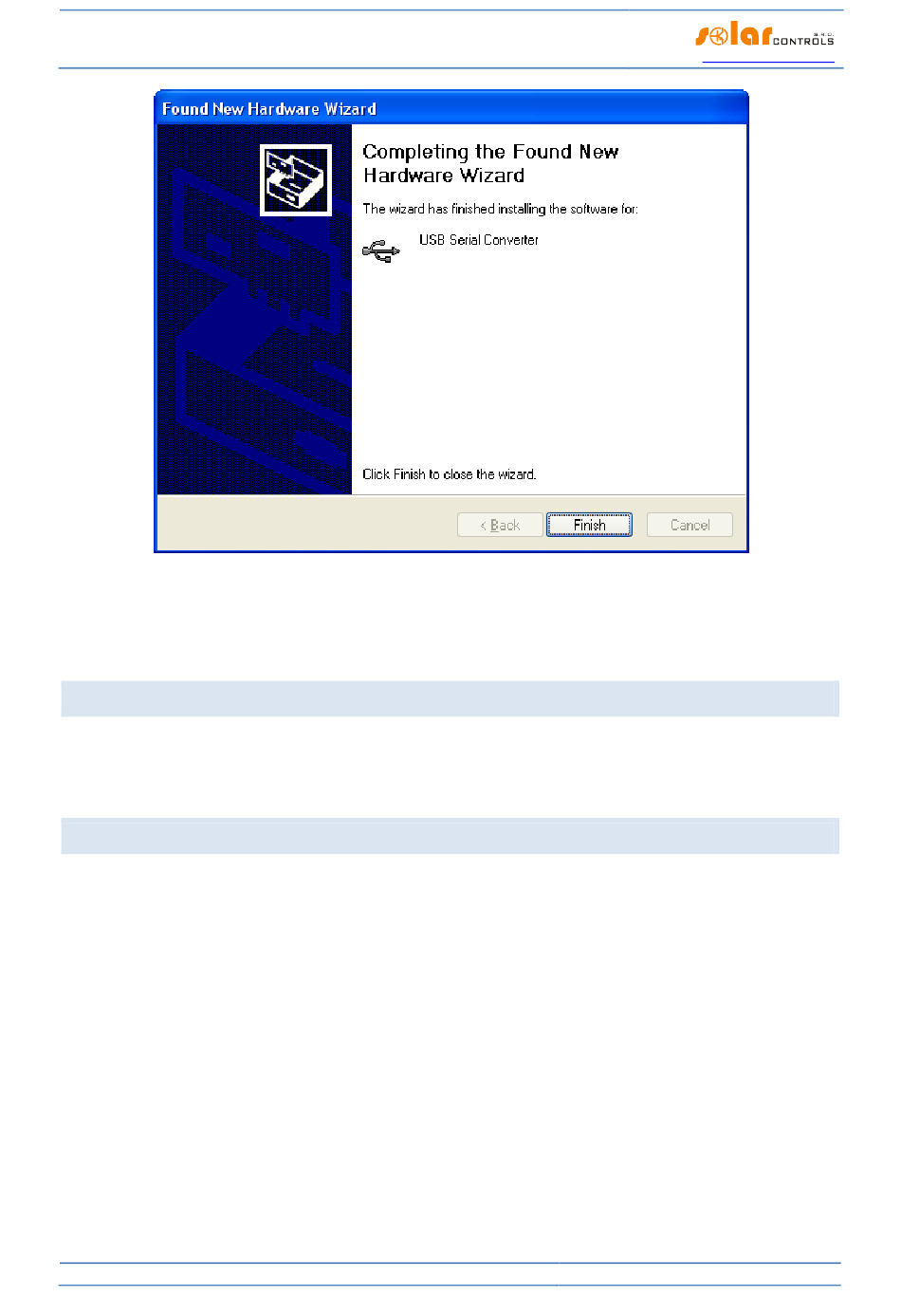

7. During the installation there might appear a warning about an invalid digital driver signature. Just
ignore it. The device is registered in your system device manager as USB serial converter (menu
Universal Serial Bus Controllers)
8. You must perform the same installation process for the second USB serial port device.

WATTCONFIG ECO CONTROL SOFTWARE INSTALLATION

1. Turn on the PC.
2. Run WATTconfig_ECO_Setup_x86_64.exe which you may download from manufacturer's web pages.
3. Follow the on-screen instructions.

SETTING UP MAIN FUNCTION

1. Click on START button in your PC and run the WATTconfig ECO control software. The system will
display the main software window.
2. Make sure that the controller is turned on and connected to your computer. Make sure that USB
interface driver is correctly installed.
3. Select correct port for connection. This can be done in the dropdown menu Port in Serial port driver
configuration window, which will show up by clicking on button Configure connection.
Note: Unlike WATTrouter CWx or WATTrouter M devices the WATTrouter ECO uses a serial port connection
(COMx). This port is always virtual port because the controller is connected via USB. Once more ports are
displayed, it is necessary to check in Windows device manager, which port is assigned to USB Serial Port.
4. Click on the Connect button. The controller should be connected now and the connection indicator (a
stripe) should be displayed in green. If it is not, and the system displays an error message, wait until
the USB driver is ready for use in your PC or inspect the settings in USB/COM port driver configuration
window. This window will be displayed by pressing Configure connection button.
How to fit and setup the device
