Summary of Contents for MasterCraft SC20IFDB

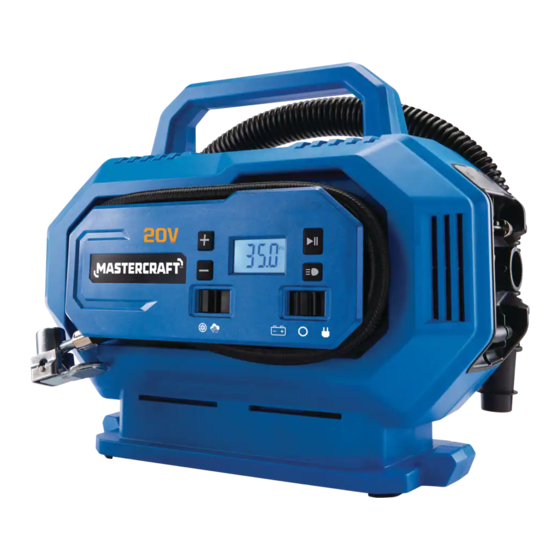

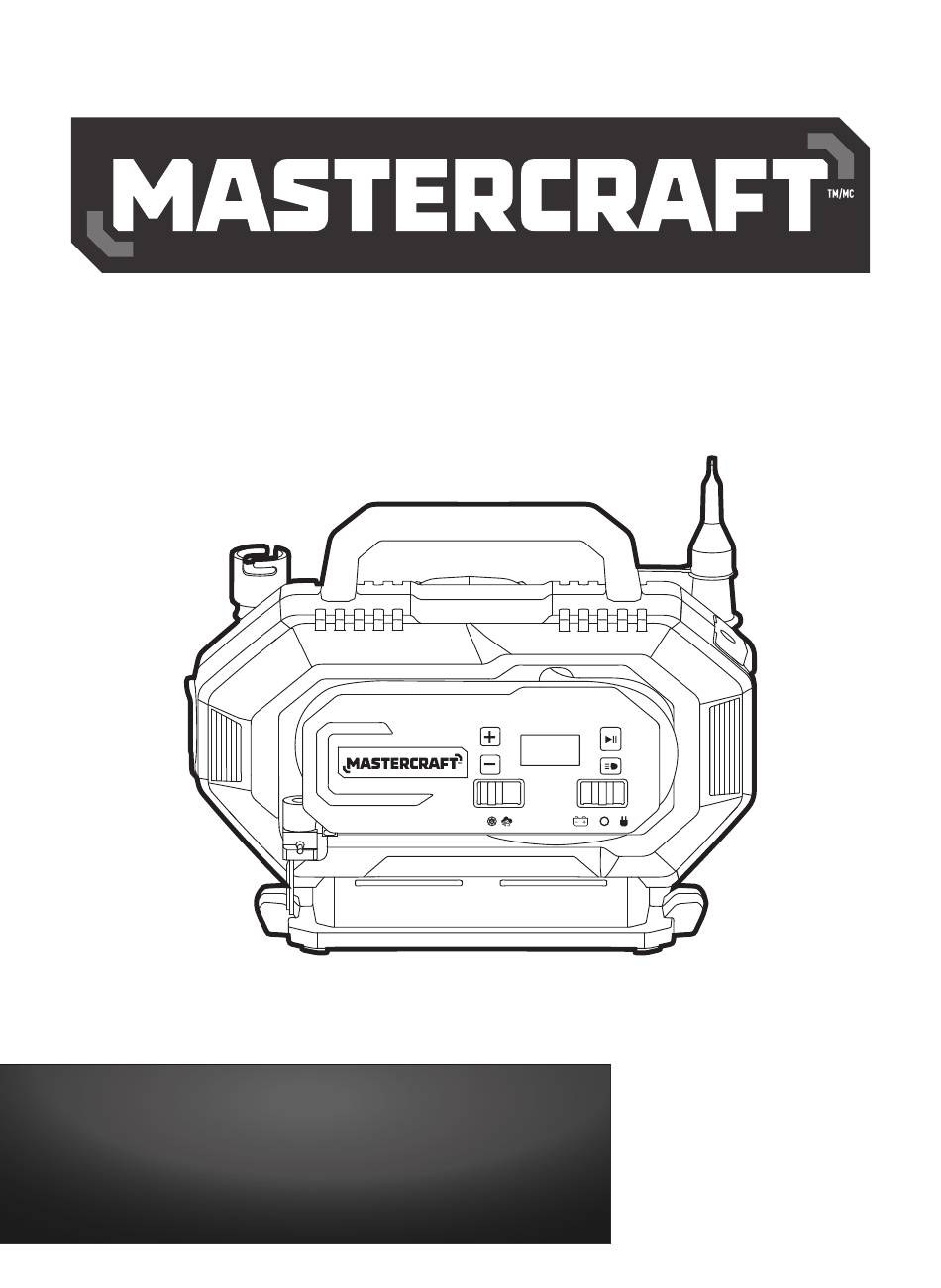

- Page 1 CONVERTIBLE BOX INFLATOR 054-2436-4 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
*Maximum battery voltage without workload; with workload nominal voltage is 18V. Recommend using tool with Mastercraft 20V max* Lithium-ion 4.0 Ah battery (054-7557-6; sold ® separately) and higher capacity batteries for optimal performance. notes... -
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools.
- Page 7 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. POWER TOOL USE AND CARE • Do not force the power tool.
- Page 8 headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 • Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. •...
- Page 9 Do not change the plug in any way. WARNING! To reduce the risk of electric shock or damage to the charger and battery, use only the Mastercraft batteries and chargers listed. ®...
-
Page 10: Key Parts Diagram
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 PACKAGE CONTENTS: Inflator, 1 presta valve adaptor, 1 ball needle adaptor, 1 pinch valve adaptor, 1 low pressure hose and instruction manual KEY PARTS DIAGRAM continuation tabs continuation tabs... - Page 11 Description Description High pressure hose Light Tire inflator Ball needle adaptor - Button Presta valve adaptor Pressure selector Pinch valve adaptor Power selector Low pressure air output Light switch Air intake On/off switch Low pressure hose + Button AC adaptor cap WARNING! •...
-
Page 12: Operating Instructions
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS fig 1 ATTACH THE BATTERY PACK (fig 1) 1. Align the raised rib on the battery pack with the grooves on the back side of the tool, then slide the battery pack onto the tool. - Page 13 INFLATING USING HIGH PRESSURE HOSE (INFLATOR FUNCTION) INFLATING CAR OR BICYCLE TIRES fig 4 (fig 4 - fig 5) Open 1. Remove the tire inflator and high pressure hose from its storage area. Lever Lock 2. CAR TIRES: Remove tire’s valve cap. Move tire inflator’s lever Tire inflator straight up and push it over tire’s valve stem.
- Page 14 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 INFLATING SMALL INFLATABLES (fig 6) fig 6 1. Remove the high pressure hose from its storage area. Pinch valve 2. Move tire inflator lever straight up and insert adaptor. adaptor Move the lever to the locked position.
-
Page 15: Maintenance
MAINTENANCE 1. Before each use, inspect the general condition of the tool. Check for: • leaking, swollen, or cracked battery pack, • loose hardware, • misalignment or binding of moving parts, • cracked or broken parts, • any other condition that may affect its safe operation. 2. -
Page 16: Troubleshooting
headline bars headline bars headline bars model no. 054-2436-4 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Solution Battery is depleted. Charge the battery. Tool is not connected to the Tool doesn’t work. Connect the tool to the power source. power source. -
Page 17: Parts List
EXPLODED VIEW No. Part No. Description No. Part No. Description 0542436401 Tapping Screw 0542436416 Pump Assembly 0542436402 Screw 0542436417 Floor Mat 0542436403 Tapping Screw 0542436418 Power Supply Board 0542436404 Left Guide Rail 0542436419 High Pressure Hose 0542436405 Battery Pack Pin 0542436420 Fan Assembly 0542436406 Right Guide Rail 0542436421 Extension Connector... -
Page 18: Warranty
054-2436-4 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 19 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8...
