Summary of Contents for SystemAir PRF

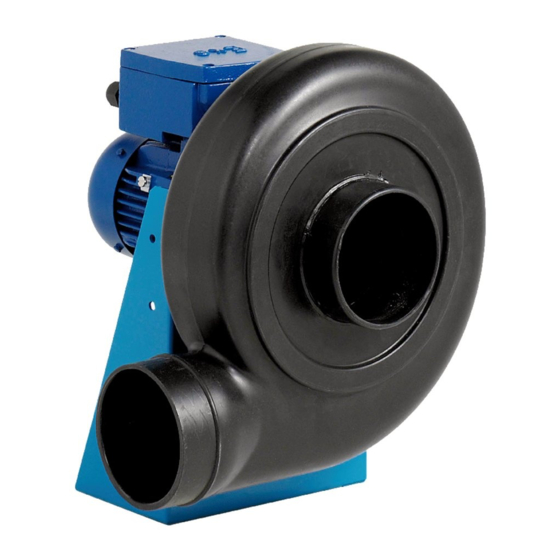

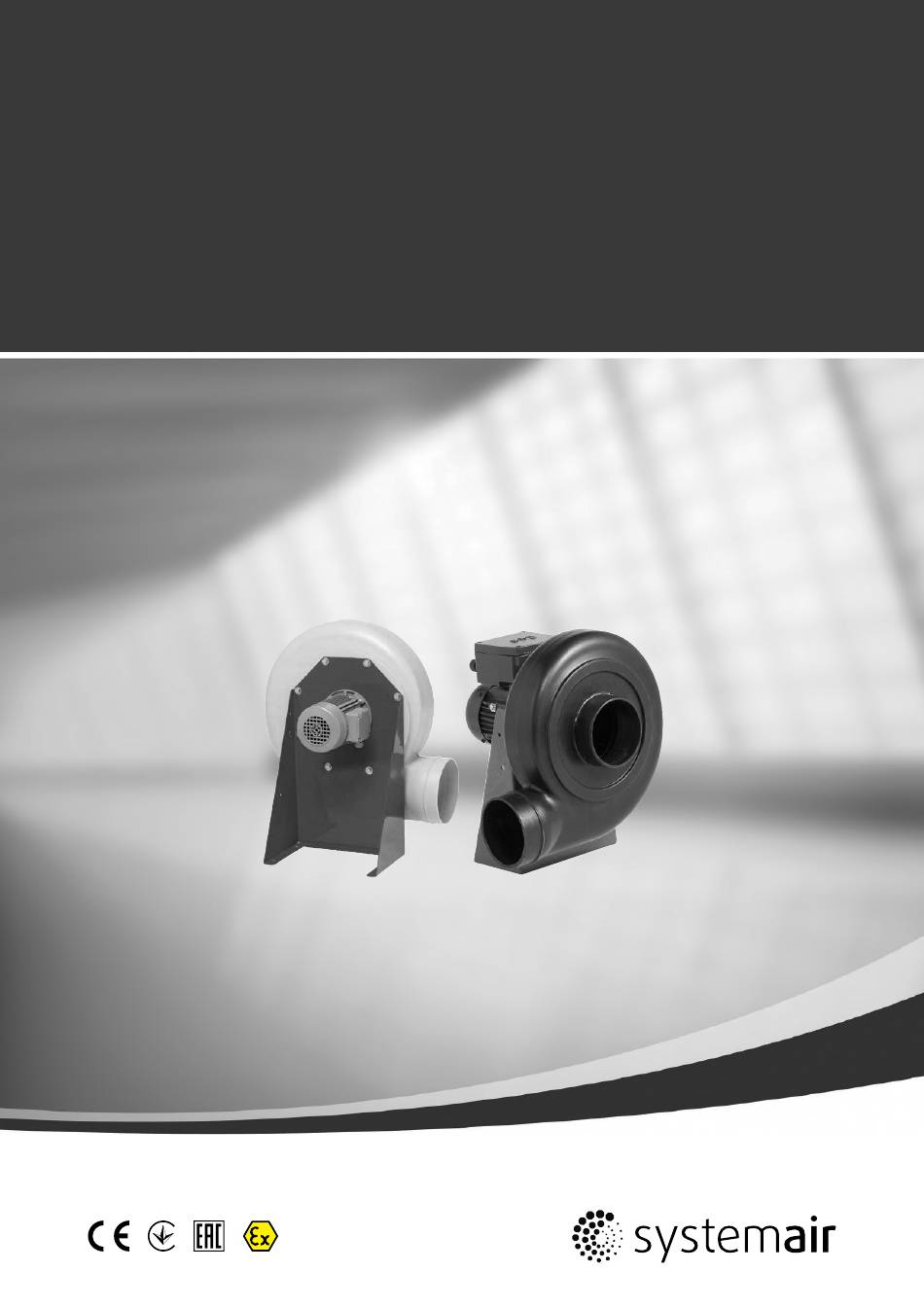

- Page 1 Plastic Fans — Industrial fans for “Aggressive Gases/ Vapours” PRF, PRF EX Installation and Operating Instructions Document in original language | · 008...
- Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. | 008...
-
Page 3: Table Of Contents
Contents General information .........1 15.1 Safety information........ 19 15.2 Procedure........... 19 Warning symbols ........1 16 Deinstallation/dismantling....... 19 1.1.1 Instruction symbols.....1 Information on the explosion-protection 17 Disposal ............19 devices ............1 18 Commissioning Report........20 Important safety information ......2 Personnel ..........3 Personal protective equipment....3 5 rules of electrical safety ......3 Warranty ............3... -
Page 5: General Information
These operating instructions and the fan name plate describe how to use the EX fans safely. ♦ Read the operating instructions completely and carefully. ♦ If used in potentially explosive atmospheres, examine the name plate. Only use type PRF-EX fans. Warning Protective clothing must be worn in potentially explosive atmospheres to reduce the risks to employee health. -
Page 6: Important Safety Information
| Important safety information Warning Regarding the choice of material, the EX fans fulfil the requirements of Standard DIN 14986 (Construction of fans for use in potentially explosive atmospheres) as a result of specific protection measures in areas of potential contact between rotating and stationary components (rotor/intake nozzle). A safety clearance to the intake nozzle is guaranteed for the rotating part. -
Page 7: Personnel
Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this document. The maintenance plan must be created by the operator, see section Maintenance. -
Page 8: Delivery, Transport, Storage
| Delivery, transport, storage Delivery, transport, storage Safety information Warning: Risk from rotating fan blades ♦ Prevent access by unauthorised persons by safety personnel or access protection. Warning: Suspended loads ♦ Do not walk under suspended loads. ♦ Make sure that there is nobody under a suspended load. Delivery Each fan leaves our plant in an electrically and mechanically proper condition. -
Page 9: Description
IIB and H² (only PRF-EX Ex d). PRF-EX Ex d has an IEC standard motor in an Ex d finish which can be controlled via a frequency inverter and has an added-on terminal box in an Ex e finish. Motor protection is via an integrated PTC resistor with connection to a motor protection switching device e.g. -
Page 10: Dimension
Examination of the media to be transported is a matter for the plant operator. Here, it is merely a question of a recommendation. Dimension Table 2 Dimensions [mm] ØD PRF, PRF EX 125 PRF, PRF EX 160 PRF, PRF EX 180 PRF, PRF EX 200 PRF, PRF EX 250 Minumum air gap The following table shows the minimum air gap between the rotor and the housing. -
Page 11: Name Plate And Type Key
Production number Table 3 Type key PRF EX d Ignition protection class Pressure-proof encapsulation Not classified (< 0.75KW or PRF EX) International efficiency class 2 International efficiency class 3 Motor type 2poled/controllable by frequency converter/3 phased 4 poled/controllable by frequency converter/3 phased... -
Page 12: Ex Key (Example)
| Name plate and type key Ex key (example) 0123 TPS 19 ATEX 085751 0005 X CE sign 0123 Notified office (quality assurance system) Device certified for Ex area Device group (here: use above ground) Device category and classification (G = gas; D = dust) Ex h Ignition protection class (constructive safety) Ex d... -
Page 13: Marking
Marking | Marking Table 4 Marking Designation Marking Device group II Classifi- All areas with explosion-capable atmosphere cation apart from mining, underground and above ground in cases of mien damp. Device „2G“ Category 2 / Zone 1 / high safety / Devices of category/ this category are intended for use in areas in classification... -
Page 14: Accessories
| Accessories Accessories Note: For details of the accessories, please check our online catalog or contact Systemair. Table 5 Accessories PRF, PRF EX VKA-P Adjust. damper Splinter protection Weather roof KIT ASS-P Flexible connection Vibration damper VKS-P Gravity shutter Drain plug 3/8"... -
Page 15: Installation
General safety information ♦ Fans installed in areas where personnel access regularly must be equipped with a splinter guard, please contact Systemair. ♦ Observe 3 Important safety information, page 2 ♦ Use installation material with fire resistance classes that meet temperature requirements. -
Page 16: Installation Positions
♦ Potentially, the fans may become charged with static electricity. If this represents a risk, please contact Systemair. Protective grounding wire The protective grounding must have a cross-section equal to or greater than that of the phase conductor. -
Page 17: Protecting The Motor
Electrical connection | 11.1 Protecting the motor Important Damage to motor due to overcurrent, overload or short circiut. ♦ Lead-out temperature monitors must be integrated in the control circuit in such a way that, if a fault occurs, the motor cannot switch on again automatically after it has cooled down. ♦... -
Page 18: Commissioning
| Commissioning Commissioning The system operator is responsible for the correct operation of the fan and/or the system! Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is provided. It is recommended to fill out the commissioning report 18 Commissioning Report, page 20. 12.1 Safety information ♦... -
Page 19: Operation
Operation | Operation 13.1 Safety information Danger Risk of ignition of a potentially explosive gas/air atmosphere! When commissioning the EX fan, the fundamental information from DGVU 113-001 (explosion protection rules (EX-RL)) and TRGS 727 (avoidance of risk of ignition as a result of electrostatic charges) must be known. -
Page 20: Troubleshooting/Maintenance/Repair
14.1 Troubleshooting Table 6 Troubleshooting Remedy Problem Possible causes Rebalancing by a specialist company if possible, Impeller imbalance otherwise contact Systemair. Soiling on the impeller Clean carefully, rebalance Material decomposition on the impeller due to aggressive Contact Systemair material conveyed. -
Page 21: Maintenance
Ambient temperature too high Check if the correct fan is used for your application. Note: For all other damage/defects, please contact Systemair. Defective safety-relevant fans (for Ex and smoke extraction applications) must be replaced completely. 14.2 Maintenance Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is provided. -
Page 22: Spare Parts
Check the flexible connectors for damage. See normal operating conditions 14.3 Spare parts ♦ Use original spare parts from Systemair only. ♦ When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate. Motor Flange plate... -
Page 23: Safety Information
Cleaning | Cleaning 15.1 Safety information ♦ Cleaning may only be carried out by adequately qualified persons, details see Table 1 Qualifications, page 3. ♦ Observe the 5 rules of electrical safety, see 3.3 5 rules of electrical safety, page 3. ♦... -
Page 24: Commissioning Report
| Commissioning Report Commissioning Report Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is provided. Description: Article no.: Manufacturing order no.: Installer Company: Contact person: Company address: Tel. no.: Email: Operator (Place of installation) Company: Contact person: Company address:... - Page 25 Commissioning Report | Fan impeller speed [rpm]: Current L1 [A]*: Current L2 [A]: “Air volume”, “Differential pressure” not necessary for Jet fans Air volume [m3/s]: Current L3 [A]: Differential pressure [Pa]*: *For single-phase fans, fill in line “Current L1 [A]” *Δ- Pressure between suction-side and discharge of the fan If an air flow measurement is not possible, this value can be calculated using the following formula: Flow speed [m/s]...
- Page 26 Systemair GmbH Seehöfer Str. 45 97944 Boxberg Germany Tel.: +49 (0)7930/9272-0 Fax: +49 (0)7930/9273-92 info@systemair.de www.systemair.de...
