ADDAC105 Assembly Guide

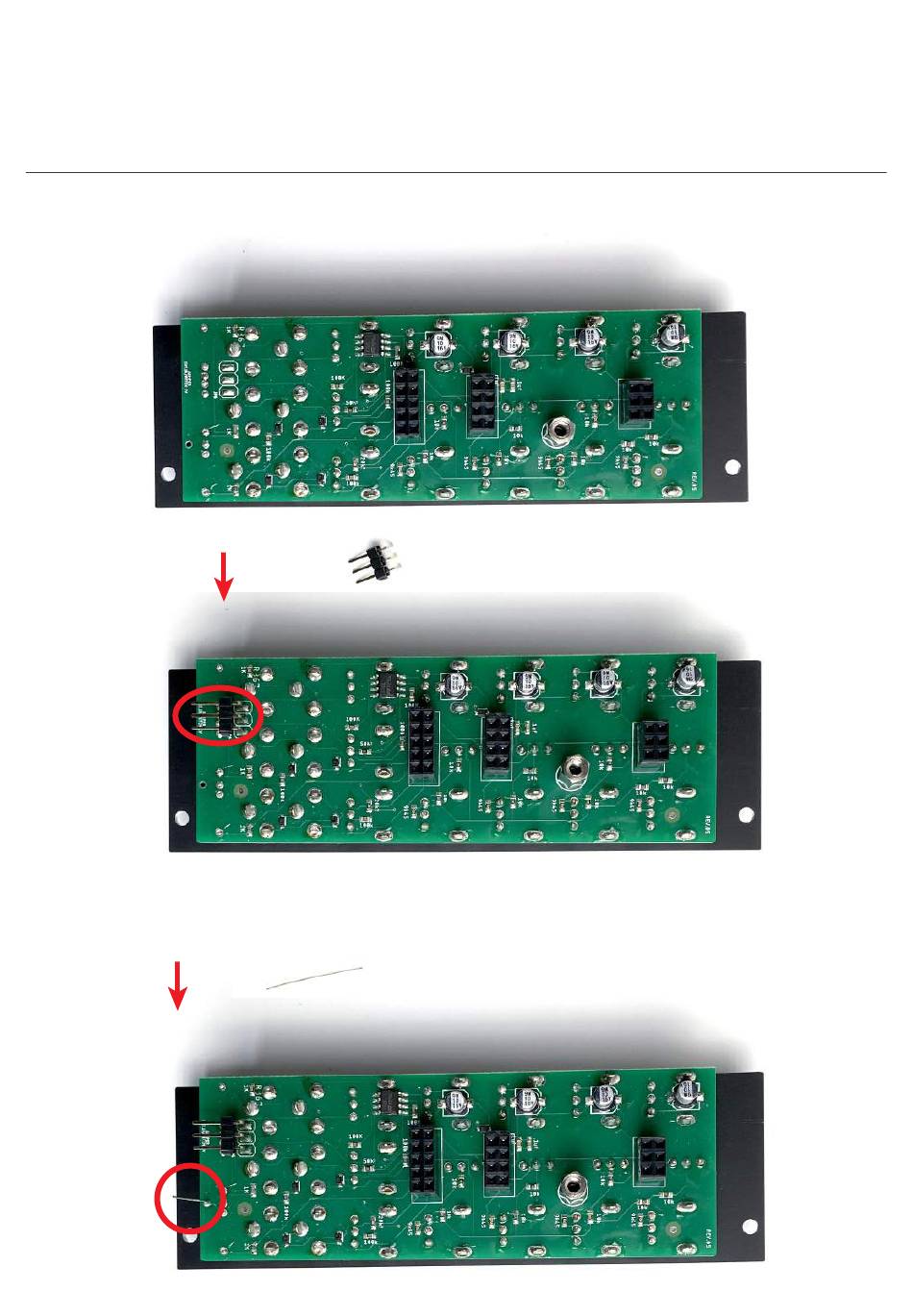

STEP 8:
Next locate and solder the 90 degree 3 pin header like shown below.
STEP 9:
Next locate and solder the loose wire flush to the pcb like shown below.
ADDAC SYSTEM
page 9
