ADDAC105 Assembly Guide
STEP 2:

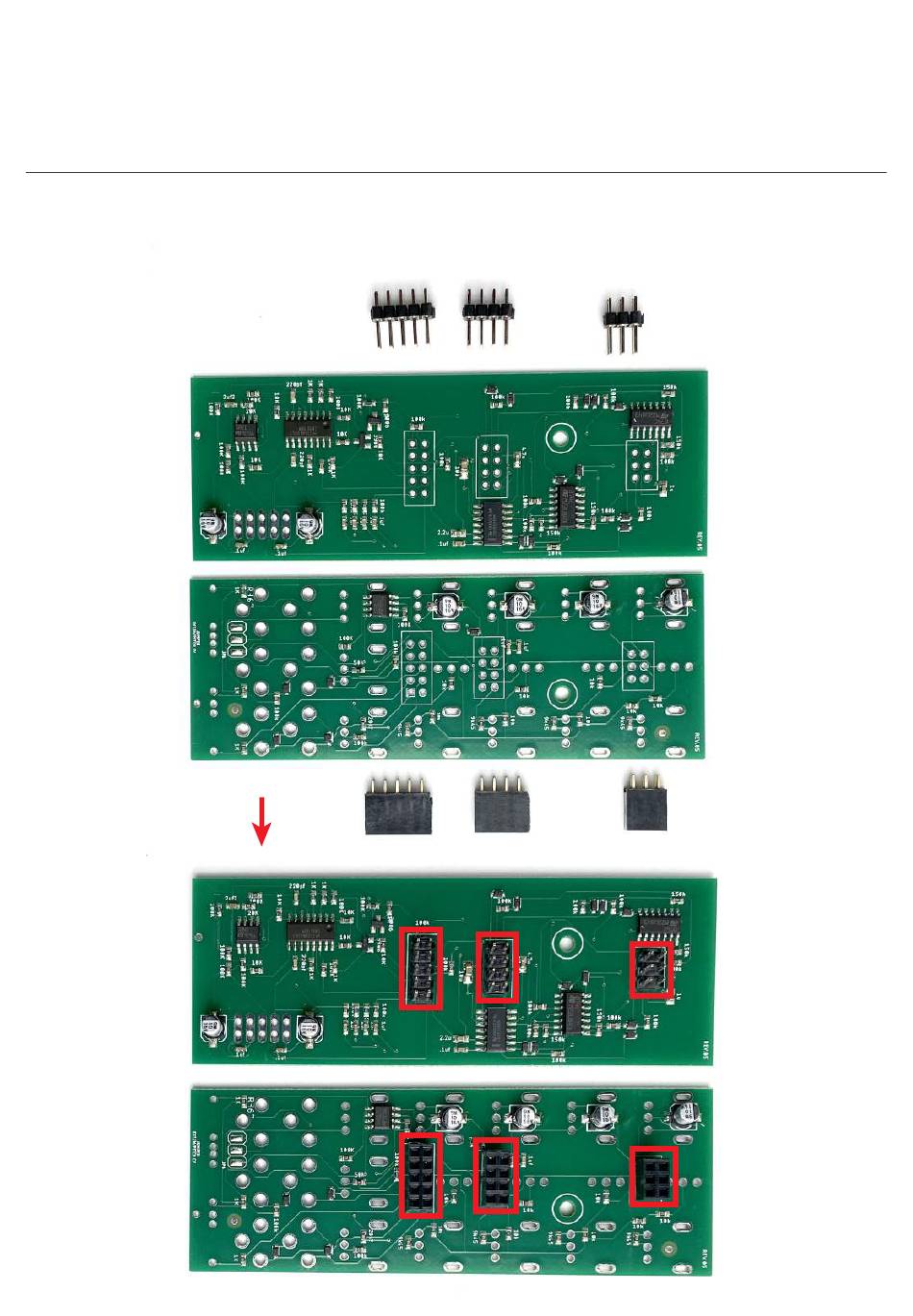

Next proceed to locate the male and female pinheaders and solder them like shown below.
ADDAC SYSTEM
page 4
