ADDAC105 Assembly Guide
STEP 1:

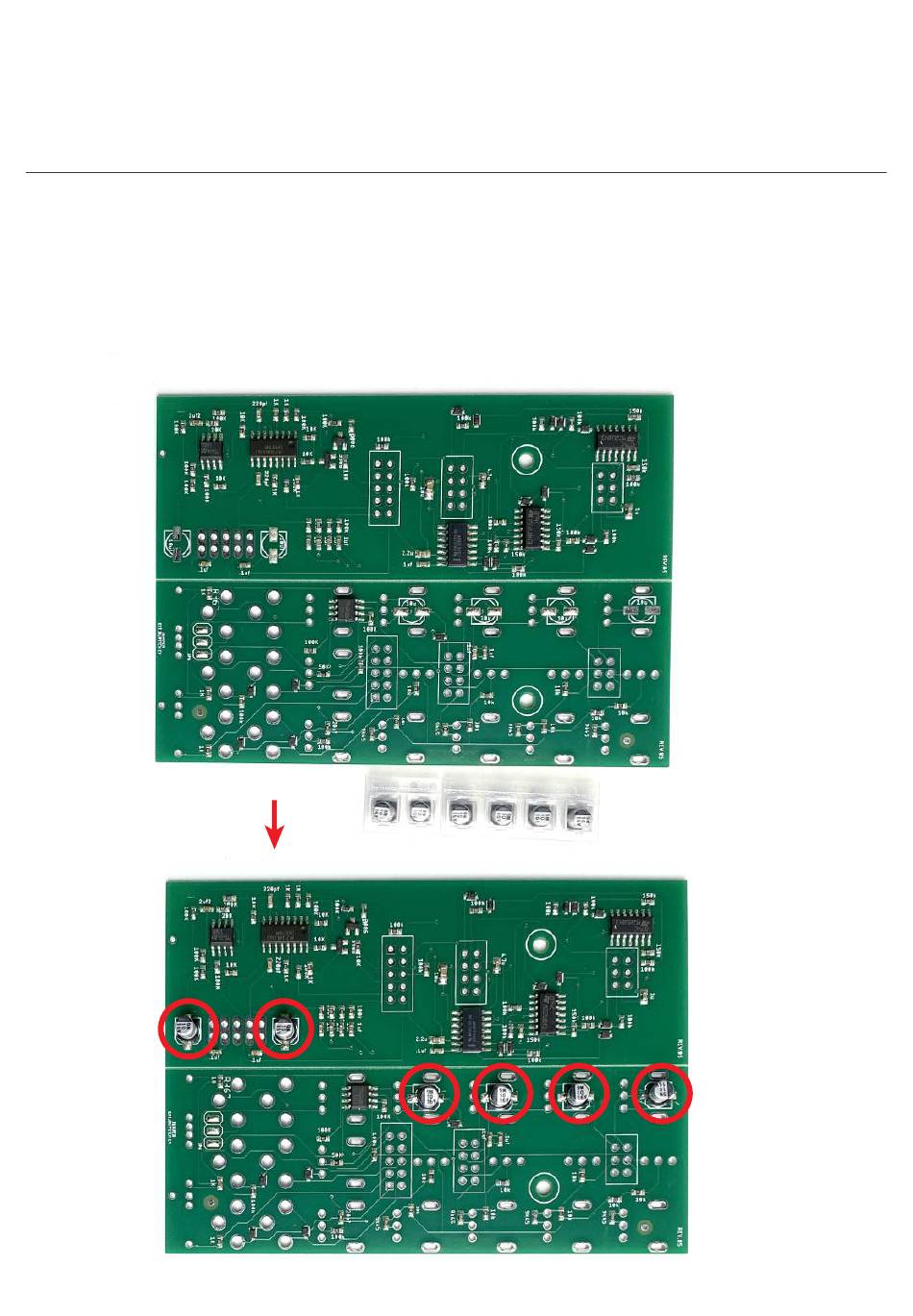

Start by locating all 6 10uF capacitors and solder them like shown below, notice the orientation on the
pcb.
Tip: soldering these caps is easy, just place a dab of solder on the pad on your right (left pad if you're
left handed) and then, with the help of a tweezer, put the capacitor in place and reflow the previously
tinned pad to reflow the solder while pushing the capacitor down. Then solder the other pad.
ADDAC SYSTEM
page 3
