Assembly Instruction
D-GZ842PCO-L (Black Top) / D-GZ842PCO-L1 (Faux Copper Top)
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start
to finish. The final product will be a quality piece that will go together smoothly and give years
of enjoyment. All you will need is a screwdriver, a hammer and two ladders (not included)
whose height is no less than 2.5m.
Note: THIS UNIT IS HEAVY!
Do NOT assemble this item alone for safety. Six people are necessary.
Item Identification: For ease of identification, all parts are labeled to correspond to the Step
number in which the part is used.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-GZ842PCO-L
Summary of Contents for Sunjoy D-GZ842PCO-L
- Page 1 Assembly Instruction D-GZ842PCO-L (Black Top) / D-GZ842PCO-L1 (Faux Copper Top) Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will go together smoothly and give years of enjoyment.
-
Page 2: Parts List
Parts List Gutter Corner cover Beam connector Arc support tube Post 1 Post 2 Baffle Centre hook Screen 1 Screen 2 Small beam 1 Small beam 2 Small beam 3 Small beam 4 Big roof cladding 1 Big roof cladding 2 Big roof cladding 3 Big roof trim cap Big roof beam... -
Page 3: Hardware Pack

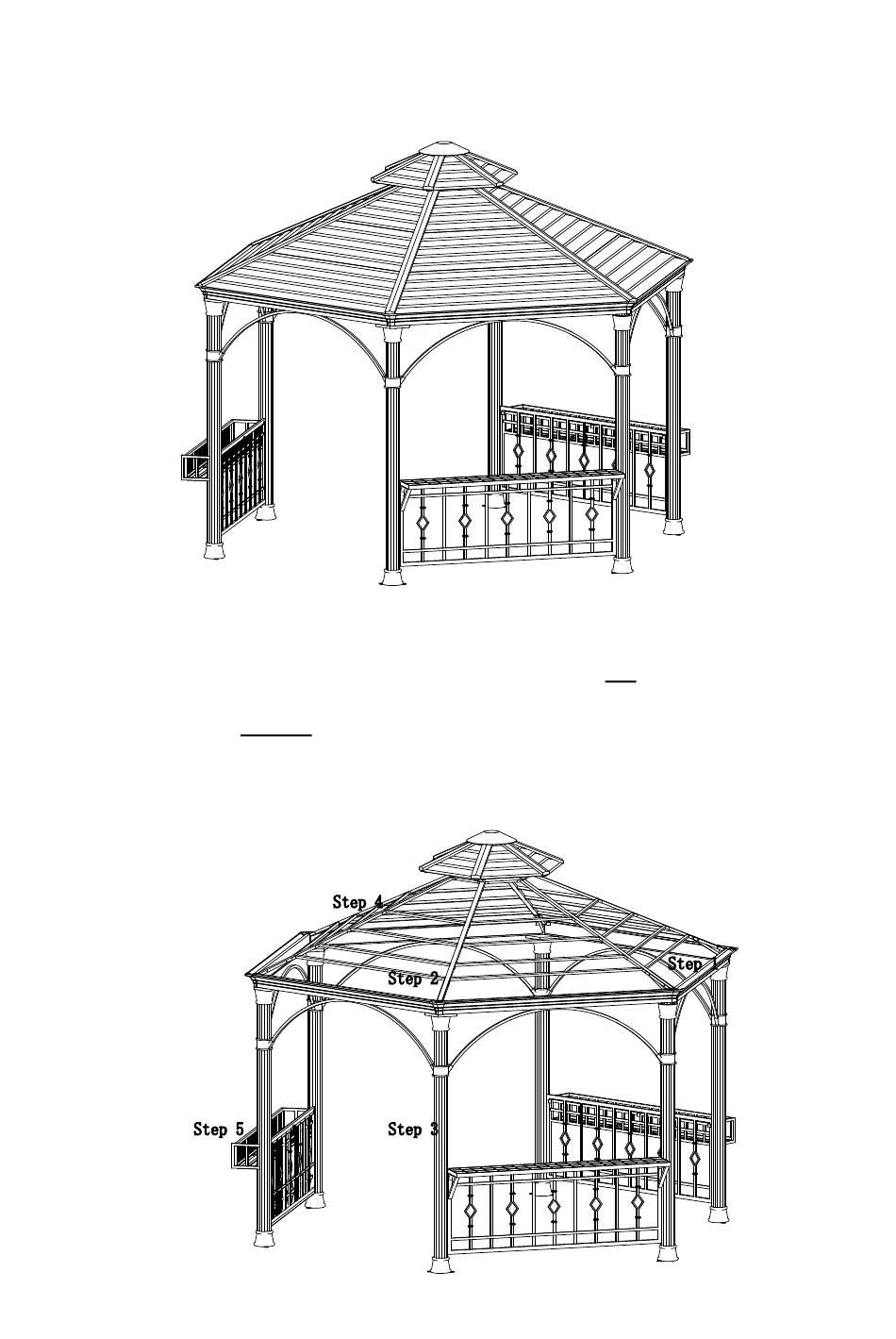

Roof connection Small roof bar Small roof cladding Small roof trim cap Second roof top connector Second roof cover Flower basket Basket side frame Slate top Slate top support Right-angle support Curtain tube Gutter connector Hardware Pack 1 M6 x 35 Bolt 6 PCS M6 Flat washer 48 PCS... - Page 4 Fig.1: Insert gutter connector (X) to gutters (A) and tighten with flat washer (BB) and bolt (CC) as showed in Fig.1. Fig.1-1: Attach the corner cover (A1) to the gutter connector (X) with bolt (AA) and flat washer (BB). Fig.2: Connect the beam connector (B) to the gutter (A) with bolt (CC) and flat washer (BB). Fig.2-1: Attach the curtain tube (W) to the gutter (A) using bolt (CC) and flat washer (BB).
- Page 5 Fig. 3: Connect the bottom of the big roof beam (K) and the beam connector (B) using screw (DD), flat washer (BB) and nut (FF). Fig. 4: Connect the top of the big roof beam (K) with roof connection (L) using bolt (CC) and flat washer (BB). Fig.
- Page 6 Fig. 8: Attach the small roof cladding (N) to the small roof bar (M) tighten with screw (GG) and flat washer (BB). Fig. 9: Attach the small roof trim cap (O) to the small roof bar (M) tighten with screw (DD) and flat washer (BB). Fig.10: Attach the second roof cover (Q) to the small roof using rounded nut (HH) and flat washer (II).
- Page 7 Fig.11: Attach the post 1 (D1) and post2 (D2) to the gutter (A) using bolt (CC) and flat washer (BB). Fig.12: Attach the baffle (E) to the gutter (A) using bolt (CC) and flat washer (BB). This step requires 4 people. Fig.13: Attach the screens (G1, G2) between post (D1) and post (D2), tighten with bolt (KK) and flat washer (BB).
- Page 8 Fig.16: Place the big roof cladding (I1, I2, I3) over the big roof structure and tighten the claddings to the big roof beam (K) using screw (GG) and flat washer (BB). Fig.17: Attach the big roof trim cap (J) to the big roof beam (K) using screw (DD) and flat washer (BB).
- Page 9 Fig. 18: Attach the basket side frames (S) to flower basket (R) and tighten with bolt (NN) and flat washer (BB). Fig. 19: Attach the assembled flower basket to screen 2 (G2). Fig. 20: Connect slate top support (U) post (D1) and slate top (T) using bolt (EE) and flat washer (BB). Fig.
- Page 10 This can be prevented if measure is taken to keep the product from oxidizing. Important: For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 PM EST Monday to Friday or fax the...
- Page 11 GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS Netting / Curatin is available separately Hardware Pack Hook 96pcs Fig. 1: Take off one end plug of curtain tube (W), insert hook (LL) into sliding chute, then cover sliding chute. Fig. 2: Attach curtain(Y) and Mosquito netting (Z) to curtain tube (W) with hook (LL).
