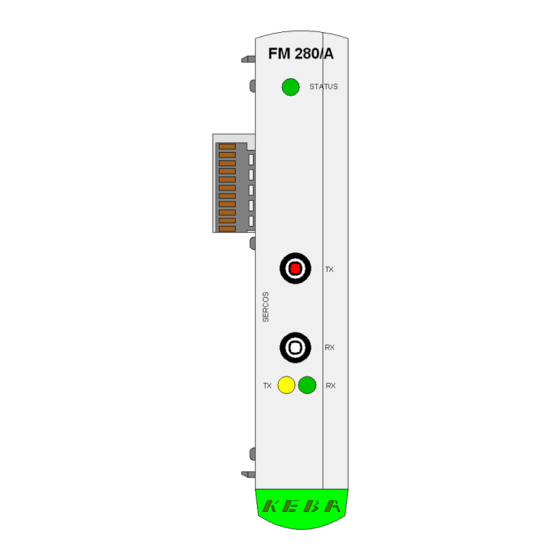

- Page 1 Kemro FM 280/A SERCOS II Interface Module Project engineering manual V1.02 Translation of the original instructions...
- Page 2 KEBA GmbH Automation, Leonhard-Weiss-Straße 40, D-73037 Göppingen, Tel.: +49 7161 9741-0, Fax: +49 7161 9741-40, E-Mail: keba@keba.com KEBA Corp., 100 West Big Beaver Road, Troy, MI 48084, US, Tel.: +1 248 526-0561, Fax: +1 248 526-0562, E-Mail: usa@keba.com Beijing Austrian KEBA Science and Technology Development Ltd., Room B516, Nan Xin Cang Tower, A22 Dong Si Shi Tiao, Dong Cheng District, Beijing, 100027, P.R.
- Page 3 Change in chapter Description changed by 1.00 11-2007 newly created. meis 1.01 08-2010 Declaration of con- updated hasl formity, Savety notes 1.02 08-2011 Introduction Hint "not for end customers" added, various minor up- fstl dates. Project engineering manual V1.02 © KEBA 2011...
-
Page 5: Table Of Contents
Environmental conditions..................20 SERCOS II Interface..................... 20 Dimensions......................20 10 EC directives and standards..................21 10.1 EC directives......................21 10.2 Standards......................21 10.2.1 General procedures and safety principles..........21 10.2.2 EMC guideline..................21 Project engineering manual V1.02 © KEBA 2011... - Page 6 10.2.3 Electrical safety and fire protection............21 10.2.4 Environmental and surrounding conditions..........21 10.3 Standards for the American market..............21 10.3.1 UL test for industrial control equipment..........21 11 Declaration of conformity....................22 Project engineering manual V1.02 © KEBA 2011...
-
Page 7: Introduction
Basic technical training (Vocational high school, engineering degree or corresponding professional experience). Knowledge in: ● working mode of a PLC, Service technician ● safety regulations, ● working mode of machine or plant, ● diagnosis possibilities, ● systematic error analysis and rectification. Project engineering manual V1.02 © KEBA 2011... -
Page 8: Intended Use
Name Target group ● Project engineer ● Electrician DE: 65352 ● Programmer K2-200 automation system manual EN: 65353 ● Commissioning foreman ● Service technician If you are using the KeStudio U3 tool suite: Project engineering manual V1.02 © KEBA 2011... - Page 9 FM 280/A Introduction Doc.No. Name Target group ● Project engineer ● Electrician DE: 1000868 System manual Kemro automation ● Programmer system EN: 1000869 ● Commissioning foreman ● Service technician Project engineering manual V1.02 © KEBA 2011...
-
Page 10: Safety Notes
It is absolutely essential to observe the safety instructions in the system manual. ● The module is defined as "open type equipment" (UL508) or as "offenes Betriebsmittel" (EN 61131-2) and must therefore be installed in a control cabinet. Project engineering manual V1.02 © KEBA 2011... - Page 11 Improper use of the assembly or the control system leads to irreparable dam- age! ● Turn off the power supply before inserting or removing the module. Other- wise, the module can be destroyed or undefined signal states can lead to damage of the control system. Project engineering manual V1.02 © KEBA 2011...
-
Page 12: Description Of The Module
General functionality of SERCOS The SERCOS module is activated via K-Bus on the CPU module. The gener- ated SERCOS frames are available for members on the optic waveguide interface (max. members: 254). Further information: www.sercos.de Project engineering manual V1.02 © KEBA 2011... - Page 13 The data are transmitted via optic waveguide technology (glass or plastic fiber cables), which offers the following advantages: ● Simple wiring ● Interference immune and fast data transfer Switchable data rate Two data rates can be set: ● 2 MBit/s ● 4 MBit/s Project engineering manual V1.02 © KEBA 2011...
-
Page 14: Operating Elements And Displays
LED is on: Ring circuit not closed, receiver signal interference error or ring not configured SERCOS-LEDs (TX and RX) Color Meaning Comment Yellow TX: Transmit LED is on: At transmission activity Green RX: Receive LED is on: On receipt of frames Project engineering manual V1.02 © KEBA 2011... -
Page 15: Connections And Wiring
... Receiver connection ... Transmitter connection Information It is only possible to use one FM 280/A per K-Bus row. The FM 280/A may only be connected with CP-Modules, not with bus link modules. Project engineering manual V1.02 © KEBA 2011... -
Page 16: Cable And Connector Specification
For optical fibers 250 m. Information We recommend using finished and standardized optical waveguides from specialist suppliers. Please do not hesitate to ask your KEBA-contact partner for further information. EMC and wiring guidelines Pay attention from the outset to careful wiring and shielding. -
Page 17: Configuration
For further information to the configuration see the documentation of the in- cluded configuration tool. Setting the K-Bus address Since only one FM 280/A may be added to a CPU module, no address setting of the module address is required. Project engineering manual V1.02 © KEBA 2011... -
Page 18: Operating Behavior
Operating behavior FM 280/A Operating behavior Start-up after Power-On The module is passive and is configured and activated through the HOST. Project engineering manual V1.02 © KEBA 2011... -
Page 19: Disposal
● The materials are recyclable in accordance with their labeling. You can make an important contribution to protecting our environment by reusing, renewing and recycling materials and old appliances. Project engineering manual V1.02 © KEBA 2011... -
Page 20: Technical Data
Galvanic isolation: Yes, signaling lines Dimensions Footprint: ● Module height: 120 mm ● Mounting depth: 100 mm ● Front panel width: 22,5 mm ● Module width (incl. K-Bus plug): 32,5 mm Weight: 130 g Project engineering manual V1.02 © KEBA 2011... -
Page 21: 10 Ec Directives And Standards
Programmable controllers - Part 2 10.2.4 Environmental and surrounding conditions EN 61131-2:2007 Programmable controllers - Part 2 10.3 Standards for the American market 10.3.1 UL test for industrial control equipment UL 508, 2005 Industrial Control Equipment Project engineering manual V1.02 © KEBA 2011... - Page 22 Declaration of conformity FM 280/A 11 Declaration of conformity Project engineering manual V1.02 © KEBA 2011...
