2
Move the compass six inches to the left of the location, then
six inches to the right, observe the needle, and select an
action:
• If the compass needle moves more than three degrees
during this step, magnetic interference is present. Select a
new mounting location and repeat the test.
• If the compass needle does not move, or moves less than
three degrees, proceed to the next step.
3
Repeat this process while moving the compass above and
below the mounting location.
4
Repeat this process while moving the compass in front of and
behind the mounting location.
ECU Mounting and Connection Considerations
• The ECU can be mounted on a flat surface, facing any
direction.
• Mounting screws are included with the ECU, but you may
need to provide different screws if the supplied screws are
not suitable for the mounting surface.
• The ECU must be mounted within 0.5 m (19 in.) of the pump.
◦ The cables connecting the ECU to the pump cannot be
extended.
• The ECU must be mounted in a location where it will not be
submerged or exposed to wash down.
• The ECU power cable connects to the boat battery, and it
can be extended if needed
page 4).
Shadow Drive Mounting Considerations
™
NOTE: The Shadow Drive is a sensor you install in the hydraulic
steering lines of your boat. It detects when you manually take
control of the helm and suspends autopilot control of the boat.
• The Shadow Drive must be mounted horizontally and as level
as possible, with cable ties firmly securing it in place.
• The Shadow Drive must be mounted at least 305 mm (12 in.)
away from magnetic materials or devices, such as speakers
or electric motors.
• The Shadow Drive should be mounted closer to the helm
than to the pump.
• The Shadow Drive should be mounted lower than the lowest
helm, but higher than the pump.
• The Shadow Drive must not be connected directly to the
fitting at the back of the helm. There must be a length of hose
between the fitting at the helm and the Shadow Drive.
• The Shadow Drive must not be connected directly to a
hydraulic T-connector in the hydraulic line. There must be a
length of hose between a T-connector and the Shadow Drive.
• In a single-helm installation, there must not be a T-connector
between the helm and the Shadow Drive.
• In a dual-helm installation, the Shadow Drive should be
installed between the pump and the hydraulic T-connector
that leads to the upper and lower helm, closer to the T-
connector than to the pump.
• The Shadow Drive must be installed in either the starboard
steering line or the port steering line.
The Shadow Drive must not be installed in either the return
line or the high-pressure line, if applicable.

Alarm Mounting and Connection Considerations

• The alarm should be mounted near the primary helm station.
• The alarm can be mounted under the dashboard.
• If needed, the alarm wires can be extended with 28 AWG
2
(0.08 mm ) wire.
NMEA 2000

Connection Considerations

®
• The CCU and the helm control must connect to a NMEA
2000 network.
2
(Power Cable Extensions,
• If your boat does not already have a NMEA 2000 network,
one can be built using the included NMEA 2000 cables and
connectors (Building a Basic NMEA 2000 Network for the
Autopilot System, page
• To use the advanced features of the autopilot, optional
NMEA 2000 devices, such as a wind sensor, a water-speed
sensor, or a GPS device, can be connected to the NMEA
2000 network.

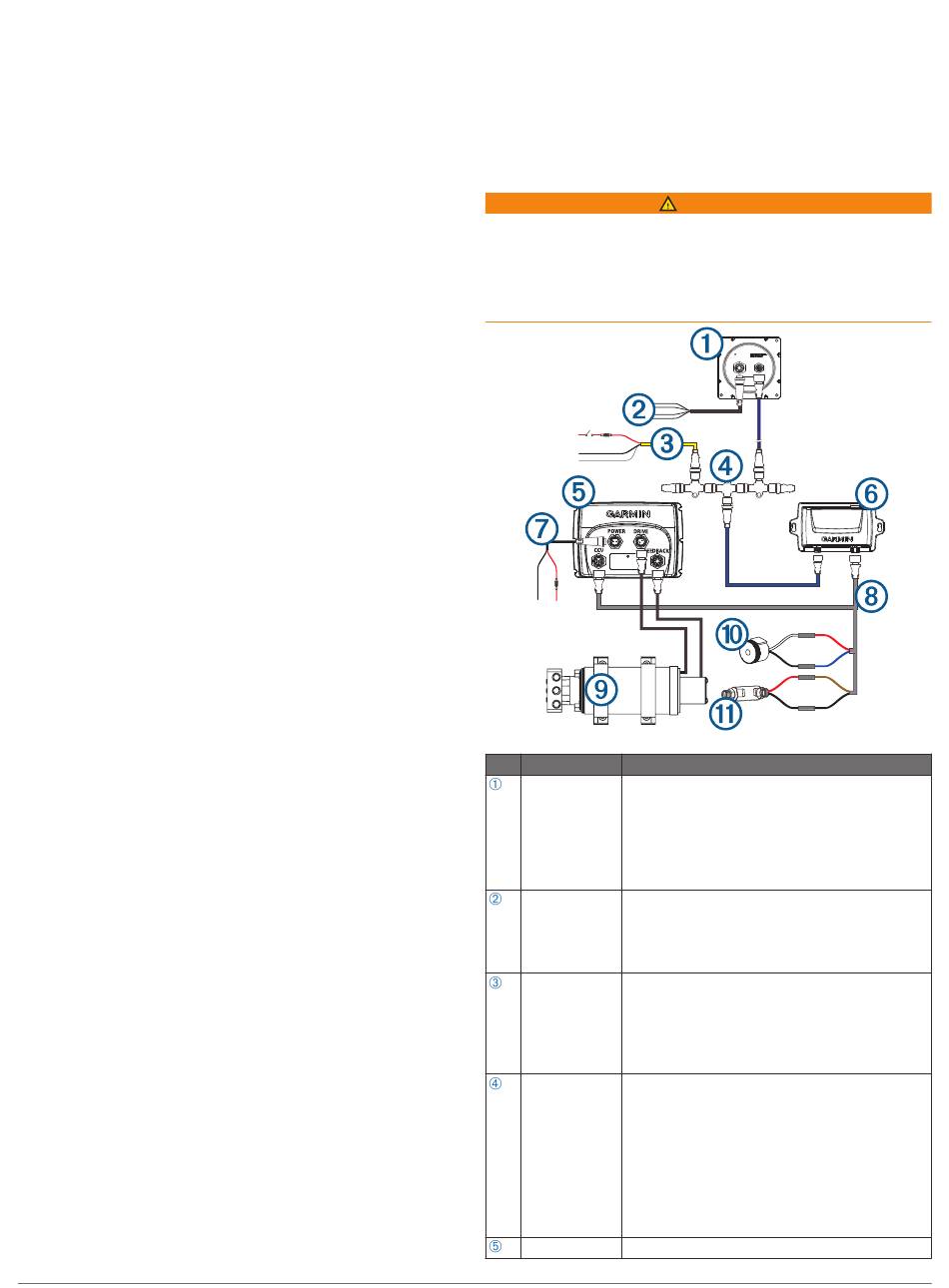

Power and Data Layout

When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
Item Description Important Considerations
Helm control A dedicated helm control is not included in all
autopilot packages. If you install the autopilot
without a dedicated helm control, the autopilot
CCU must be connected to the same NMEA
2000 network as a compatible Garmin
chartplotter to configure and control the autopilot
system.
Helm control You should install this cable only if you are
data cable connecting the autopilot to optional NMEA
devices, such as a wind sensor, a water-speed
sensor, or a GPS device
Connection Considerations, page
NMEA 2000 You should install this cable only if you are
power cable building a NMEA 2000 network. Do not install
this cable if there is an existing NMEA 2000
network on your boat.
You must connect the NMEA 2000 power cable
to a 9 to 16 Vdc power source.
NMEA 2000 You must connect the helm control or compatible
network Garmin chartplotter and the CCU to a NMEA
2000 network using the included T-connectors
(NMEA 2000
page 2).
If there is not an existing NMEA 2000 network on
your boat, you can build one using the supplied
cables and connectors
2000 Network for the Autopilot System,
page 5).
ECU
5).
WARNING
(NMEA 0183
7).
Connection Considerations,
®
(Building a Basic NMEA
0183
®
