GFC 500 Master Controls

Master Controls

Mode Controls
* = Requires appropriate nav source to be active

Arrangement of Roll, Status, and Pitch modes mirror the layout on the autopilot mode controller
Status Box

Control	Location	Description

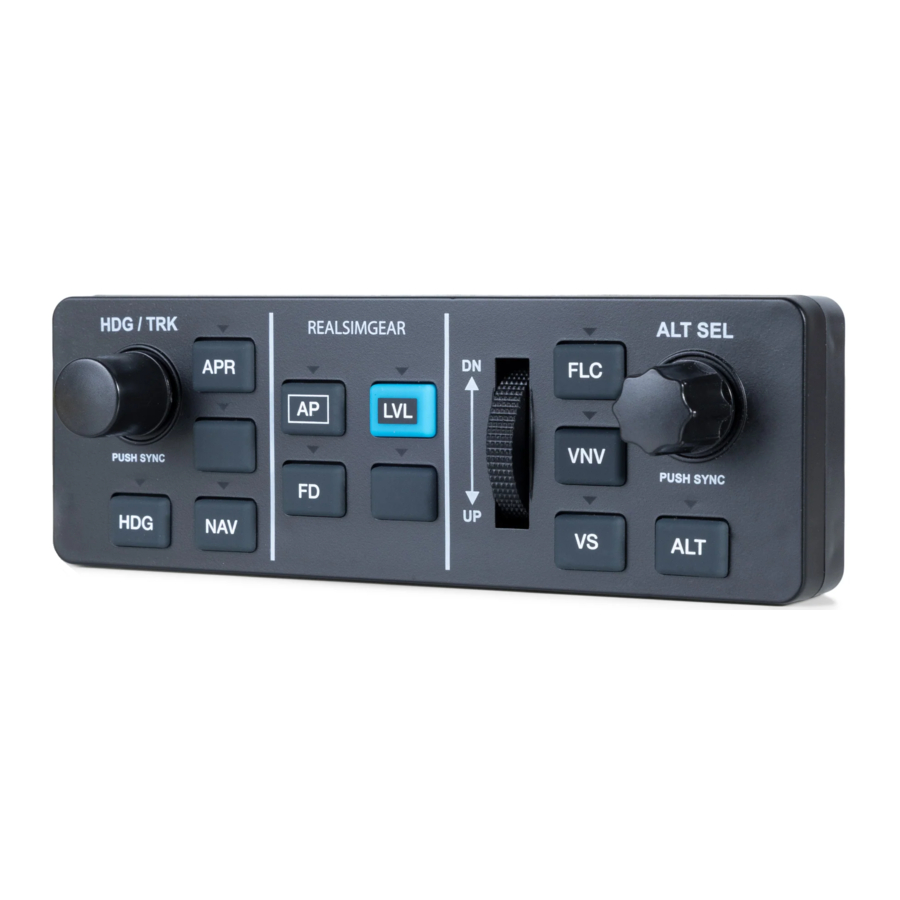

Autopilot Controller (GMC 507)	Avionics Stack	Activates the autopilot/flight director, and selects the desired mode.
AP DISC / TRIM INT (Autopilot Disconnect Switch)	Left Yoke Horn	Press and release to disengage the autopilot. Press and hold 5 seconds to disable ESP.
MET Switch (Manual Electric Trim)	Left Yoke Horn	Commands manual electric pitch trim.
Go Around Button	Above Throttle Quadrant	Selects the flight director to Takeoff or Go-Around mode.

Mode	Description	Control	Annunciation
Roll Hold	Hold the current aircraft roll attitude, or wingslevel if less than 6˚ bank	(default)	ROL
Heading	Capture & track the selected heading	HDG key	HDG
Track	Capture & track the selected ground track	TRK key	TRK
Enroute Navigation – GPS	Capture & track a GPS course	NAV key	GPS
Enroute Navigation – VOR	Capture & track a VOR course		VOR
Enroute Navigation – LOC	Capture & track a LOC course		LOC
Takeoff	Command a wings-level attitude	Go Around button	TO
Go-Around	Command a wings-level attitude	Go Around button	GA

Mode	Description	Control	Annunciation
Pitch Hold	Hold the current aircraft pitch attitude	(default)	PIT
Selected Altitude Capture	Capture the selected altitude (bug or VNAV)	(automatic)	ALTS ALTV
Altitude Hold	Hold the current altitude	ALT key	ALT
Vertical Speed	Maintain the current aircraft vertical speed	VS key	VS
Indicated Airspeed (IAS)	Maintain the current aircraft IAS	IAS key	IAS
Vertical Navigation	Capture & track descent legs of an active vertical profile	VNAV key	VNAV
Takeoff	Command a wings-level	Go Around	TO
Go-Around	attitude	button	GA

Approach Mode	Description	Control	Annunciation
Approaches without vertical guidance
GPS	Capture & track a GPS approach course	NAV key	GPS
VOR	Capture & track a VOR approach course	NAV key	VOR
LOC	Capture & track a LOC approach course		LOC
BC	Capture & track a BC approach course		BC
Approaches with vertical guidance
Glidepath	Capture & track a GPS WAAS glidepath	APR key	GP
Glideslope	Capture & track an ILS glideslope	APR key	GS

Set the selected navigation source toGPS
Have an active flight plan with VNAV constraints set
- Altitude constraint must be "at" or "at or below"
Set the altitude selector to lowest assigned altitude
Press the VNAV key

Altitude selection (bug) has priority over VNAV
- AP won't descend below the altitude bug

Step-down fixes
1. Set the altitude preselect to the next required altitude
2. Select VS, IAS, or PIT mode to descend to the next step-down fix
Activation prior to FAF
1. Set the selected navigation source as appropriate
2. Verify/set the CDI to the desired course
  - For BC approaches, set the CDI to the front course
3. Press the NAV key (if not already selected)
4. Verify the correct approach mode is annunciated
FAF to MAP
1. When at the MDA:
  1. Press the ALT key to maintain altitude
  2. Set the altitude preselect to the missed approach altitude

Step-down fixes
1. Set the altitude preselect to the next required altitude
2. Select VS, IAS, or PIT mode to descend to the next step-down fix
Activation prior to FAF
1. Set the selected navigation source as appropriate
2. Verify/set the CDI to the desired course
3. Press the APR key
4. Verify the correct approach mode is annunciated
FAF to MAP
1. When the GP/GS is captured, set the altitude preselect to the missed approach altitude
2. If a +V approach, when at the MDA, press the ALT key to maintain altitude
