Important Information

This product should be installed by qualified service
personnel and conform to all local codes.
WARNING: RISK OF ELECTRIC SHOCK!
DO NOT OPEN! No user-serviceable parts
are inside. Refer servicing and adjustment
to qualified service personnel.
WARNING: To reduce the risk of fire or
shock hazard, do not expose this product
to rain or moisture.
This equipment has been tested and found
to comply with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Unpacking and Inspection
Unpack carefully. This is an electronic product and
should be handled as such. Compare the items
received with the packing list.
Be sure to save:
1. Shipping cartons and insert pieces. If a failure
occurs, they are the safest material to return the
product.
2. The IMPORTANT SAFEGUARDS sheet.
3. These instructions.
Maintenance
User maintenance of this unit is limited to external
cleaning and inspection. For specific
recommendations refer to the IMPORTANT
SAFEGUARDS sheet packaged with this product.
Installation and Service
This installation should be made by qualified service
personnel and should conform to all local codes.
Take safeguards to avoid unintentional operation by
people working about the premises, falling objects,
customers, building vibration, and similar causes.
Opening or removing covers may expose you to
dangerous voltages or other hazards. Refer all
servicing to qualified personnel.
AD2010N/P AND AD2020N/P MATRIX SWITCHING BAYS
INSTALLATION GUIDE
Mounting
• As shown in Figure 1, a matrix switching bay fits
into a standard 48.3cm (19in) rack with a height of
26.7cm (10.5in) or one rack wide by six racks
high.
• Bays require a minimum of 44mm (1.75in)
clearance from bay-to-bay (one rack unit). Ensure
airflow around the bays for proper ventilation.
• For multiple bay configurations, carefully identify
the bays before mounting and place video inputs
near the top of the racks to avoid tangled cables.

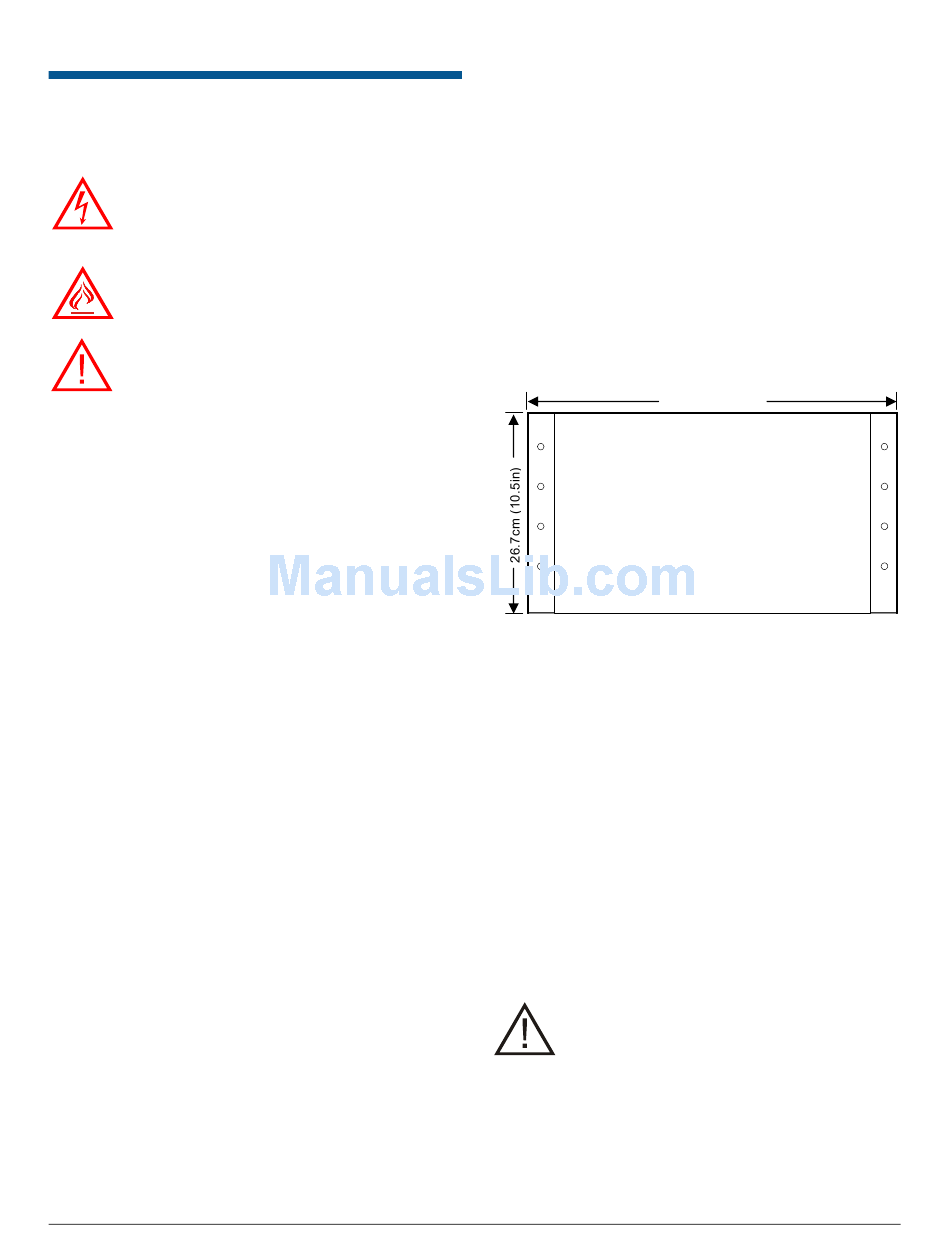

Figure 1. Bay mounting dimensions
Power Source
• Matrix switcher bay AD2010N and AD2020N
connect to a 120Vac, 50-60Hz power source.
These bays use an integrated 3-wire cord for
mating to the power source.
• Matrix switcher bay AD2010P and AD2020P
connect to a 100–240Vac, 50-60Hz power source.
Note: This unit has a Euro-style IEC-type inlet. A
suitable detachable cord connects between the
IEC 320 inlet and the power source. The cord
should conform to all national and local use code
requirements.
COMPLETE "POWER UP" PROCEDURES
BEFORE PHYSICALLY CONNECTING
EQUIPMENT TO THE POWER SOURCE.
CAUTION: Before connecting the system
to the power source read "Powering Up the
System", on page 3. Also check your
installation against system configuration
examples shown in Appendix D.
2 of 64
48.3cm (19in)
8200-0421-08, REV. B
