American Dynamics 3200 Installation And Service Manual

American dynamics megapower 3200 switcher: install guide
Hide thumbs Also See for 3200:
Table of Contents

Advertisement

Quick Links

See also: Administrator's Manual , Operator's Manual
®
MegaPower
CPU
ADMPCPU
Installation and Service Guide
8200-0421-01 D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for American Dynamics 3200

Summary of Contents for American Dynamics 3200

  • Page 1 ® MegaPower ADMPCPU Installation and Service Guide 8200-0421-01 D...

  • Page 3: Table Of Contents

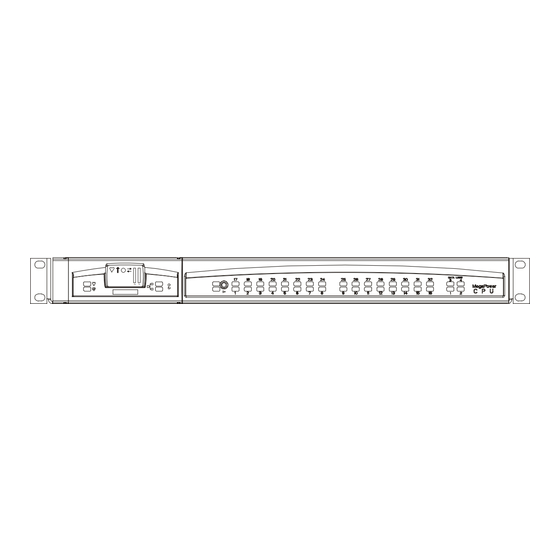

    MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Overview The MegaPower CPU (MPCPU) is the control unit for the MegaPower 3200 CCTV matrix switcher. The control unit: • Enables setup and control of cameras, monitors, users, alarms, video recording and data communications •...

  • Page 4: Installation

    Installation The MPCPU unit is installed in a 48.3cm (19in) equipment rack. Use screws supplied with the rack or purchase screws separately. Single MPCPU Refer to diagrams on pages 3 and 4 while performing the following procedure. 1. Ensure the ribbon cable at the side of the MPU module is connected to the module itself (and not hanging).
  • Page 5 Indicators, Settings, and Connections MPU Module Front Front Panel (left to right) Heart Beat Upon power up or reset, blinks once for ROM and RAM test completion (stays lit and operation halts if either test fails). Otherwise, blinks steadily to show processor is operating.
  • Page 6 MPCPUs are set to the same com port setting (UP or DOWN). MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Port Module Thumbnut Ethernet Connection Video In/Out Line Termination 1–3200 1–1024 Switches 1–3200 1025– 2048 1–3200 2049– 3072 1–3200 3073– 3200...

  • Page 7: Troubleshooting

    Parts Supplied ADMPCPU Firmware (0201-0016-01) MegaPower CPU Install Kit 0352-0228-01 Part Part Number Velcro Dual Lock 3200-0357-02 Connector, 3-Pin 2109-0510-03 Connector, 7-Pin 2109-0726-07 Connector, Plug 2109-0848-01 Power Supply 2025-0398-01 Power Cable, UK 6003-0221-01 Power Cable, US 6003-0239-01 Power Cable, Euro...

  • Page 8: Specifications

    Specifications Operational Bandwidth... 17MHz Frequency response ... ±0.5dB to 12MHz Signal-to-noise ratio... 65dB (V Crosstalk: Adjacent channels...–55dB (at 3.58MHz) Input-to-input ...–70dB (at 3.58MHz) Differential delay ... ±1.0° Differential phase...1.5° or better Differential gain... 1.0% or better Tilt... 0.5% or better Gain ...Unity (±1dB) Return loss (input/output) ...

  • Page 9: Declarations

    MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Other Declarations Thank you for using American Dynamics products. We support our products through an extensive and worldwide network of dealers. The dealer, through whom you originally purchased this product, is your point of contact if you have a need for service or support.

  • Page 10: Appendix A: Hot Switch Setup

    Appendix A: Hot Switch Setup The following applies when two MPCPUs connect together for redundancy. Selected Unit. Since both MPU modules are actively processing incoming data, the term “selected” identifies which unit is driving the lines. Backup Unit. An MPU module whose CPU is not driving AD data lines and RS-232 COM ports.

  • Page 11: Appendix C: Basic Admp3200 Matrix Switcher To Mpcpu Connection

    Appendix C: Basic ADMP3200 Matrix Switcher to MPCPU Connection (shown with one video output line dedicated to the Snapshot function) AD Data Lines VOM output dedicated to Snapshots Note: See Administrator’s Guide for Snapshot and TFTP server configuration, and for how to take Snapshot images. MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MPCPU...

  • Page 12: Appendix D: Ad2088 Keyboard To Mpcpu Connections

    Appendix D: AD2088 Keyboard to MPCPU Connections AD2088 > MPCPU (less than 2 meters (7 Feet)) 0650-1000-01 9Vac @ 1.3A AD2088 Keyboard Note: Set the keyboard RS-232 baud rate to 1200 (default). MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to...
  • Page 13 AD2088 > MPCPU (2– 305 meters (7–1000 feet) maximum at 1200 Baud) 9Vac @ 1.3A AD2088 Keyboard Note: Set the keyboard RS-232 baud rate to 1200 (default). MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to 1200 (default).
  • Page 14 AD2088 > AD2081 > MPCPU (less than 2 meters (7 feet)) 0650-1000-01 9Vac @ 1.3A AD2088 Keyboard Note: Set the keyboard RS-232 baud rate to 1200 (default). MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to 4800 (1200 default).
  • Page 15 AD2088 > AD2081 > MPCPU (2–305 meters (7–1000 feet) maximum at 1200 Baud) 9Vac @ 1.3A AD2088 Keyboard Note: Set the keyboard RS-232 baud rate to 1200 (default). MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to 4800 (1200 default).

  • Page 16: Appendix E: Adcc200/300/1100 Keyboard To Mpcpu Connections

    Appendix E: ADCC200/300/1100 Keyboard to MPCPU Connections ADCC200/300/1100 > MPCPU (less than 2 meters (7 feet)) MP-KMI 12Vdc @ 0.42A ADCC200/300 Keyboard – OR – ADCC1100 Keyboard MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to 1200 (default).
  • Page 17 ADCC200/300/1100 > MPCPU (2–305 meters (7–1000 feet) maximum at 1200 Baud) MP-KMI 12Vdc @ 0.42A ADCC200/300 Keyboard – OR – ADCC1100 Keyboard MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to 1200 (default).
  • Page 18 ADCC200/300/1100 > AD2081 > MPCPU (less than 2 meters (7 feet)) MP-KMI 12Vdc @ 0.42A Note: Set the keyboard RS-232 baud rate to 1200 (RS-485 19200 default). ADCC200/300 Keyboard – OR – ADCC1100 Keyboard MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower...
  • Page 19 ADCC200/300/1100 > AD2081 > MPCPU (2–305 meters (7–1000 feet) maximum at 1200 Baud) MP-KMI 12Vdc @ 0.42A Note: Set the keyboard RS-232 baud rate to 1200 (RS-485 19200 default). ADCC200/300 Keyboard – OR – ADCC1100 Keyboard MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower...

  • Page 20: Appendix F: Adtte Controller To Mpcpu Connections

    Appendix F: ADTTE Controller to MPCPU Connections ADTTE Controller > MPCPU (less than 2 meters (7 feet)) 0650-1000-01 0300-1000-01 RJ45 Note: Set the ADTTE RS-232 baud rate to 1200 (default). ADTTE Controller MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Set the MegaPower CPU RS-232 baud rate to...
  • Page 21 ADTTE Controller > MPCPU (2–305 meters (7–1000 feet) maximum at 1200 Baud) MegaPower CPU Rear View RS-232 Ports Belden 8770 (non-plenum) Belden 88770 (plenum) 0650-0991-01 ADTTE Controller MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port.
  • Page 22 ADTTE Controller > AD2081 > MPCPU (less than 2 meters (7 feet)) RS-232 Ports J3 Connector Description 24Vac 24Vac 0300-1000-01 RJ45 24Vac @ 28VA Flip Cable (6003-0047-01) ADTTE Controller 6003-0165-01 MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port.
  • Page 23 ADTTE Controller > AD2081 > MPCPU (2–305 meters (7–1000 feet) maximum at 1200 Baud) Belden 8770 (non-plenum) Belden 88770 (plenum) Shield J3 Connector Description 24Vac 24Vac 0300-1000-01 RJ45 Note: Set the ADTTE RS-232 baud rate to 1200 (default). ADTTE Controller MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View...

  • Page 24: Appendix G: Intellex To Mpcpu Connections

    Appendix G: Intellex to MPCPU Connections Intellex > MPCPU via S3 Kit (less than 2 meters (7 feet)) RS-232 Ports Intellex Rear View MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port. MegaPower CPU Rear View Note: Set the MegaPower CPU RS-232 baud rate to...
  • Page 25 Intellex > MPCPU via S3 Kit (2–305 meters (7–1000 feet) maximum at 1200 baud) RS-232 Ports Belden 8770 (non-plenum) Belden 88770 (plenum) Intellex Rear View MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port. MegaPower CPU Rear View Note: Set the MegaPower CPU RS-232 baud rate to...
  • Page 26 Intellex > MPCPU via USB to Serial Adapter (less than 2 meters (7 feet)) RS-232 Ports Intellex Rear View MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port. MegaPower CPU Rear View Note: Set the MegaPower CPU RS-232 baud rate to 4800 (1200 default).
  • Page 27 Intellex > MPCPU via USB > Serial Adapter (2–15.2 meters (7–50 feet) maximum at 4800 baud) RS-232 Ports Belden 8770 (non-plenum) Belden 88770 (plenum) Intellex Rear View MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE Ethernet Port Do not connect the RS-232 keyboard to this port.

  • Page 28: Appendix H: Computer To Mpcpu Connections

    Appendix H: Computer to MPCPU Connections Computer > MPCPU PC Connection Using Ethernet Crossover Cable RS-232 Ports MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View Note: Default MPCPU IP is 192.168.0.1. Ethernet Crossover Cable Note: Set PC IP to 192.168.0.2.
  • Page 29 Computer > MPCPU Connection Using a Hub or Router MP-CBL (Straight-Thru Cable) Note: Set PC IP to 192.168.0.2. MEGAPOWER CPU INSTALLATION AND SERVICE GUIDE MegaPower CPU Rear View RS-232 Ports Note: Default MPCPU IP is 192.168.0.1. Hub / Router MP-CBL (Straight-Thru Cable) 27 of 30...
  • Page 30 Computer > MPCPU “Hot Switch” Connection Using a Hub or Router MegaPower CPU Rear View No. 1 RS-232 Ports Connect Ribbon Cable (top to bottom, bottom to top) MegaPower CPU Rear View No. 2 RS-232 Ports MP-CBL (Straight-Thru Cable) Note: Set PC IP to 192.168.0.3.

  • Page 31: Appendix I: Flip Cable Connections

    Appendix I: Flip Cable Connections Connector plugs are supplied to help reduce the use of terminal boxes. To connect the plugs to the user supplied 0.326mm (22AWG) cabling, refer to the table below. For how to connect wires, see instructions supplied with the plugs. Note: The maximum RS-232 cable distance possible depends on the data rate, environment electrical noise, and the inherent cable...
  • Page 32 Notes: MEGAPOWER CPU 8200-0421-01, REV. D 30 of 30 INSTALLATION AND SERVICE GUIDE...
  • Page 34 Please visit our website for more information www.americandynamics.net © 2008 Sensormatic Electronics Corporation Product specifications subject to change without notice. Certain product names mentioned herein may be trade names 8200-0421-01 D and/or registered trademarks of Sensormatic or other companies.
