MegaPower 3200
Extended Dome/PTZ

Camera Protocol

User Guide
8200-0421-23 A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MegaPower 3200 and is the answer not in the manual?

Questions and answers

wesley cullars
June 2, 2025

having problems with cams not showing up in call up. also display reading E1017 CBIT Failure code ram

0

Subscribe to Our Youtube Channel

Related Manuals for American Dynamics MegaPower 3200

Summary of Contents for American Dynamics MegaPower 3200

  • Page 1: Camera Protocol

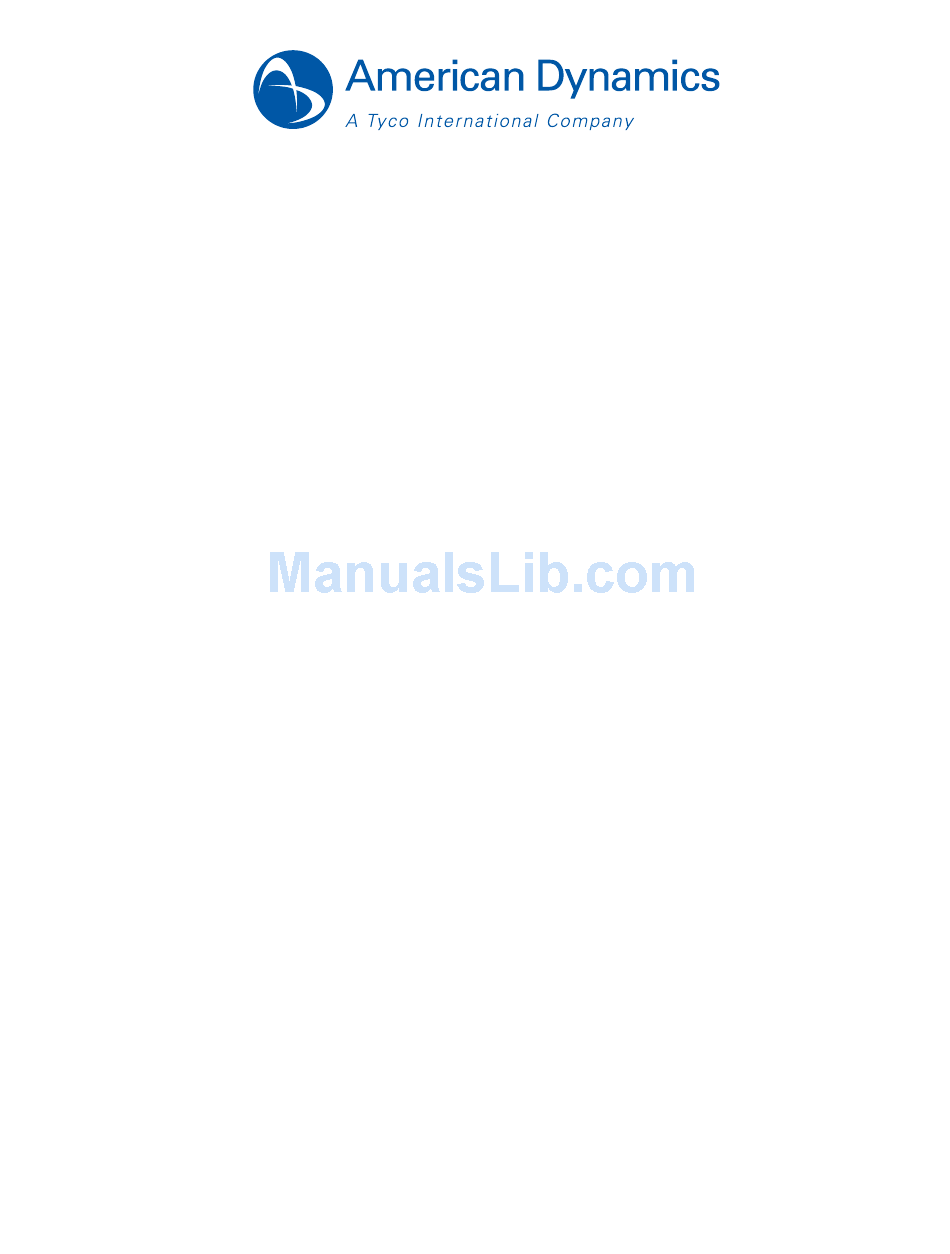

    MegaPower 3200 Extended Dome/PTZ Camera Protocol User Guide 8200-0421-23 A...

  • Page 3: Table Of Contents

    Appendix C: Pelco-D Protocol ........15 Protocol Handler Files Features ............... 15 Format ..............15 1. In your browser, go to the American Dynamics Examples .............. 16 website (http://americandynamics.net) and Defining the Command String....... 16 download the desired BBV Star Card, Bosch Pelco-D Wiring Diagram ........

  • Page 4: Selecting Camera Protocol Handlers

    To add camera control handlers, do the following: be changed here. 1. Click Add/Modify Camera Protocol Handlers at the bottom of the screen. The Protocol Handler Form screen appears. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 2 of 25 USER GUIDE...

  • Page 5: Configuring Camera Protocol Handlers

    American Dynamics RS-422/-485 control with return data or SensorNet can provide the following features:  Camera Status screen information in these columns:  Dome/PTZ On-Line  Mnemonic MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 3 of 25 USER GUIDE...

  • Page 6: Debugging Support

    The following elements are important when correctly. creating a camera control definition file:  Display Name  Serial Port Configuration  Data Rates  Capabilities  Parameters. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 4 of 25 USER GUIDE...

  • Page 7: Configuring The Serial Port

    This value must decimal or hexadecimal string of some length, or a match what your camera is configured to expect. binary or word. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 5 of 25 USER GUIDE...

  • Page 8: Declarations

    Width="7" /> customer service and support. Dealers should contact </ParameterFormatting> American Dynamics at (800) 507-6268 or (561) 912-6259 or on the web at www.americandynamics.net. Common parameters for BBV Star, Pelco-D, and WARRANTY DISCLAIMER: Tyco International Ltd.

  • Page 9: Appendix A: Bbv Star Card Protocol

    ADTTE  Tilt Up(Byte4) : 0 0 0 0 1 0 0 0 = x08.  Tilt Speed(Byte6): 0 0 1 0 0 0 0 0 = x20. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 7 of 25...

  • Page 10: Defining The Command String

    Template="\xB0{camera}\x00\x07\x00{preset}\xBF{check}" /> <Command Name="DefinePreset" Template="\xB0{camera}\x00\x03\x00{preset}\xBF{check}" /> <Command Name="ConfigurationUI" Template="\xB0{camera}\x00\x0f\x00\x00\xBF{check}" /> <Command Name="DefinePattern" Template="\xB0{camera}\x00\x03\x00\x5f\xBF{check}" /> <Command Name="CancelPattern" Template="\xB0{camera}\x00\x03\x00\x5f\xBF{check}" /> <Command Name="EndPattern" Template="\xB0{camera}\x00\x03\x00\x5f\xBF{check}" /> <Command Name="RunPatternOnce" Template="\xB0{camera}\x00\x07\x00\x63\xBF{check}" /> </Commands> MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 8 of 25 USER GUIDE...

  • Page 11: Bbv Star Card Wiring Diagrams

    BBV Star Card Wiring Diagrams RS-232 Port Connections MPCPU RS-422 Port Connections MPCPU MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 9 of 25 USER GUIDE...
  • Page 12 RS-422 Master Port Connections MPCPU MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 10 of 25 USER GUIDE...

  • Page 13: Appendix B: Bosch Autodome Protocol

    Byte 8 (Checksum) – computed as the sum of all previous bytes (including the length byte) in the message, mod 128 (logical AND sum with 7F hex) MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 11 of 25 USER GUIDE...
  • Page 14 Length Byte 10000110 High Order 00000000 Address Byte Low Order 00000000 Address Byte Opcode Byte 00000100 Data Byte 1 00000000 Data Byte 2 00000010 Checksum Byte 00001100 MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 12 of 25 USER GUIDE...

  • Page 15: Defining The Command String

    Template="\x87{camera}\x08\x08\x40\x09{check}" Rate="20"/> <Command Name="DiagDownRightStart" Template="\x87{camera}\x08\x08\x40\x05{check}" Rate="20"/> <Command Name="ZoomInStart" Template="\x86{camera}\x04\x00\x20{check}" Rate="20"/> <Command Name="ZoomOutStart" Template="\x86{camera}\x04\x00\x10{check}" Rate="20"/> <Command Name="AllStop" Template="\x86\x00{camera}\x02\x00\x00{check}" /> <Command Name="GotoPreset" Template="\x86{camera}\x07\x05{preset}{check}" /> <Command Name="DefinePreset" Template="\x86{camera}\x07\x04{preset}{check}" /> </Commands> MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 13 of 25 USER GUIDE...

  • Page 16: Bosch Autodome Wiring Diagram

    Bosch AutoDome Wiring Diagram LTC 0945/15C MPCPU MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 14 of 25 USER GUIDE...

  • Page 17: Appendix C: Pelco-D Protocol

    Note: Configuration UI also can be accessed by going  Spectra IV SE Model DD4C22 Ver. V1.072 with into Keyboard programming mode and typing "95 Preset". Back Box BB4-F MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 15 of 25 USER GUIDE...

  • Page 18: Examples

    0 (zero), the string is never sent. This might be useful during debugging to disable a command temporarily without actually deleting it. See the example on the next page. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 16 of 25 USER GUIDE...
  • Page 19 Template="\xFF{camera}\x00\x00\x00\x00\{check}" Count="2"/> <Command Name="GotoPreset" Template="\xFF{camera}\x00\x07\x00{preset}\{check}" /> <Command Name="DefinePreset" Template="\xFF{camera}\x00\x03\x00{preset}\{check}" /> <Command Name="DefinePattern" Template="\xFF{camera}\x00\x1F\x00{pattern}{check}" /> <Command Name="EndPattern" Template="\xFF{camera}\x00\x21\x00{pattern}{check}" /> <Command Name="RunPatternOnce" Template="\xFF{camera}\x00\x23\x00{pattern}\{check}" /> <Command Name="Flip" Template="\xFF{camera}\x00\x07\x00\x21\{check}" /> </Commands> MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 17 of 25 USER GUIDE...

  • Page 20: Pelco-D Wiring Diagram

    Spectra IV SE Model DD4C22 Ver. V1.072 with Back Box BB4-F MPCPU Note: The Pelco-D protocol only uses one-way (simplex) communications. The MPCPU data return lines (Rx+ and Rx-) are not used. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 18 of 25 USER GUIDE...

  • Page 21: Appendix D: Pelco-P Protocol

     Spectra III Model DD53TC16 Note: Configuration UI also can be accessed by going  Spectra IV SE Model DD4CBW35 into Keyboard programming mode and typing "95 Preset". MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 19 of 25 USER GUIDE...

  • Page 22: Examples

    0 (zero), the string is never sent. This might be useful during debugging to disable a command temporarily without actually deleting it. See the example on the next page. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 20 of 25 USER GUIDE...
  • Page 23 Template="\xA0{camera}\x00\x07\x00{preset}\xAF{check}" /> <Command Name="DefinePreset" Template="\xA0{camera}\x00\x03\x00{preset}\xAF{check}" /> <Command Name="DefinePattern" Template="\xA0{camera}\x00\x1F\x00\x00\xAF{check}" /> <Command Name="EndPattern" Template="\xA0{camera}\x00\x21\x00\x00\xAF{check}" /> <Command Name="RunPatternOnce" Template="\xA0{camera}\x00\x23\x00{pattern}\xAF{check}" /> <Command Name="Flip" Template="\xA0{camera}\x00\x07\x00\x21\xAF{check}" /> <!--<Command Name="ConfigurationUI" Template="\xA0{camera}\x00\x07\x00\x95\xAF{check}" />--> </Commands> MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 21 of 25 USER GUIDE...

  • Page 24: Pelco-P Wiring Diagram

    Spectra IV SE Model DD4C22 Ver. V1.072 with Back Box BB4-F MPCPU Note: The Pelco-P protocol only uses one-way (simplex) communications. The MPCPU data return lines (Rx+ and Rx-) are not used. MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 22 of 25 USER GUIDE...

  • Page 25: Appendix E: Block Diagrams

    Appendix E: Block Diagrams Dual MPCPU system with RS-422/RS-485 direct connection dome/PTZ devices using RS-422/RS-485 Distribution Panel, ADAC422D(P) MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 23 of 25 USER GUIDE...
  • Page 26 Single MPCPU system with one dome/PTZ on each of the two connections Single MPCPU using RS-232 mode to connect to the first RS-422/RS-485 Distribution Panel, ADAC422D(P) MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 24 of 25 USER GUIDE...

  • Page 27: Appendix F: Creating Templates

    Name & ampersand \x26 backslash \x5C < open angle \x3C > close angle \x3E open curly \x7B close curly \x7D „ apostrophe \x27 “ quote \x22 MEGAPOWER 3200 EXTENDED DOME/PTZ CAMERA PROTOCOL 8200-0421-23, REV. A 25 of 25 USER GUIDE...
  • Page 29 Please visit our website for more information www.americandynamics.net © 2011 Tyco International Ltd. and its Respective Companies. All Rights Reserved. Product specifications subject to change without notice. Certain product names mentioned herein may be trade names and/or 8200-0421-23 A registered trademarks of Tyco or other companies.
