INVERTER

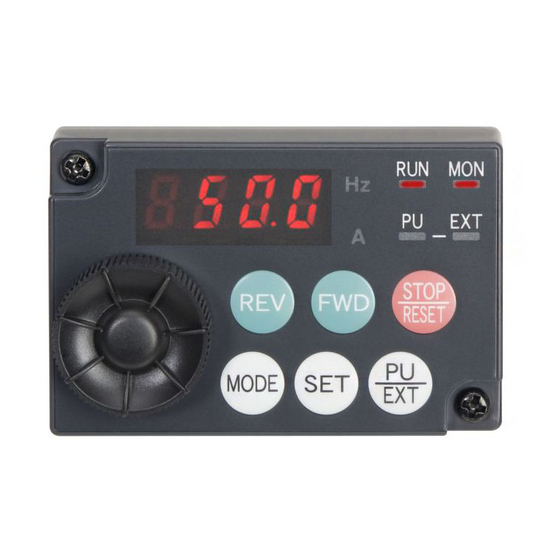

Enclosure surface operation panel
FR-PA07
Thank you for purchasing the enclosure surface operation panel (FR-PA07). This instruction manual
gives handling information and precautions for use of this product. Incorrect handling might cause
an unexpected fault. Before using this product, please read this manual carefully to use this product
to its optimum performance.
Please forward this instruction manual to the end user.
This product is an option dedicated for the FR-E800 */E700/D700/F700PJ/E700EX/D700-G series.
Refer to the inverter unit's Instruction manual for details on the operation panel functions, operation
methods and handling methods.
* Only the FR-E800 standard model is supported.
 Do not touch the setting dial or keys with wed hands. Doing so may cause an electric shock.
 Do not install and operate the enclosure surface operation panel (FR-PA07) if it is damaged
or has parts missing.
 Provide a safety backup device, such as an emergency brake, to protect machines and
product from hazardous conditions if the enclosure surface operation panel (FR-PA07)
becomes faulty.
 Static electricity in your body must be discharged before you touch the product. Otherwise
the product may be damaged.
 If halogens (including fluorine, chlorine, bromine, and iodine) contained in fumigants for wood
packages enter this product, the product may be damaged. Prevent the entry of fumigant
residuals or use an alternative method such as heat disinfection. Note that sterilization or
disinfection of wood packages should be performed before packing the product.
1. Connection
• Use the FR-CB20 connection cable. Insert one end of the cable into the PU connector on the
inverter, and the other end into the connection connector on the FR-PA07 along the guides until
the clips click into place. (For the details of the FR-CB20, refer to the Instruction Manual of the
FR-CB20.)
• To disconnect the cable, hold down the clip at the cable end and gently pull the connector.
FR-PA07 (back)
NOTE
Do not start operation with the inverter front cover removed.
INSTRUCTION MANUAL
Safety precautions
Clip
PU connector
Clip
Example: FR-E700
1

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric FR-PA07

Summary of Contents for Mitsubishi Electric FR-PA07

  • Page 1 Safety precautions  Do not touch the setting dial or keys with wed hands. Doing so may cause an electric shock.  Do not install and operate the enclosure surface operation panel (FR-PA07) if it is damaged or has parts missing.
  • Page 2 RESET Operation mode indication Setting dial MODE SET PU: Lit to indicate PU operation (Setting dial: Mitsubishi Electric mode. inverter dial) EXT: Lit to indicate external Used to change the frequency operation mode. setting and parameter values.

  • Page 3: Basic Operation

    PU operation mode is defined as follows: USB connector > FR-PA07 > operation panel. (Whether a USB connector is provided depends on the inverter model. For details, refer to the Instruction Manual of the...
  • Page 4 3.2 Operation lock (Press [MODE] for a while (2 seconds)) Operation using the setting dial and key of the FR-PA07 can be made invalid to prevent parameter change, and unexpected start or frequency setting.  Set "10 or 11" in Pr. 161, then press for 2 seconds to make the setting dial and key operation invalid.

  • Page 5: Use The Setting Dial Like A Potentiometer To Perform Operation

    Note  Release the operation lock to release the PU stop by key operation. 3.3 Use the setting dial like a potentiometer to perform operation POINT Set "1" (setting dial potentiometer mode) in Pr. 161 Frequency setting/key lock operation selection. Changing example Changing the frequency from 0 Hz to 60 Hz during operation Operation Display...

  • Page 6: Standard Specifications

    4. Specifications 4.1 Standard specifications Item Specifications Surrounding air -10°C to +50°C (non-freezing) temperature Ambient humidity 90%RH or less (non-condensing) Storage temperature -20°C to +60°C* Ambience Indoors (free from corrosive gas, flammable gas, oil mist, dust and dirt) Maximum 1000m above sea level for standard operation. 5.9m/s or less Altitude, vibration at 10 to 55 Hz (directions of X, Y, Z axes)
  • Page 7 5. Instructions For the FR-E700 series inverters manufactured during or before the period shown by  the following serial numbers, there are restrictions mentioned below. • Parameter copy ( ) is displayed, but parameter copy (reading, writing, or verification) does not function. Display turns into the reading indication, but reading is not executed.

  • Page 8: Restricted Use Of Hazardous Substances In Electronic And Electrical Products

    6. Restricted Use of Hazardous Substances in Electronic and Electrical Products The mark of restricted use of hazardous substances in electronic and electrical products is applied to the product as follows based on the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products”...
