  • Page 1 BLACK EDITION Translation of the original user manual 2020-08 (1.1)
  • Page 2  Spare parts  Showroom & exhibition devices With our professional service concept  Repair processing  Re-use AAT proves once again its high claim of quality and off ers its clients an all-inclu-  Technical information  Complaints sive package.
  • Page 3 You will also fi nd all safety-relevant changes that have been made to the user manual on our homepage. All versions with details of the production period of the product are obtainable at: www aat-online de/bda/max-e_black_edition Manufacturer’s signature:...

  • Page 4: Table Of Contents

    Table of Contents Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device Product description Device overview ..........8 Indication and intended use .

  • Page 5: Symbols And Safety Instructions

    Stability tests were performed under laboratory conditions. max-e may behave differently under real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. CAUTION External heat sources may cause the surface temperature to rise (e.g. sunlight)!

  • Page 6: Explanation Of The Symbols On The Packaging

    WARNING / RISK OF CRUSHING Never touch rotating/moving parts (e.g. engagement of gear wheel in the toothed ring), to prevent crushing. DANGER max-e must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the total permissible weight and the maximum person weight, as this may lead to defects or an overloading of max-e! Avoid driving in heavy rain, ice, snow and on unsurfaced ground (sand, mud, loose crushed rock) to prevent slipping!

  • Page 7: Explanation Of The Symbols On The Device

    EC Directives 2006/42/EC, 2007/47/EC und 93/42/EC Serial number of the product e. g. Q1604XXXXXX Note on the user manual The user manual must be observed! www.aat-online.de 24 V - Electrical voltage / V = Volt Inspection plate for technical safety testing (see Chapter 9 6)

  • Page 8: Product Description

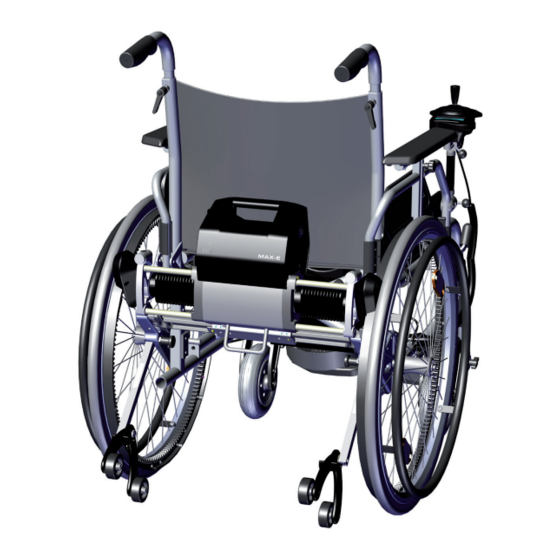

    Product description 4 1 Device overview Manufacturer’s informa- tion: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. Battery pack ON/OFF Power lead; Battery pack connection Horn Battery bag Speed selection fast...

  • Page 9: Indication And Intended Use

    4 2 Indication and intended use The max-e is an electrical transport device and is attached to a manual wheelchair. The objective of the electrical transport device is to make movement with a manual wheelchair easier for a self-propelled person and to take over the force generation for the movement of the wheelchair. This shall maintain autonomous movement and increase mobility and flexibility for the patient.

  • Page 10: Technical Data

    4 4 Technical data WARNING - Do not exceed the total permissible weight and the maximum weight of the person, as this may lead to defects or an overloading of max-e! NOTE - Observe the technical data. Technology max-e Drive dimensions Width: min.

  • Page 11: Dimensional Drawing

    In Bearbeitung >315-1000 ±0,8 Datum Name Baugruppe Artikelnummer bearb. 22.07.2020 Kramer 041423 gepr. Benennung max-e Kabel kpl. AAT Alber Antriebstechnik GmbH Black Edition Ehestetter Weg 11 D-72458 Albstadt Zeichnungsnummer Tel.: 07431/1295-0 Q1604 Fax: 07431/1295-36 Zust. Änderung Datum Name www.aat-online.de Ers. für...

  • Page 12: Accessories

    4 7 Accessories NOTE - Only use AAT Alber Antriebstechnik GmbH accessories. Bracket 22 Ah mega battery pack Spoke protector Bag for mega battery pack Battery pack (additional) Anti-tip supports Quick-release wheels with drum brake Power cable (longer design - 900 mm)

  • Page 13: Installation

    Installation 5 1 Quick-release wheels DANGER - Quick-release wheels must lock into place, as they may become detached unexpectedly! If the wheelchair still has the original wheels on, then remove them and attach the pair of wheels with toothed rings that is included in the max-e’s delivery contents. Position the drive wheel and Adapt wheel.

  • Page 14: Drive Unit

    Manufacturer information: The width of the Delrin castor bracket is set especially for your wheelchair. If you have any questions or need to make any changes, please contact your authorised specialised dealer, the AAT field team or the manufacturer. Activate the parking brakes to Manufacturer’s recommen-...

  • Page 15: Operating Unit

    WARNING - Check the anti-tip supports before initial operation to ensure safety! If anti-tip supports are not available on your wheelchair as standard, use AAT anti-tip supports in pairs! The wheelchair bracket determines which anti-tip supports you require. The type of holder you should attach to your wheelchair depends on the model of your wheelchair.

  • Page 16: Starting Up

    Option 2: Bracket with locking pin Press in the locking pin button Push the anti-tip support into Observe the “R” + “L” markings! Repeat process and pull it out. the bracket and secure with the locking pin. on the other side. Starting up DANGER - Operation only by a single, trained person.

  • Page 17: Turning On The Device

    WARNING - Never touch rotating/moving parts (e.g. engagement of gear wheel in the toothed ring), to prevent crushing. WARNING - If the drive elements become blocked or when the driving behaviour has been altered, switch off max-e immediately and do not use it! WARNING - Observe the maximum permissible weight (see chapter 4.4)! CAUTION - Always overcome kerbs/obstacles backwards (see chapter 6.4)! CAUTION - Maintain sufficient distance to the edge of the kerb to avoid damage!
  • Page 18 Apply the brakes Switch off. Overload warning sign. Before the drive shafts are Pressure reduces and the engaged, secure the wheel- drive shafts retract. chair by applying the parking brake. Error messages. (see chapter 10.2)

  • Page 19: Driving With Max-E

    6 3 Driving with max-e DANGER - When going up a slope, reduce the speed in order to prevent the wheelchair from tilting backwards! NOTE - Please refer to the chapter on warning notices, error messages and troubleshooting! NOTE - Display lighting switches off if the operating unit has not been used for 20 seconds. »...
  • Page 20 Emergency release button Unplug power lead Press the emergency release » Wheelchair can be moved manually! necessary, apply the parking button. Pressure reduces and brake beforehand). the drive shafts retract. Emergency stop function If, while moving (joystick deflected), the user presses the OFF button, the drive stops immediately and an acoustic warning signal sounds.

  • Page 21: Overcoming Obstacles

    6 4 Overcoming obstacles NOTE - Observe the wheelchair manufacturer’s information on the maximum obstacle height in the user manual without fail! NOTE - Be mindful of the anti-tip supports if you need to climb edges or obstacles as they can otherwise be damaged. 6 5 Deactivating the drive Turning off the max-e.

  • Page 22: Transportation

    Care and maintenance WARNING - Repairs and technical safety tests are performed by the manufacturer, the AAT field staff or the authorised specialist shop! NOTE - Perform a visual inspection prior to each start-up! If parts are visibly defective or missing, contact the authorised specialist shop or the manufacturer! NOTE - It is recommended to perform a technical safety test every two years.

  • Page 23: Battery Pack And Charger

    9 1 Battery pack and charger WARNING - Never short-circuit or connect the poles of the battery pack to avoid electric shocks! CAUTION - During the charging procedure, ensure that cables are laid safely to avoid tripping over them! CAUTION - Do not attempt to repair or bypass defective fuses to avoid electric shocks! CAUTION - Protect against moisture to avoid electric shocks! NOTE - Never carry the charger by the charging cable/charging line.
  • Page 24 LED green = battery full LED orange = battery is approx. 10 hours charging Charge the battery pack in the motor vehicle Deactivate max-e (see Remove the battery pack. Connect voltage transformer chapter 6.5) unplug » Open Velcro and remove and charger.

  • Page 25: Replacing The Fuse

    If your fuses burn out frequently, please contact authorised specialist dealer, AAT field team GmbH or the manufacturer. Only use new fuses with 40 Ah! Replacement fuses are available from the manufacturer. Push in fuse drawer. The...

  • Page 26: Cleaning

    Your max-e and its batteries are durable products. After expiry of the natural service life, you can return these components to AAT Alber Antriebstechnik GmbH or their specialist dealers for disposal. On this product you will find the symbol of the "crossed out dustbin" ac- cording to the WEEE regulation.

  • Page 27: Long-Term Storage

    9 6 Technical safety testing NOTE - Technical safety tests may only be performed by the manufacturer, the AAT field staff or the authorised specialist shop. NOTE - It is recommended to perform a technical safety test every two years. The inspection plate provides information about the latest date.

  • Page 28: Reuse (Change In Operator)

    9 7 Reuse (change in operator) The term reuse is used when the AAT product of patient X is to be used for another patient Y. In addition, there is a reuse when a patient receives a different wheelchair and therefore requires new add-on parts.

  • Page 29: Error Messages

    Notify the manufacturer! Operating unit error Error message Error resolution Undervoltage Charge the battery pack (see chapter 9.1) Notify the manufacturer, the AAT field staff, the authorised specialist Parameter dealer! Notify the manufacturer, the AAT field staff, the authorised specialist Software dealer!

  • Page 30: Troubleshooting

    Is the battery pack empty? Yes: Charge! max-e Fuse broken? Yes: Change! Does the problem persist? Yes: Notify the manufacturer, the AAT field staff, the authorised specialist dealer! Is max-e switched on? No: Switch on! max-e is not moving Does the problem persist?

  • Page 31: 11 Warranty And Liability

    • improper charging of the battery pack. Liability As the manufacturer of max-e, AAT Alber Antriebstechnik GmbH is not responsible for any damages that may result if: • max-e was improperly handled.
  • Page 32 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · 72426 Albstadt · Germany Phone: +49.(0) 74 31.12 95-0 Fax: +49.(0) 74 31.12 95-35 info@aat-online.de · www.aat-online.de Serial number:...
