ADDAC812V Assembly Guide

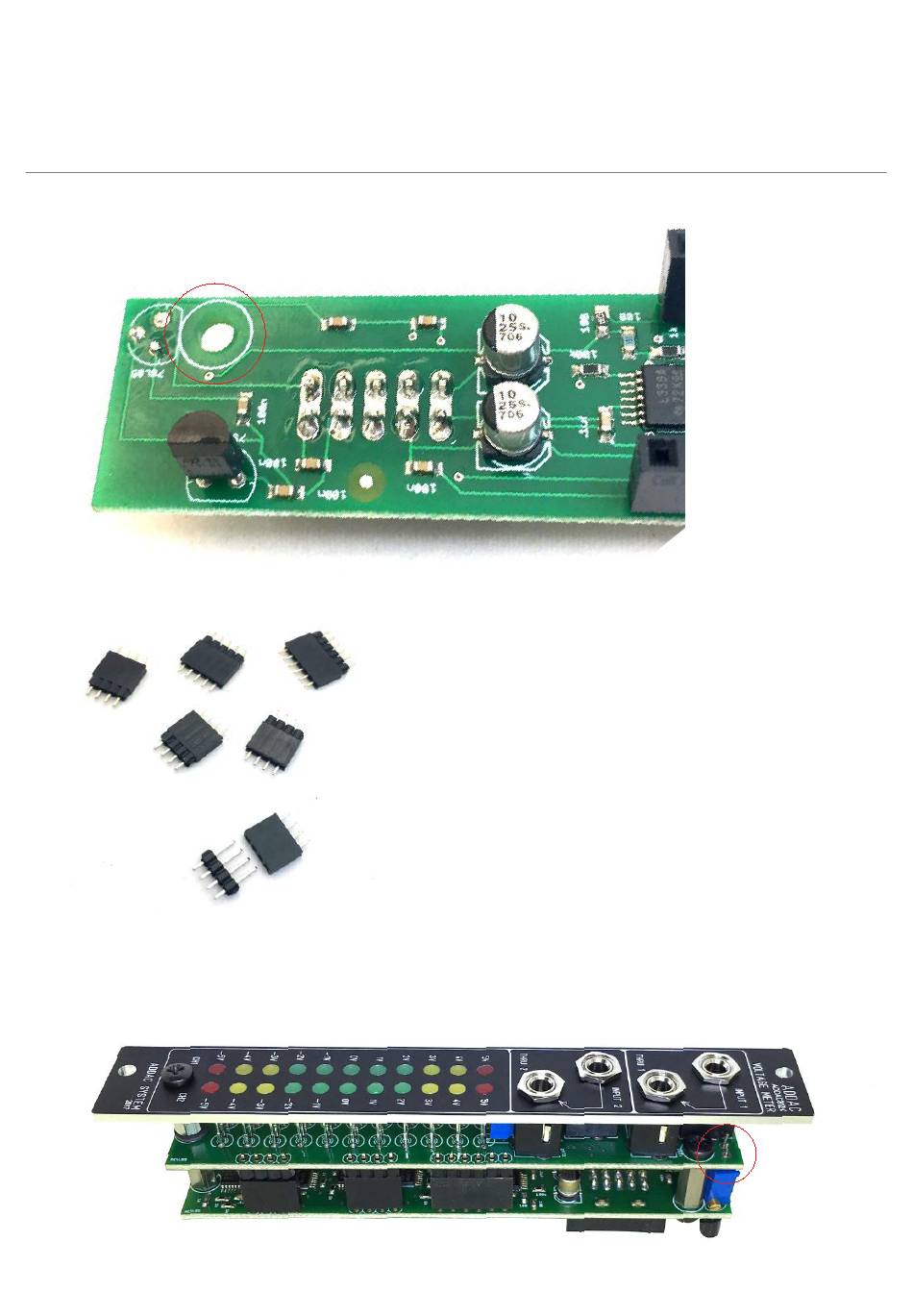

STEP 18:
Flip the pcb and solder the power connector and 78L05.
Also place the remaining spacer and attach it with a screw (marked below).
STEP 19:
Locate and connect all pinheaders like shown below.
STEP 20:
Place the pinheaders on the front pcb, attach the back pcb on top and hold the two pcbs by screwing the
two spacers with two screws.
Notice the unsoldered trimmer.
ADDAC SYSTEM
page 9
