ADDAC812V Assembly Guide

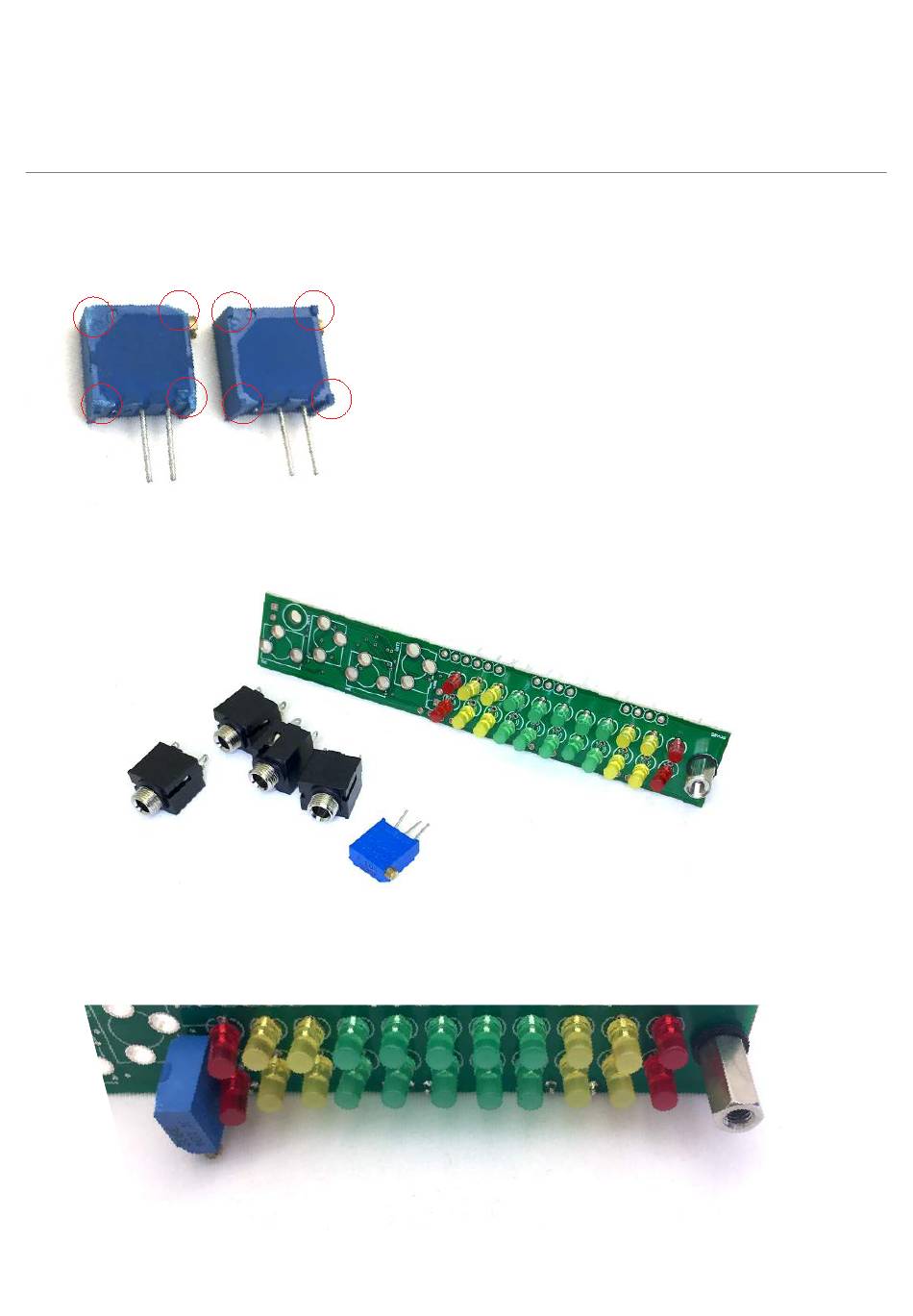

STEP 2:
Locate bboth Trimmers and cut the led further away from the metal pot shaft.
Also cut the plastic corners of one of the trimmers (shown on the left).
STEP 3:
Place all leds as show in the picture below.
STEP 4:
Place the trimmer with the pre-cutted corners.
ADDAC SYSTEM
page 3
