ADDAC812V Assembly Guide

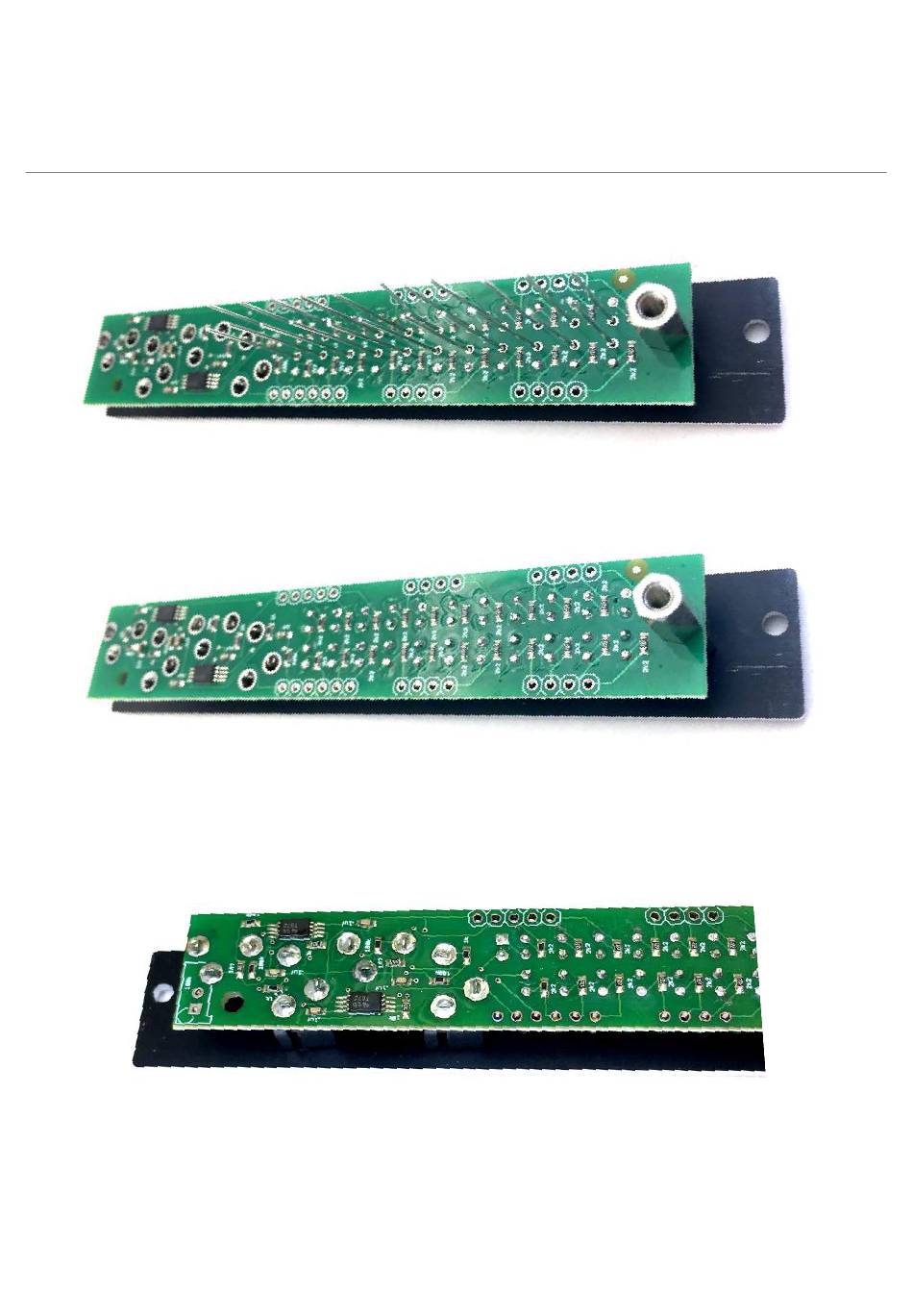

STEP 10:
Next cut the soldered leg of all leds, this will help soldering the second leg.
STEP 11:
Solder the remaining leds and trim their legs.
STEP 12:
Solder the remaining jack legs.
ADDAC SYSTEM
page 6
