ADDAC805 Assembly Guide
STEP 3:

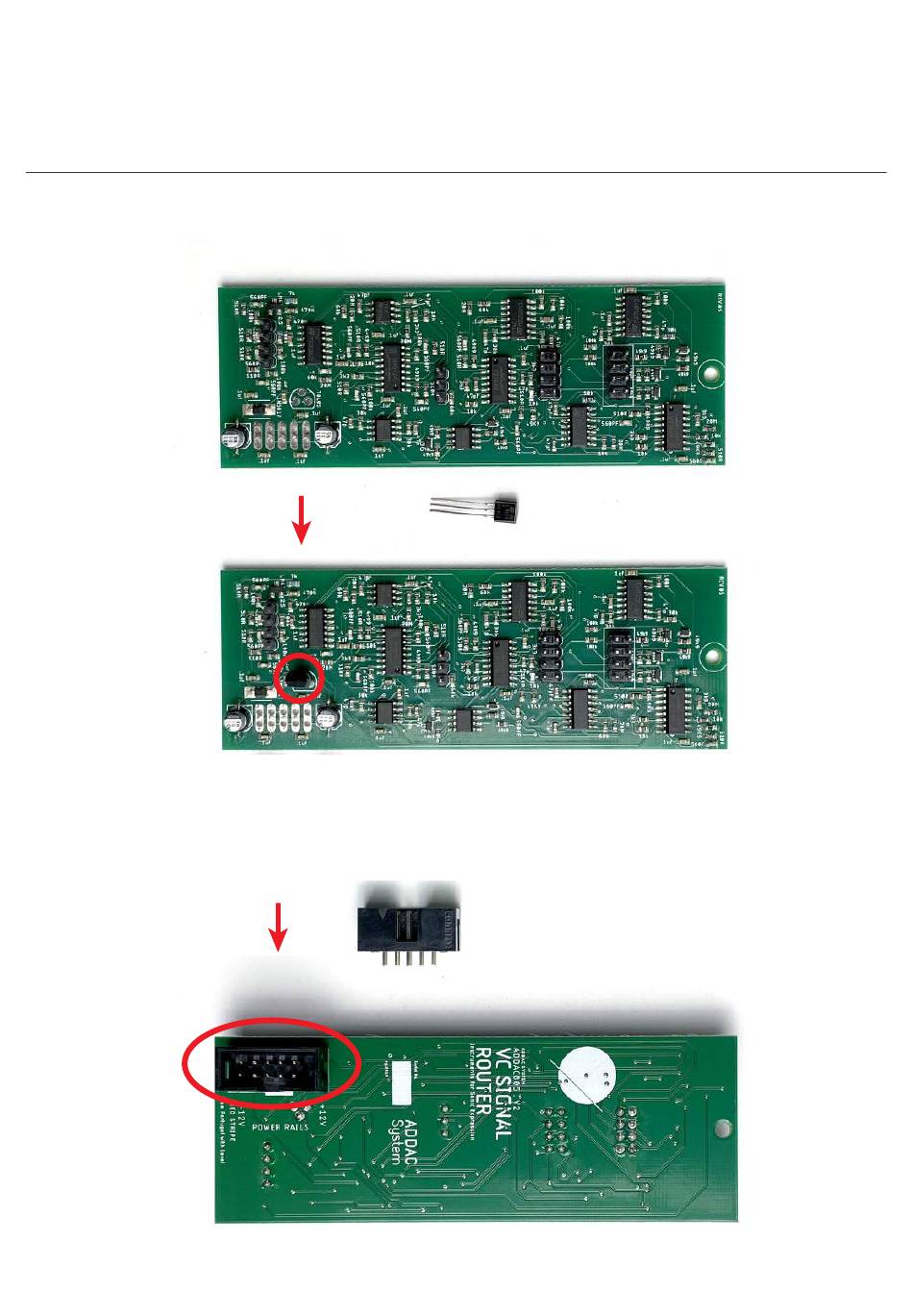

Next locate and solder the 78L05 regulator like shown below.
STEP 4:
Next locate and solder the 2x5 boxed pinheader like shown below.
ADDAC SYSTEM
page 5
