ADDAC805 Assembly Guide
STEP 2:

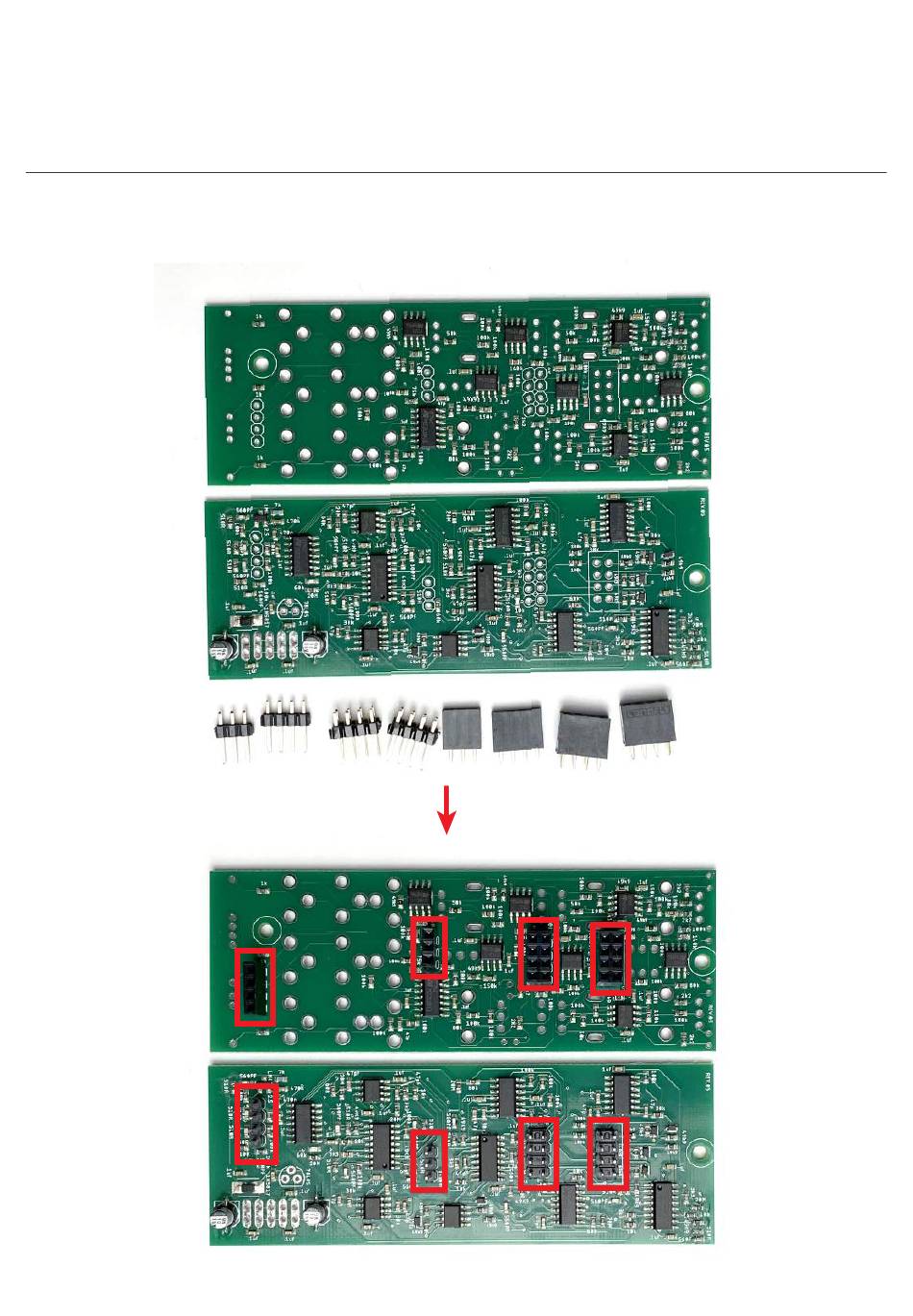

Next carefully break the 2 pcbs apart and proceed to locate the male and female pinheaders and solder
them like shown below.
