ADDAC805 Assembly Guide

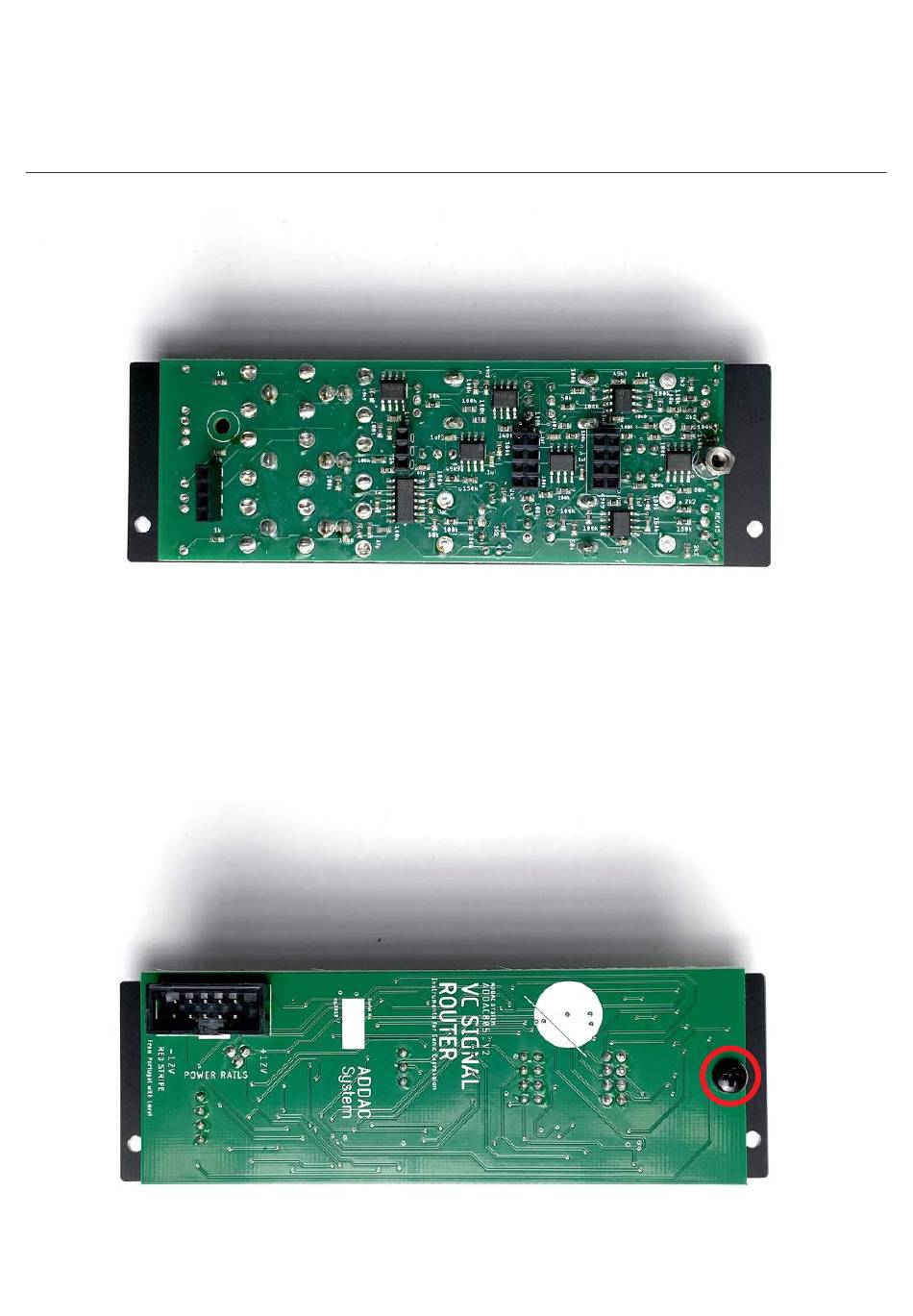

STEP 9:
Next proceed by soldering all pads in the back.
STEP 10:
For the last step attach the back pcb and place the back screw.
ADDAC SYSTEM
page 10
