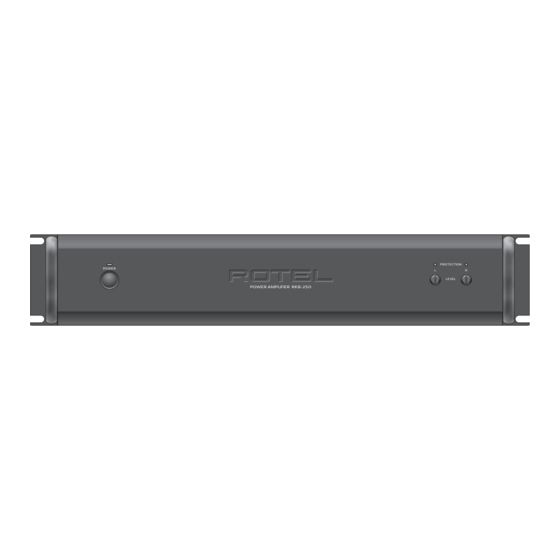

Stereo power amplifier
Hide thumbs Also See for RKB-250:

Advertisement

T echnical
Manual

Table of Contents

Specification.....................................1
Parts List ..........................................2~5
Adjustment.......................................6
Assembled View...............................7~8
PCB Assembly .................................9
Schematic Diagram..........................10

Specification

Continuous Power Output into 8 ohms
(20-20kHz, < 0.03% THD)
2
50 watts/ch into 8 ohms, all channel driven
Continuous Power Output into 4 ohms
(DIN 1 kHz,1.0% THD)
D
90 watts/ch into 4 ohms, all channels driven
Total Harmonic Distortion
o
(20Hz-20kHz, 8 ohms)
2
Continuous rated power. <0.03%
One-half rated power. <0.03%
1 watt power. <0.03%
Intermodulation Distortion
(60 Hz : 7 kHz, 4:1)
< 0.03%
Danping Factor
(20-20,000 Hz, 8 ohms)
>200
Input Impedance
20 k Ohms
Input Sensitivity
1.0 volt
Amplifier Gain:
26 dB
Input Overload Level
5.0 volt
Peak Current
> 25 A
Frequency Response (±1 dB)
10Hz-100kHz
BUNZAN-SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Quality Uncompromised
S/N Ratio (IHF A)
115 dB
Crosstalk/Separation
> 70 dB
Speaker Impedance
4 ohms minimum
Auto Turn On Level (with all inputs)
3 mV input signal
Power Requirements
USA: 120 Volts, 60 Hz
Europe: 230 Volts, 50 Hz
Power Consumption
190 Watts
Idle: 22 Watts
d
Standby: 2.3 Watts
Dimensions (W x H x D)
(not including rack adaptors)
n
430 x 100 x 322 mm
16.9 x 3.9 x 12.7 in
Weight (net)
8 kg, 17.6 lb.
Panel Height
2U, 88.1 mm/3.5 in
®
STEREO POWER AMPLIFIER
RKB-250
Serial. NO.
Y-381A-0505/pdf

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RKB-250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rotel RKB-250

  • Page 1: Table Of Contents

    Quality Uncompromised ® T echnical STEREO POWER AMPLIFIER RKB-250 Manual Table of Contents Specification........1 Parts List ..........2~5 Adjustment........6 Assembled View.......7~8 PCB Assembly .........9 Schematic Diagram......10 Specification Continuous Power Output into 8 ohms S/N Ratio (IHF A) (20-20kHz, < 0.03% THD)
  • Page 2 RKB-250 Appearance PROTECTION POWER LEVEL POWER AMPLIFIER RKB-250 AC BREAKER 12V TRIG SPEAKERS WARNING SHOCK HAZARD—DO NOT OPEN. RIGHT LEFT AVIS: RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR. SIGNAL SENSE INPUT RIGHT LEFT RIGHT LEFT POWER AMPLIFIER MODEL NO. RKB-250 SIGNAL OUTPUT...
  • Page 3: Parts List 1/3

    RKB-250 Parts List 1/3 SYMBOL PARTS NO. DESCRIPTION 016 X-1426A01-04 PCB ASSY 501 X-1426 PCB ASS'Y (MAIN) L601,602 021 TRL-332 SPEAKER COIL 1F 23T IC601,602 031 MPC1237HA IC (PROTECTION) IC401,402 031 NJM4558DD IC (OPE DUAL) IC701 031 NJM555D IC (TIMER)
  • Page 4 RKB-250 Parts List 2/3 SYMBOL PARTS NO. DESCRIPTION R617,618,663-666,673,674 054 TMF1502 METAL FILM RESISTOR 1/4W 15K R641-644 054 TMF2200 METAL FILM RESISTOR 1/4W 220 R631,632 054 TMF2201 METAL FILM RESISTOR 1/4W 2.2K R671,672 054 TMF2202 METAL FILM RESISTOR 1/4W 22K...
  • Page 5 RKB-250 Parts List 3/3 SYMBOL PARTS NO. DESCRIPTION 019 4TSH-19#2 PLASTIC FOOT 50Φ (BLACK) 019 C-4714A00 POWER KNOB RING 14Φ (BLACK) 019 VF4-19A00 HOLE RUBBER PLUG for RACK FRAME 019 VF4-20A00 HOLE RUBBER PLUG for FRONT PANEL 022 T-1051U02 POWER TRANSFORMER...
  • Page 6: Adjustment

    RKB-250 Adjustment Instruments : DC milli–voltmeter Notes : Prior to Bias Adjustment, run about 5minutes with rated output(8ohms) and warm up Power Transistor and Heat Sink. Set input off. Step Coupling Location Adjust Adjust for X-1426-01 PCB VR603 DC milli–voltmeter reads 4mV...
  • Page 7: Assembled View

    RKB-250 Assembled view...
  • Page 8 <Memo>...
  • Page 9: Pcb Assembly

    RKB-250 PCB Assembly 016 X-1426A01 - 04 016 E-1434A00...
  • Page 10: Schematic Diagram

    Schematic Diagram RKB-250...
