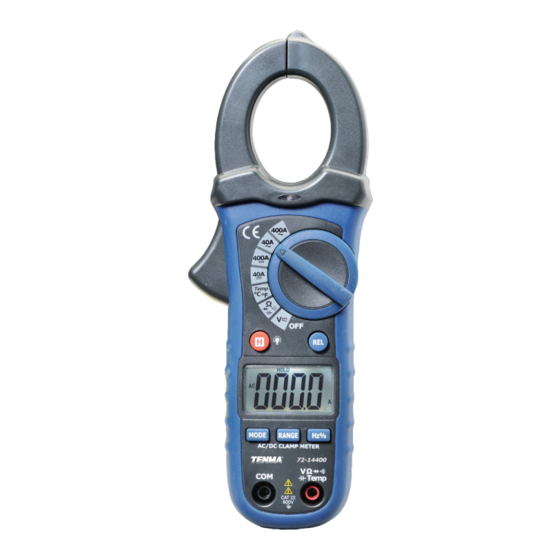

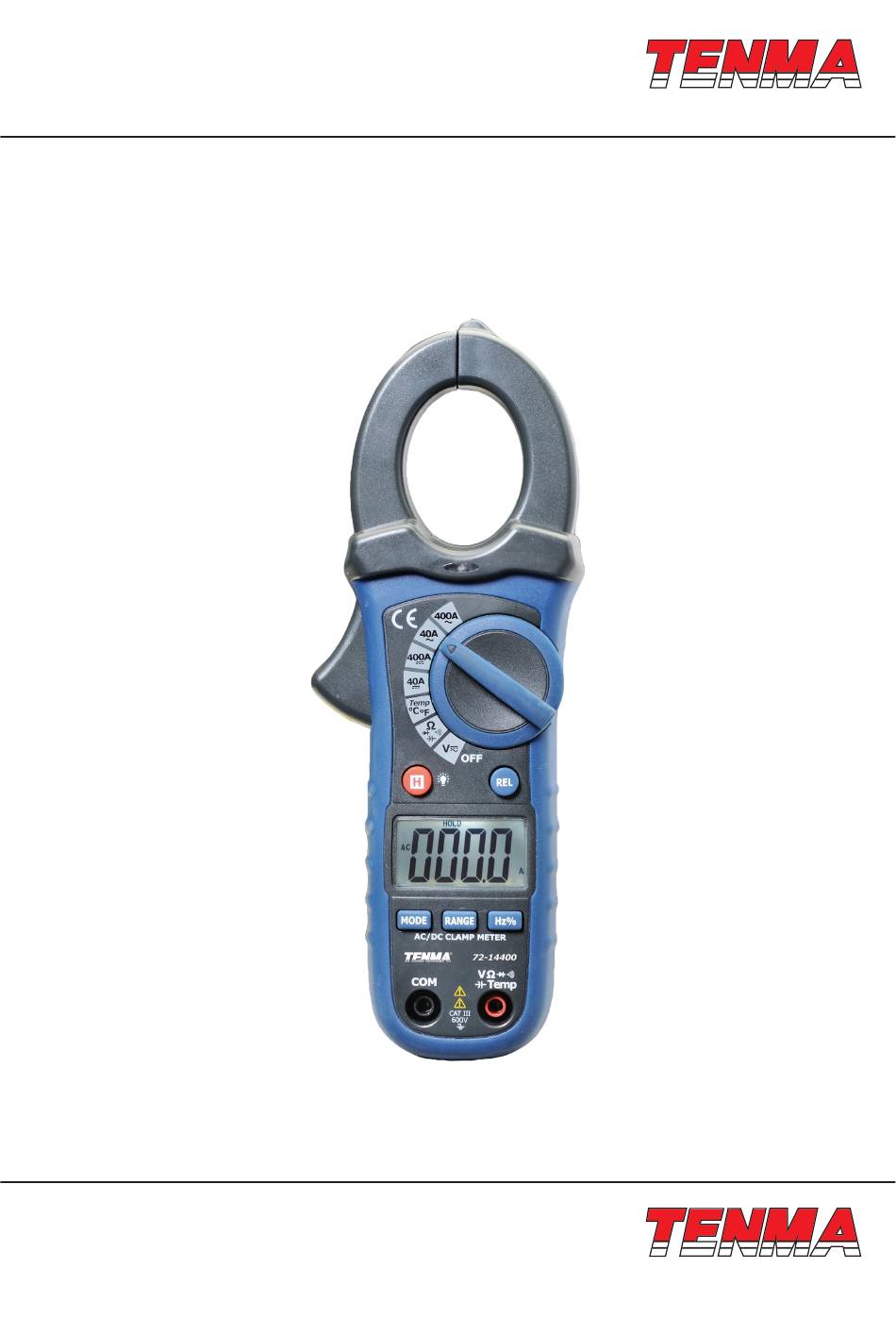

- Page 1 AC/DC Clamp Meter User Manual Part Number: 72-14400 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 06/03/19 V1.0...
- Page 2 Safety International Safety Symbols Safety This symbol, adjacent to another symbol or terminal, indicates the user must refer International Safety Symbols to the manual for further information. This symbol, adjacent to another symbol or terminal, indicates the user must refer This symbol, adjacent to a terminal, indicates that, under normal use, hazardous to the manual for further information.
- Page 3 Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Rotary Function swith 5. Data Hold/ Back Light button 6. Relative button 7. LCD display 8. MODE select button 9. Range button 10. Hz% Hlod button 11.
- Page 4 Function Range & Resolution Accuracy (% of reading) ± (2.5 % + 8 40.00 AAC digits AC Current ± (2.8 % + 5 (50/60Hz) 400 .0AAC digits ± (2.5 % + 5 40.00 ADC digits DC Current ± (2.8 % + 5 400 .0ADC digits 400.0 mVDC...
- Page 5 Operating Temperature 41 to 104 F (5 to 40 Storage Temperature -4 to 140 F (-20 to 60 Operating Humidity Max 80% up to 87 F (31 C) decreasing linearly to 50% at 104 F(40 C) Storage Humidity <80% Operating Altitude 7000ft.
- Page 6 Touch the test probe tips across the circuit or component under test. It is best to disconnect one side of the device under test so the rest of the circuit will not interfere with the resistance reading. For Resistance tests, read the resistance on the LCD display. Diode and Continuity Measurements 1.
- Page 7 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell Limited 2016.
