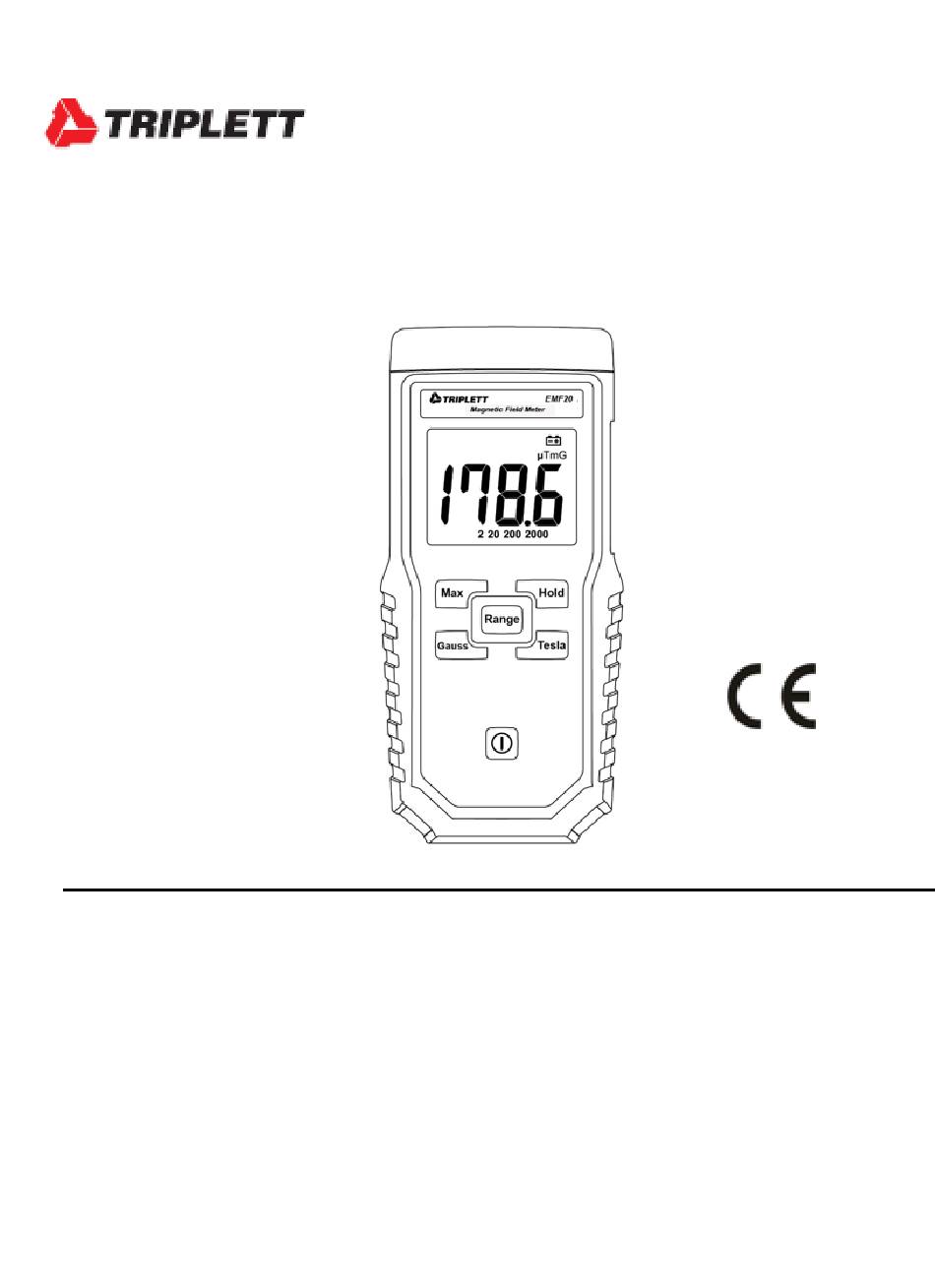

User Manual
EMF20
Magnetic Field Tester

Introduction

Congratulations on your purchase of the Triplett EMF20 Magnetic Field
Meter. This handheld instrument measures electromagnetic fields of
extremely low frequency (ELF) of 30 to 300Hz.The meter can measure the
electromagnetic field radiation intensity that is produced from electric
transmission equipment, power lines, microwave ovens, air conditioners,
refrigerators, computer monitors, video/audio devices and many other
appliances that may emit electromagnetic fields.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMF20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triplett EMF20

Summary of Contents for Triplett EMF20

  • Page 1 EMF20 Magnetic Field Tester Introduction Congratulations on your purchase of the Triplett EMF20 Magnetic Field Meter. This handheld instrument measures electromagnetic fields of extremely low frequency (ELF) of 30 to 300Hz.The meter can measure the electromagnetic field radiation intensity that is produced from electric...
  • Page 2 Safety For cleaning the instrument use a soft dry cloth. Never use a wet cloth,  solvents or water. Operation Altitude: Up to 2000M.  Operating Environment: Indoors use. This instrument has been designed for  being used in an environment of pollution degree 2 Description 1.
  • Page 3 indicates there is an overload on the reading. Please press to select a higher range for measurement again. Due to environmental magnetic field factors, this magnetic field meter could  display a reading value that is lower than 0.5mG prior to measuring. This is not a malfunction of the device.
  • Page 4 Specifications Display: 3-1/2 digits LCD, maximum reading 1999.  Range: 200/2000 mG,20/200µT.  Resolution: 0.1/1 mG or 0.01/0.1 µT.  Frequency response: 30Hz to 300Hz.  Sensor: Single Axis  Accuracy: ±(2.5%±6dgt) at 50Hz/60Hz.  Over load: LCD display “OL”. ...
  • Page 5 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
