QUICK REFERENCE GUIDE - FUNCTIONS

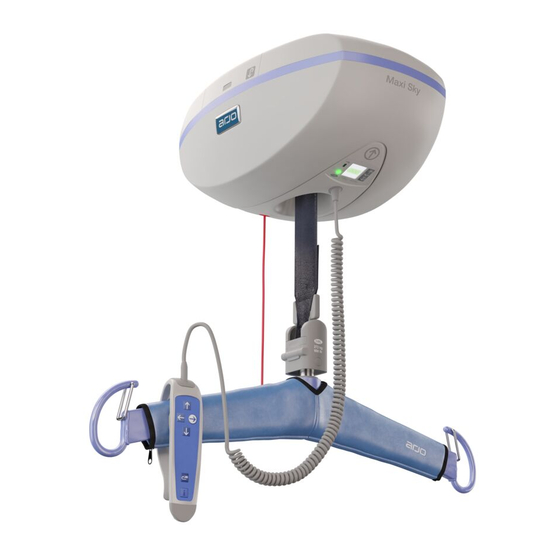

Maxi Sky 2
Hand control
Control panel
200
440
001-15783-EN Rev 0 • 05/2020 • Page 1/3
Up Button
Down Button
Right Button
Left button
Reclined Button (Only Powered DPS)
Sit Button (Only Powered DPS)
RTC (Return to Charge)
RTH (Return to Home) Button
Programming / Information Button
Auxiliary Up-Down Button
The up and down buttons are used to
complete a transfer if a problem occurs
with the hand control during the operation.
Status LED
The LED is a complement to the display to
draw attention that a message is being
displayed on the screen.
SWL
The label indicates the maximum lifting
capacity of the lift.
USB Access Port
The USB port is intended for
MAXISMART users only.
Advertisement
Related Manuals for Arjo Maxi Sky 2
Summary of Contents for Arjo Maxi Sky 2
- Page 1 QUICK REFERENCE GUIDE - FUNCTIONS Maxi Sky 2 Hand control Up Button Down Button Right Button Left button Reclined Button (Only Powered DPS) Sit Button (Only Powered DPS) RTC (Return to Charge) RTH (Return to Home) Button Programming / Information Button...
- Page 2 Shows for 7 seconds (accompanied with 2 beeps) when the lift goes from sleep mode and flashes each 5 seconds to draw user's attention. The unit can be used but maintenance shall be done as soon as possible by an Arjo technician. Overweight Flashes when a transfer is attempted with a load exceeding the lift's capacity.
- Page 3 Secure the clevis pin with the split ring. Insert the clevis pin through the attachment and the loop at the end of the strap. ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjo.com 001-15783-EN Rev 0 • 05/2020 • Page 3 /3...
