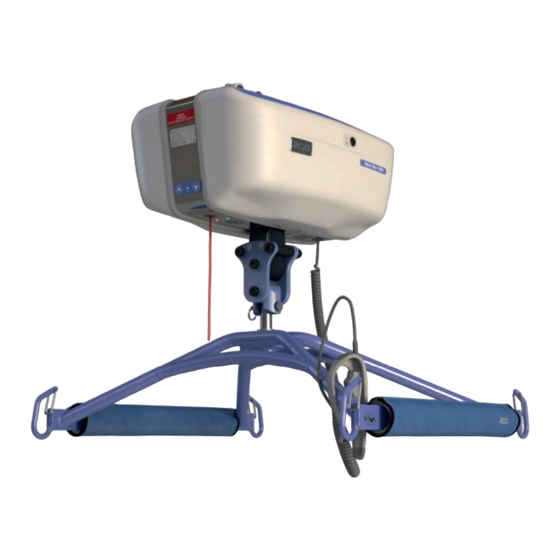

Arjo Maxi Sky 1000 Quick Reference Manual
Hide thumbs Also See for Maxi Sky 1000:

Advertisement

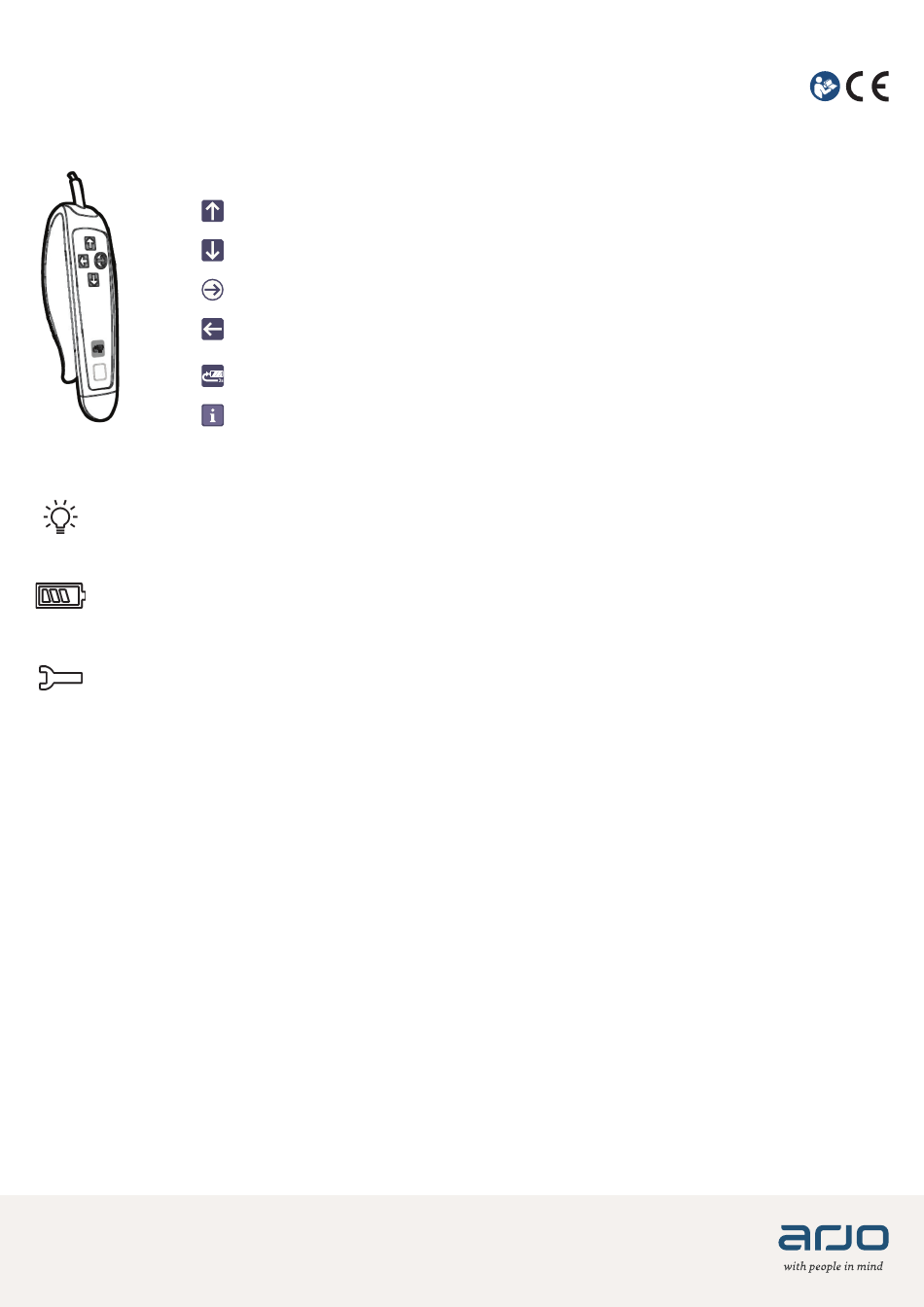

QUICK REFERENCE GUIDE - FUNCTIONS
Maxi Sky 1000

Hand control

Indicator lights - on lift

Power light - green
Flashing
Solid
Charging light - amber
Flashing
Solid
Maintenance/overheat light - red
Flashing
Solid

Enhanced Charging System (ECS) rail system

This rail system allows continuous charging wherever it is on the track. It eliminates the need to send the unit
back to the charging station after the patient transfer.

Overheat protection device

When the lift exceeds its duty cycle, a detection system blocks the lifting of a load until the temperature of the
transmission cools down. It is still possible to activate the horizontal displacement and down functions. The red
light stays on during the cooling period and a buzzer will sound if the UP button is pressed. The cooling period is
between 10 to 30 minutes depending on ambient conditions.

Return to charge (RTC)

Press on the RTC button for 3 seconds.
The spreader bar will raise all the way up to avoid any obstacles during the run. When the lift is at the charging
station, the spreader bar lowers to the preselected height to be easily accessible.
The RTC function is not an automatic transfer function. A safety weight detector is included in the device to
prevent the use of the function when a patient is present in a sling.
Up button
Down button
Right button
Left button
Return to charge button
Programming mode button
Low batteries
The lift is on and ready to use
Charging batteries
Batteries charged
Maintenance required by your local agent
Lift powered up in "service mode", "progamming mode" or overheat protection state.
001-14745-EN Rev 0 • 06/2020 • Page 1/3
