Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.
2.3.1

Assembly (left)

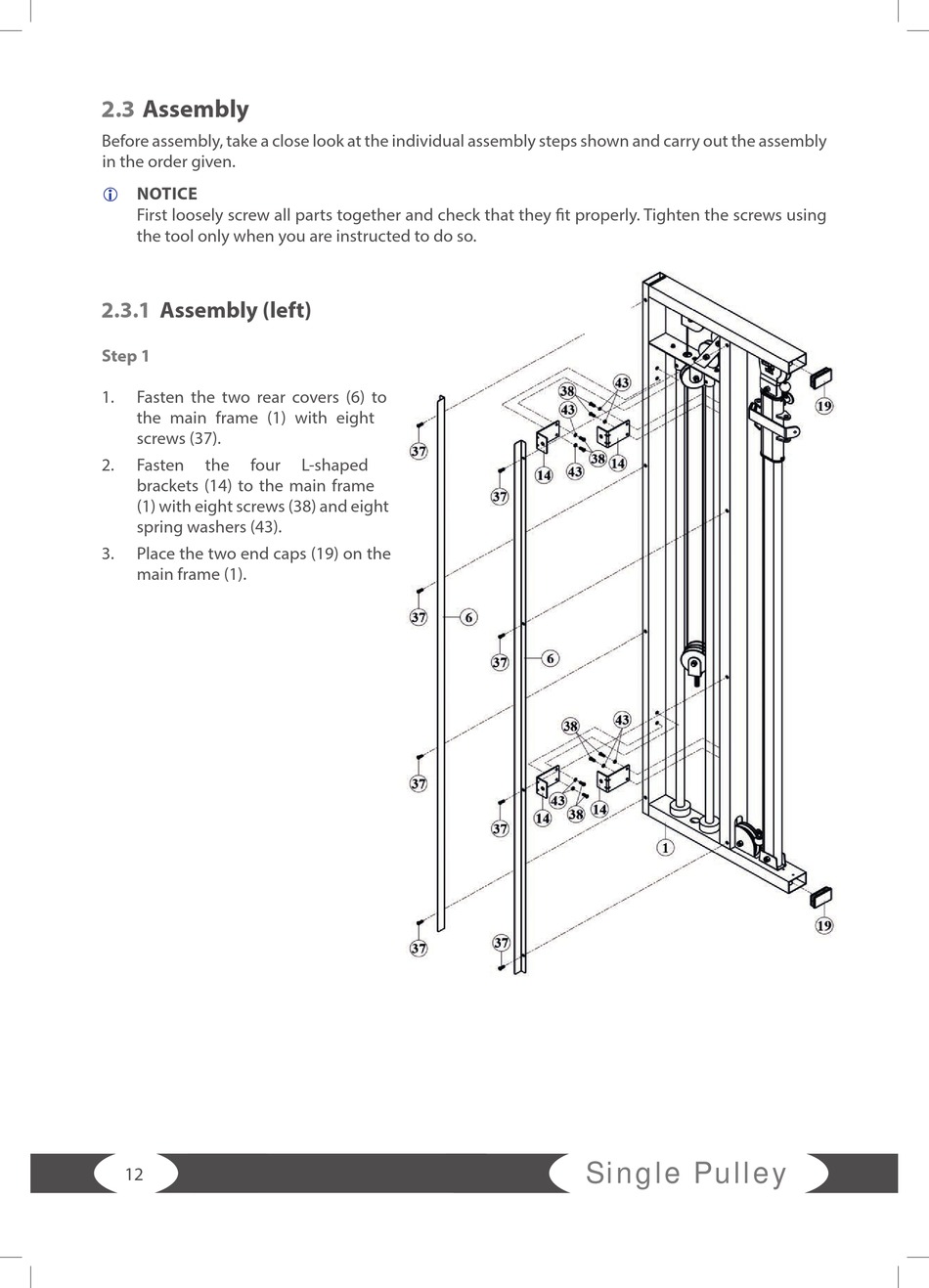

Step 1
1. Fasten the two rear covers (6) to
the main frame (1) with eight
screws (37).
2. Fasten the four
brackets (14) to the main frame
(1) with eight screws (38) and eight
spring washers (43).
3. Place the two end caps (19) on the
main frame (1).
12
L-shaped
Single Pulley
