KTR-Group KTR-STOP TB Thuster Operating & Assembly Instructions

Acc. to din 15430

Advertisement

Quick Links

®
The KTR-STOP
industrial plants serving mainly as a thruster, as an example, in drum and disk
brake systems.
Please observe protection
note ISO 16016.
KTR-STOP® TB Thruster
acc. to DIN 15430
Operating/Assembly instructions
KTR-STOP
Thruster acc. to DIN 15430
KTR-STOP
TB thruster acc. to DIN 15430 is intended for use in general
Drawn:
2020-11-02 Shg/Mro
Verified:
2020-11-02 Shg
®
TB
®
TB Thruster
Replacing:
Replaced by:
KTR-N
44414 EN
Sheet:
1 of 17
Edition:
4
KTR-N dated 2020-04-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTR-STOP TB Thuster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KTR-Group KTR-STOP TB Thuster

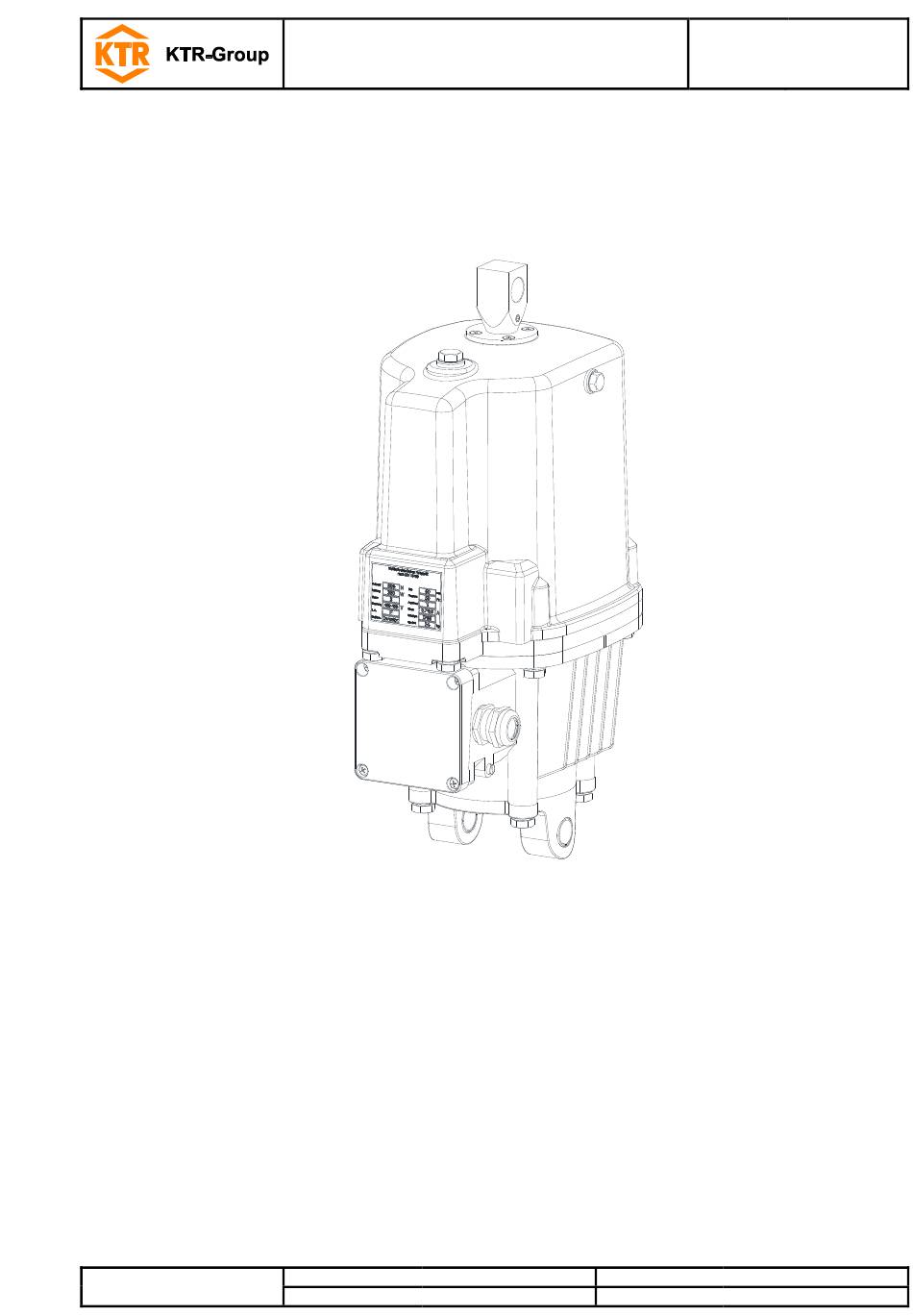

  • Page 1 KTR-STOP® TB Thruster KTR-N 44414 EN acc. to DIN 15430 Sheet: 1 of 17 Operating/Assembly instructions Edition: ® KTR-STOP Thruster acc. to DIN 15430 ® KTR-STOP TB Thruster ® The KTR-STOP TB thruster acc. to DIN 15430 is intended for use in general industrial plants serving mainly as a thruster, as an example, in drum and disk brake systems.
