1. Manuals
  2. Brands
  3. KTR-Group Manuals
  4. Industrial Equipment
  5. CLAMPEX KTR 150
  6. Operating & assembly instructions

KTR-Group CLAMPEX KTR 150 Operating & Assembly Instructions

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
®
The CLAMPEX
clamping set is a frictionally engaged, detachable shaft-hub-connection for cylindrical
shafts and bores without feather key.

Table of contents

1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
4
4.1
4.2
4.3
5
6
7
directive 2014/34/EU
Please observe protection
note ISO 16016.
CLAMPEX
Operating/Assembly instructions
CLAMPEX
potentially explosive atmospheres according to EU
Drawn:
2017-11-29 Shg/Jh
Verified:
2017-11-29 Shg
®
KTR 150
®
KTR 150
Replacing:
Replaced by:
KTR-N
40812 EN
Sheet:
1 of 9
Edition:
7
KTR-N dated 2017-04-27
2
4
4
4
5
5
5
5
5
6
6
7
9
9
9
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLAMPEX KTR 150 and is the answer not in the manual?

Questions and answers

Related Manuals for KTR-Group CLAMPEX KTR 150

Summary of Contents for KTR-Group CLAMPEX KTR 150

  • Page 1: Table Of Contents

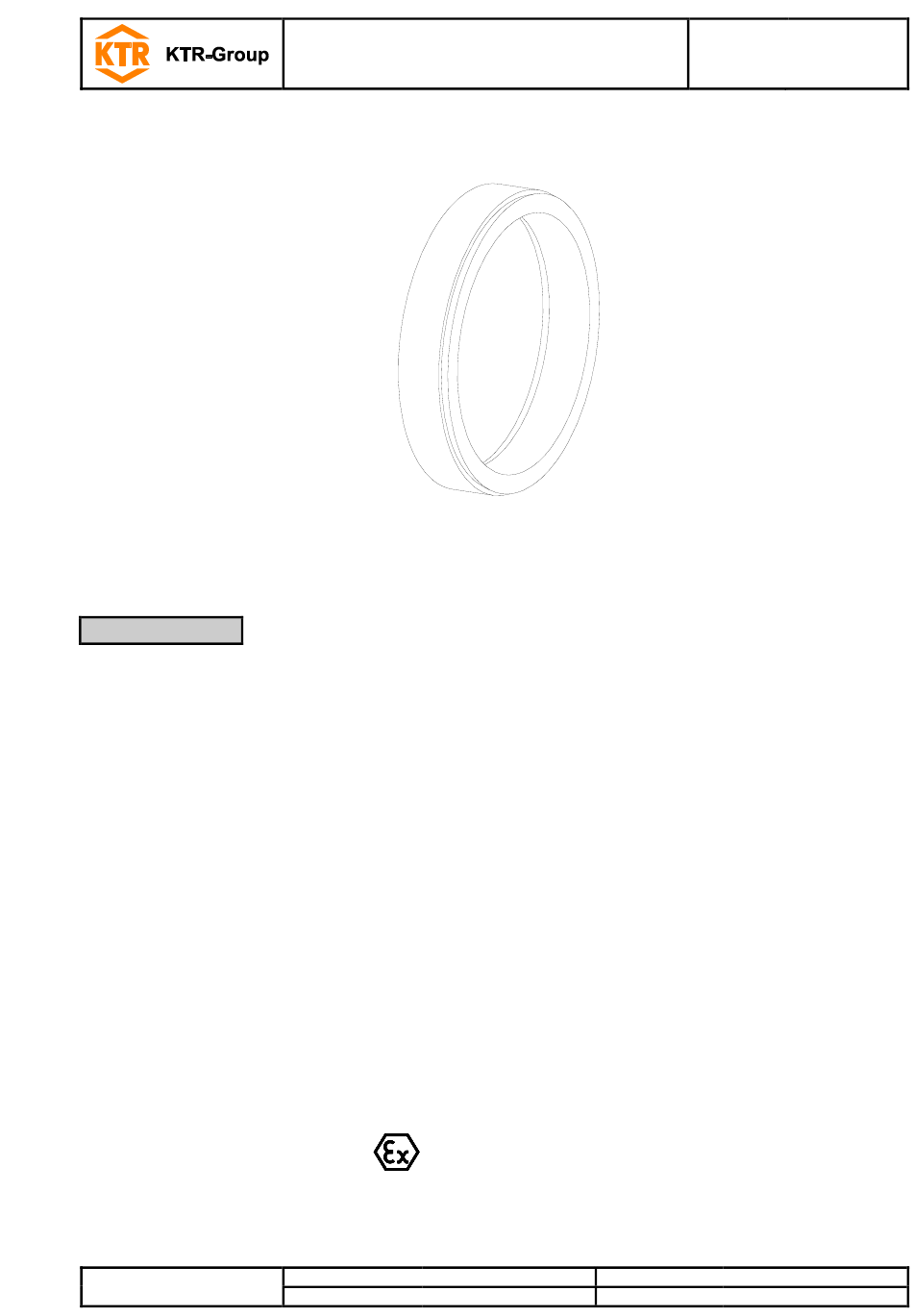

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 1 of 9 Operating/Assembly instructions Edition: ® CLAMPEX KTR 150 ® The CLAMPEX clamping set is a frictionally engaged, detachable shaft-hub-connection for cylindrical shafts and bores without feather key. Table of contents Technical data Advice General advice...
  • Page 2 KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 2 of 9 Operating/Assembly instructions Edition: Technical data 1) Dimension D : For calculation of hub see catalogue "Drive Technology" Tolerances for d and D d ≤ 38 mm = d h6/D H7 d >...
  • Page 3 KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 3 of 9 Operating/Assembly instructions Edition: Technical data 1) Dimension D : For calculation of hub see catalogue "Drive Technology" Tolerances for d and D d ≤ 38 mm = d h6/D H7 d >...

  • Page 4: Technical Data

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 4 of 9 Operating/Assembly instructions Edition: Technical data Calculation of torque with clamping elements positioned in a row multiple times ∙ 1.00 1 clamping element total single ∙ 1.55 2 clamping elements total single ∙...

  • Page 5: General Hazard Warnings

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 5 of 9 Operating/Assembly instructions Edition: Advice 2.3 General hazard warnings With assembly and disassembly of the clamping set it has to be made sure that the entire STOP drive train is secured against accidental switch-on. You may be seriously hurt by rotating parts.

  • Page 6: Assembly

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 6 of 9 Operating/Assembly instructions Edition: Assembly Generally the clamping set is supplied in mounted condition. Before assembly the clamping set has to be inspect- ed for completeness. 4.1 Components of clamping set ®...

  • Page 7: Assembly Of Clamping Set

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 7 of 9 Operating/Assembly instructions Edition: Assembly 4.2 Assembly of clamping set  Inspect the fit of shaft and hub for the tolerance specified (see illustration 1).  Clean the hub bore and shaft and afterwards apply a thin-fluid oil (e. g. Ballistol Universal oil or Klüber Qui- etsch-Ex).
  • Page 8 KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 8 of 9 Operating/Assembly instructions Edition: Assembly 4.2 Assembly of clamping set  Do not assemble the clamping element in a clamping position, make sure easy shifting.  The pressure flange can optionally be assembled either with a collar or distance ring. Make sure easy shifting as well.

  • Page 9: Disassembly Of Clamping Set

    KTR-N 40812 EN ® CLAMPEX KTR 150 Sheet: 9 of 9 Operating/Assembly instructions Edition: Assembly 4.3 Disassembly of clamping set Parts released or falling down may cause injury to persons or damage on the machine. STOP Secure the components before disassembly. ...

Table of Contents
