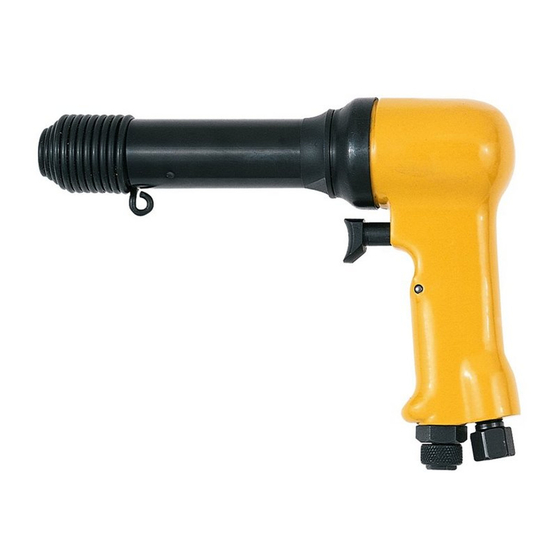

- Page 1 16605883 Edition 2 May 2014 Air Percussive Hammer Maintenance Information Save These Instructions...
-
Page 2: Product Safety Information
Note: When reading the instructions, refer to exploded diagrams in parts Information Manuals when applicable (see under Related Documentation for form numbers). Lubrication Each time a Model 132 Air Hammer is disassembled for maintenance, repair or replacement of parts, lubricate the tool as follows: Inject several drops of Ingersoll Rand No. - Page 3 Assembly of the Valve Box Assembly and Lapping An oversize Valve (20) must be lapped into the Valve Box (18). Use Grade 320 lapping compound and proceed as follows: Oversize Valve into Valve Box Install the Valve on the No. 29189 or No. 29407 Valve Lapping Valve Lapping Arbor as shown in Figure 1.
-
Page 4: Troubleshooting Guide
Troubleshooting Guide Trouble Probable Cause Solution Sluggish operation Dirt or oil gum accumulation on internal parts In a well ventilated area, pour 3 cc of a clean, suitable, cleaning solution into the air inlet and operate for 30 seconds. After flushing, lubricate with the recommended oil. - Page 5 Notes:...
