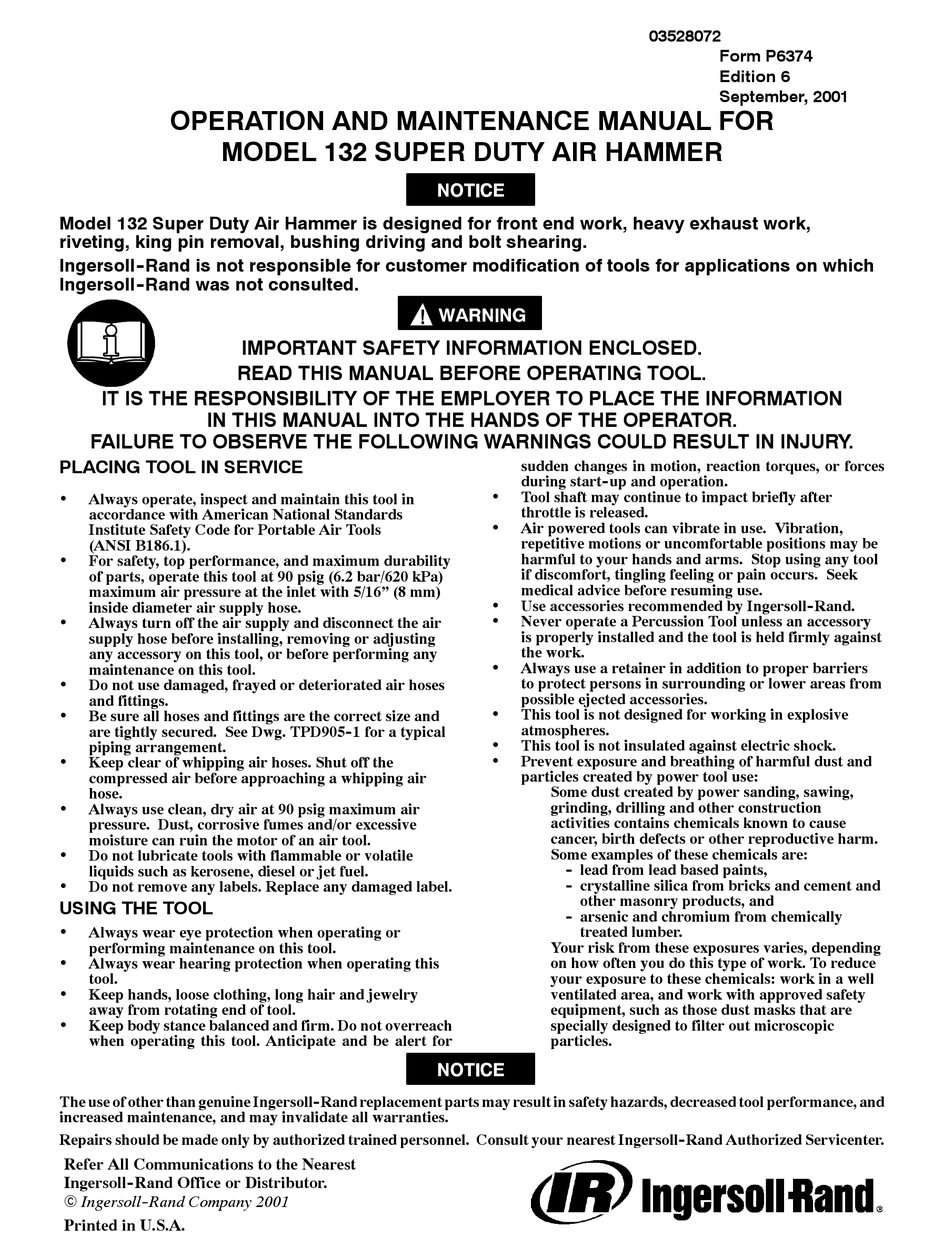

OPERATION AND MAINTENANCE MANUAL FOR
MODEL 132 SUPER DUTY AIR HAMMER
Model 132 Super Duty Air Hammer is designed for front end work, heavy exhaust work,
riveting, king pin removal, bushing driving and bolt shearing.
Ingersoll- -Rand is not responsible for customer modification of tools for applications on which
Ingersoll- -Rand was not consulted.
READ THIS MANUAL BEFORE OPERATING TOOL.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THE INFORMATION
IN THIS MANUAL INTO THE HANDS OF THE OPERATOR.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
PLACING TOOL IN SERVICE
Always operate, inspect and maintain this tool in
•
accordance with American National Standards
Institute Safety Code for Portable Air Tools
(ANSI B186.1).
For safety, top performance, and maximum durability
•
of parts, operate this tool at 90 psig (6.2 bar/620 kPa)
maximum air pressure at the inlet with 5/16" (8 mm)
inside diameter air supply hose.
Always turn off the air supply and disconnect the air
•
supply hose before installing, removing or adjusting
any accessory on this tool, or before performing any
maintenance on this tool.
Do not use damaged, frayed or deteriorated air hoses
•
and fittings.
Be sure all hoses and fittings are the correct size and
•
are tightly secured. See Dwg. TPD905- -1 for a typical
piping arrangement.
Keep clear of whipping air hoses. Shut off the
•
compressed air before approaching a whipping air
hose.
Always use clean, dry air at 90 psig maximum air
•
pressure. Dust, corrosive fumes and/or excessive
moisture can ruin the motor of an air tool.
Do not lubricate tools with flammable or volatile
•
liquids such as kerosene, diesel or jet fuel.
Do not remove any labels. Replace any damaged label.
•
USING THE TOOL
Always wear eye protection when operating or
•
performing maintenance on this tool.
Always wear hearing protection when operating this
•
tool.
Keep hands, loose clothing, long hair and jewelry
•
away from rotating end of tool.
Keep body stance balanced and firm. Do not overreach
•
when operating this tool. Anticipate and be alert for
The use of other than genuine Ingersoll- -Rand replacement parts may result in safety hazards, decreased tool performance, and
increased maintenance, and may invalidate all warranties.
Repairs should be made only by authorized trained personnel. Consult your nearest Ingersoll- -Rand Authorized Servicenter.
Refer All Communications to the Nearest
Ingersoll- - Rand Office or Distributor.
 Ingersoll- - Rand Company 2001
Printed in U.S.A.
IMPORTANT SAFETY INFORMATION ENCLOSED.
03528072
sudden changes in motion, reaction torques, or forces
during start- -up and operation.
Tool shaft may continue to impact briefly after
•
throttle is released.
Air powered tools can vibrate in use. Vibration,
•
repetitive motions or uncomfortable positions may be
harmful to your hands and arms. Stop using any tool
if discomfort, tingling feeling or pain occurs. Seek
medical advice before resuming use.
Use accessories recommended by Ingersoll- -Rand.
•
Never operate a Percussion Tool unless an accessory
•
is properly installed and the tool is held firmly against
the work.
Always use a retainer in addition to proper barriers
•
to protect persons in surrounding or lower areas from
possible ejected accessories.
This tool is not designed for working in explosive
•
atmospheres.
This tool is not insulated against electric shock.
•
Prevent exposure and breathing of harmful dust and
•
particles created by power tool use:
Some dust created by power sanding, sawing,
grinding, drilling and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
- - lead from lead based paints,
- - crystalline silica from bricks and cement and
other masonry products, and
- - arsenic and chromium from chemically
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic
particles.
Form P6374
Edition 6
September, 2001
