Summary of Contents for Schmalz SCPSb-07

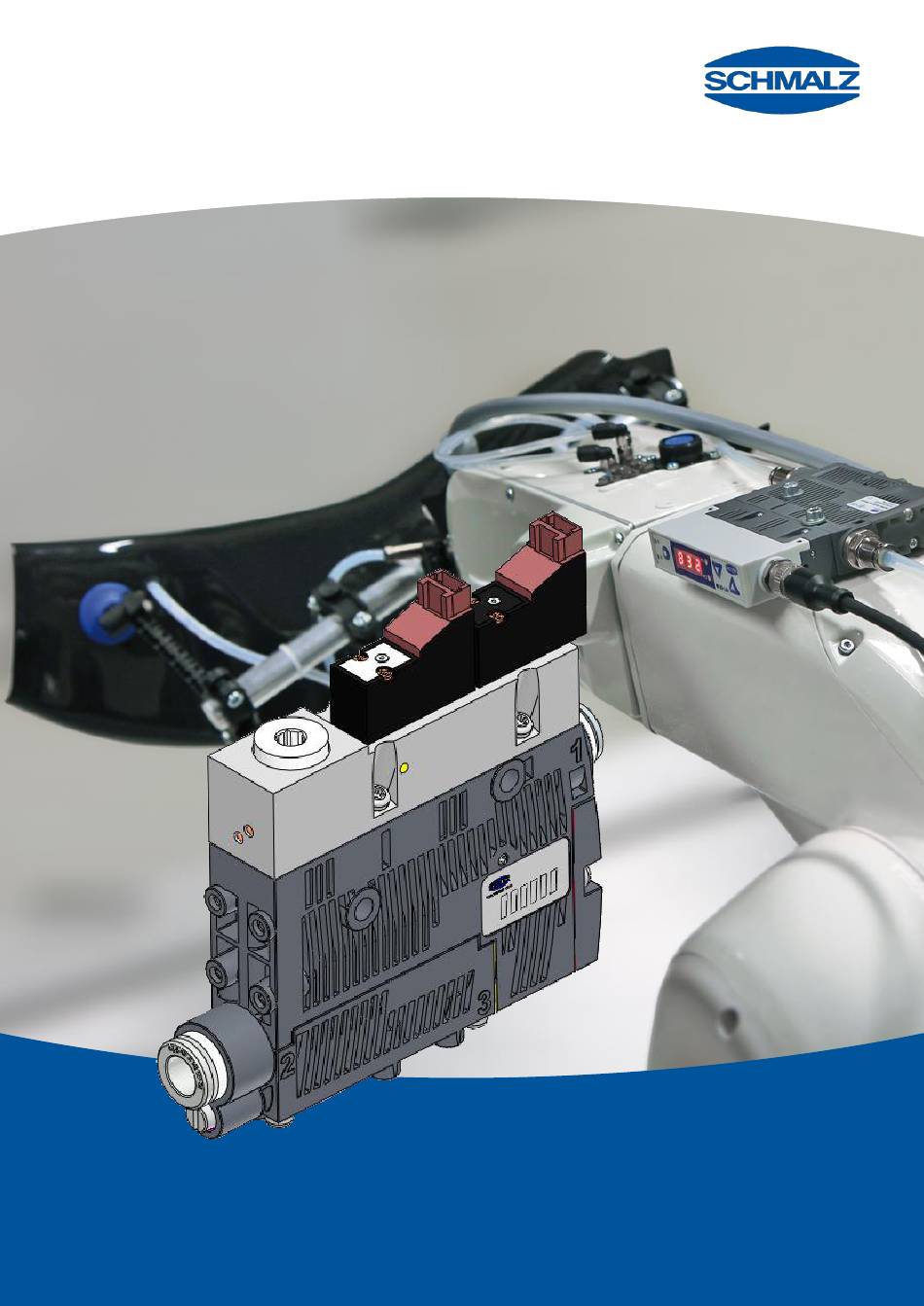

- Page 1 Innovative Vacuum-for Automation Operating instructions 30.30.01.00488 SCPSb...
-
Page 2: Table Of Contents
SCPSb C HMA LZ ONTENTS Safety Instructions ....................1-3 Important symbols ........................1-3 General safety instructions ......................1-3 Intended use ..........................1-4 Installation and operation ......................1-5 Product Overview ...................... 2-6 General description of functions ....................2-6 Vacuum generation (picking up the workpiece) ................2-6 Blow-off (depositing the workpiece) ....................2-6 Versions ............................2-6 Electrical connection ........................2-6 Ejector design ..........................2-7... -
Page 3: Safety Instructions
SCPSb C HMA LZ AFETY NSTRUCTIONS MPORTANT SYMBOLS This symbol indicates informations and instructions. Caution! This symbol indicates a potentially dangerous situation. If it is not avoided, slight or minor injuries may result. Danger! This symbol indicates an immediate hazard. If it is not avoided, death or serious injuries may result. -
Page 4: Intended Use
SCPSb C HMA LZ Specialist personnel must be familiar with current safety rules and requirements. For example, these apply to the use of components such as solenoid valves and pressure switches as well as to controllers used in devices, machines and systems. ... -
Page 5: Installation And Operation
SCPSb C HMA LZ NSTALLATION AND OPERATION For safe installation and trouble-free operation, please observe and comply with the follow- ing points: The ejector may only be operated using power supply units with protected extra-low voltage (PELV). The system must incorporate safe electrical cut- off of the power supply in compliance with EN60204. -
Page 6: Product Overview
SCPSb C HMA LZ RODUCT VERVIEW ENERAL DESCRIPTION OF FUNCTIONS ACUUM GENERATION PICKING UP THE WORKPIECE The ejector is designed for vacuum handling of parts in combination with suction systems. The venturi nozzle is activated and deactivated using the “suction” pilot valve. In the NO version, the venturi nozzle is deactivated when voltage is applied. -
Page 7: Ejector Design
SCPSb C HMA LZ JECTOR DESIGN We recommend using washers on the mounting holes. Do not look into the exhaust outlet (compressed air) during operation Max. tightening Position Description torque Pilot valve „Suction“ 0,2 Nm Pilot valve „Blow-Off“ 0,2 Nm Blow-off valve screw D6 –... -
Page 8: Description Of Functions
SCPSb C HMA LZ ESCRIPTION OF UNCTIONS ENERAL FUNCTIONS ETTING THE BLOW OFF VOLUME FLOW There is a valve screw below the vacuum connection (2). This valve screw can be used to set the blow-off volume flow. Turning the screw clockwise reduces the volume flow. Turning the screw counterclockwise increases the volume flow. -
Page 9: Operating Mode
SCPSb C HMA LZ PERATING OUNTING SCPSb … We recommend using washers when mounting the securing screws. Position Description Max. tightening torque M4 securing screw 2 Nm Top-hat rail clamp for TS35 top-hat rail, incl. plastic 0,5 Nm tapping screws (optional) -
Page 10: Pneumatic Connection
The ejector may only be operated using power supply units with protected extra-low voltage (PELV). The system must incorporate safe electrical cut-off of the power supply in compliance with EN60204. Schmalz connection lines may be used to connect the ejector directly to the controller, e.g. Art.-no. 21.04.06.00086, 3m ... -
Page 11: Maintenance
SCPSb C HMA LZ AINTENANCE ENERAL MAINTENANCE XTERIOR SOILING Remove dirt on the exterior of the device with a soft cloth and soap suds (max. 60°C). E n- sure that the silencer and the controller are not soaked with soap suds. ILENCER Because it is open, the silencer may be exposed to high levels of dust, oil, etc., which may dirty the silencer to the point of reducing the suction capacity. -
Page 12: Troubleshooting
SCPSb C HMA LZ ROUBLESHOOTING Fault Possible cause Solution Silencer is dirty Replace silencer Leakage in hose line Check hose connections Vacuum level is Leakage at suction pad Check suction pad not reach or vacu- Increase operating pressure (observe max. um is created too Operating pressure too low limits) -
Page 13: Electrical Parameters
SCPSb C HMA LZ ECHNICAL Operating the ejector system outside of the specified values can result in damage to the system and attached components. LECTRICAL PARAMETERS Limit values Parameter Unit Comment Min. Max. Supply voltage 22,8 26,4 PELV SCPSb – xx – xx - NO ... -
Page 14: Materials Used
Galvanized steel ECHANISCHE ARAMETER Sound level Suc- Nozzle Max. Max. blow- Air con- tion Weight size vacuum off capacity sumption Free rate Type sucked sucking l/min l/min l/min SCPSb-07 0,7 0,195 SCPSb-10 1,0 0,195 SCPSb-15 1,5 0,195 at 4 bar 6-14... -
Page 15: Dimensions
SCPSb C HMA LZ IMENSIONS SCPSb... 86,2 102,5 81,4 29,5 18,6 77,5 40,8 47,5 16,5 36,9 6-15... -
Page 16: Pneumatic Circuit Diagrams
SCPSb C HMA LZ NEUMATIC CIRCUIT DIAGRAMS SCPSb...NO... SCPSb...NC... 6-16... -
Page 17: Conformity Declaration
SCPSb C HMA LZ ONFORMITY ECLARATION 7-17... - Page 18 English. We reserve the right to make technical changes. No responsibility is taken for print errors or other types of errors. All information and specifications are subject to change without notice. © J. Schmalz GmbH. All rights reserved. 7-18...
- Page 19 Fax +34 94 4807264 schmalz@schmalz.co.in schmalz@schmalz.es Italy Tel. +39 0321 621510 Fax +39 0321 621714 schmalz@schmalz.it 30.30.01.00488-EN J. Schmalz GmbH Johannes-Schmalz-Str 1 Stand: 07/2018 Index: 02 D-72293 Glatten Tel. +49 (0)7443 2403 0 Fax +49 (0)7443 2403 259 schmalz@schmalz.de www.schmalz.com...
