accESS To THE cooliNg uNiT

If you have to access the cooling unit from the machine
for any reason whatsoever, please act as follows:
- Detach the machine from the mains
- Remove the feet cover (unscrew the fastening screw)
- Remove the vandal-proof grid
- Remove the screws intended to fasten the product
dispensing compartment and extract it.
- Remove the screws intended to fasten the cooling unit
and extract it.
- to reassemble, act in the reverse order
© by N&W GLOBAL VENDING S.p.A.
.

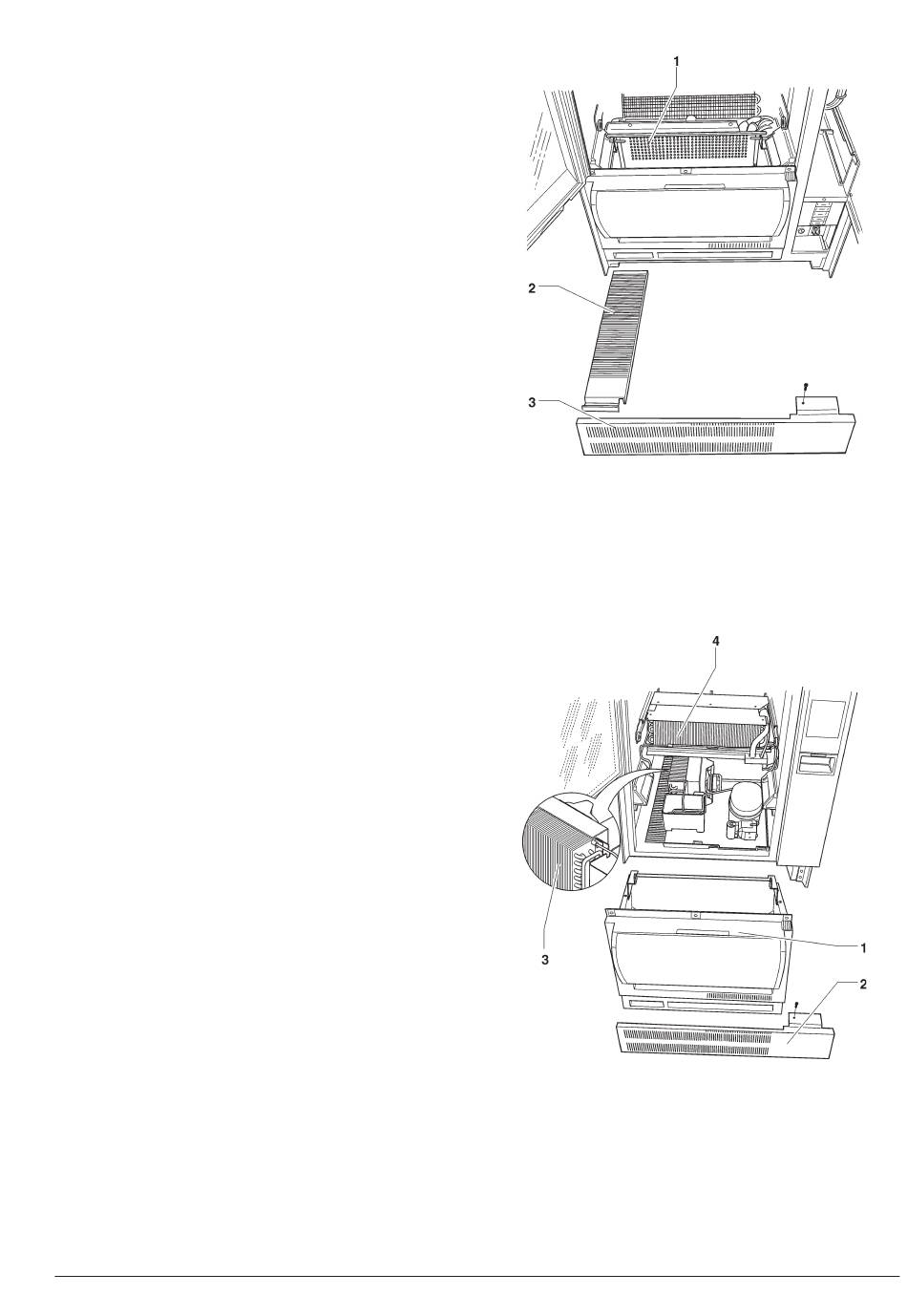

Fig. 44
1- Vandal-proof grid
2- Removable grid
3- Feet cover
Fig. 45
1- Dispensing compartment
2- Feet cover
3- Condenser
4- Evaporator
