ACTuATIOn BOARD

The actuation board (see fig. 41) is only arranged in the
models also complete with belt trays.
This board manages:
- Motors of spiral trays
- Motors of belt trays
- Dispensing compartment lock device
- Motor-driven dispensing compartment (if available)
- (if available)
softvend
The board is complete with some LEDs that can supply
the following information during the operation:
- the red LED (17) will turn on if the software is reset for
any reason whatsoever.
- the green LED (21) will turn on when 5 Vdc is applied;
- - the green LED (22) will turn on when 24 Vdc is ap-
plied;

glASSfROnT lIghTIng BOARD

This board is intended to supply the glassfront lighting
LED's with direct current for constant brightness.
The board is arranged in the slide-in compartment of
payment systems.

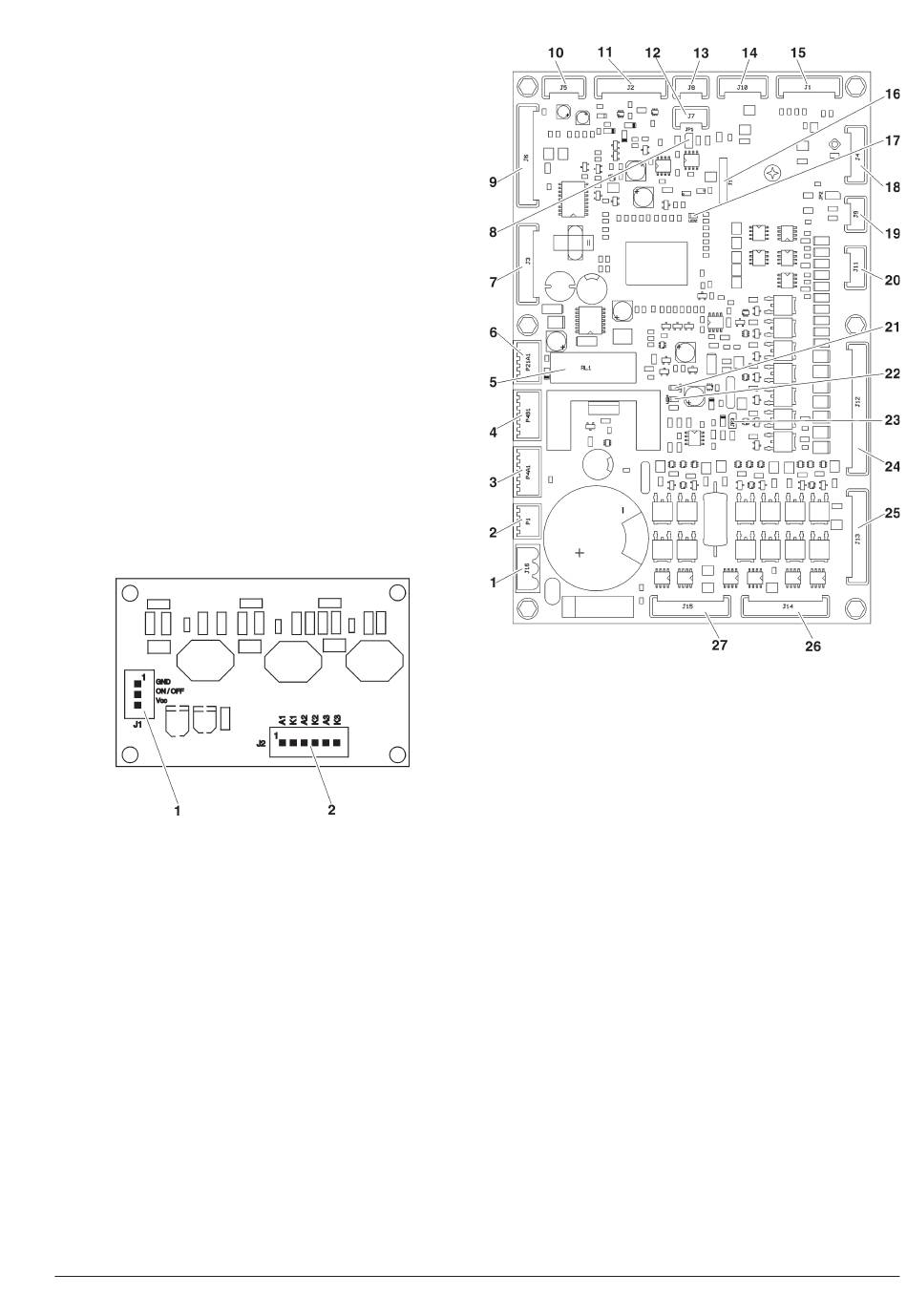

Fig. 40
1- To the CPU board
2- To the lighting LED boards
© by N&W GLOBAL VENDING S.p.A.
Fig 41
1- 24Vac power supply
2- Not used
3- CPU 34Vdc board power supply
4- CPU 34Vdc board power supply
5- 34Vdc safety relay
6- Safety input relay
7- LED lighted path
8- Can-bus JP1 jumper (closed)
9- Input / output
10- Not used
11- Actuation board programming
12- Can-bus
13- Can-bus
14- Not used
15- Not used
16- Not used
17- DL2 "RESET" red LED
18- Not used
19- Not used
20- M8 and M9 motor
21- DL3 "+5V" green LED
22- DL4 "+24V" green LED
23- JP3 WDI jumper (closed)
24- M0 - M7 spiral motors and 1 - 7 tray
25- Photocells (if available)
26- Motor and compartment input
27- (if available)
softvend
