a
ccEssoriEs
A wide range of accessories can be mounted on the
machine to vary its performances:
The assembly kits are supplied with mounting and test-
ing instructions that shall be strictly followed to preserve
the machine safety.
assembly and any subsequent testing operation
must be carried out by qualified personnel who
have a specific knowledge of the machine opera-
tion from the point of view of electric safety and
health rules.
E
lEctric ENErgy coNsumptioN
The electric energy consumption of the machine will
depend upon many factors such as the temperature and
ventilation of the room where the machine is installed,
the product load temperature and the temperature inside
the refrigerated boxes.
On average operation conditions, i.e:
- room temperature:
- temperature in the refrigerated box:
- temperature of loaded products
(completely empty machine)
The following energy consumption values have been
measured:
- 24-h stand-by consumption
The energy consumption calculated on the average val-
ues above shall be understood as merely indicative.
© by N&W GLOBAL VENDING S.p.A.

VariablE combiNaTioN locK

Some models are supplied with a variable combination
lock.
The lock is complete with a silver key for normal opening
and closing operations.
It is possible to customise the locks by using a kit made
available as an accessory and intended to change the
lock combination.
The kit is composed by a change key (black) of the cur-
rent combination as well as by change (gold) and use
(silver) keys of the new combination.
Sets of change and use keys with other combinations
can be supplied upon request.
Moreover, further sets of use keys (silver) may be re-
quested by specifying the combination stamped on the
keys.
Generally, only the use key (silver) shall be used where-
as the combination change keys (gold) can be kept as
spare keys.
Do not use the change key for usual opening opera-
°C 25
tions since this may damage the lock.
°C 3.5

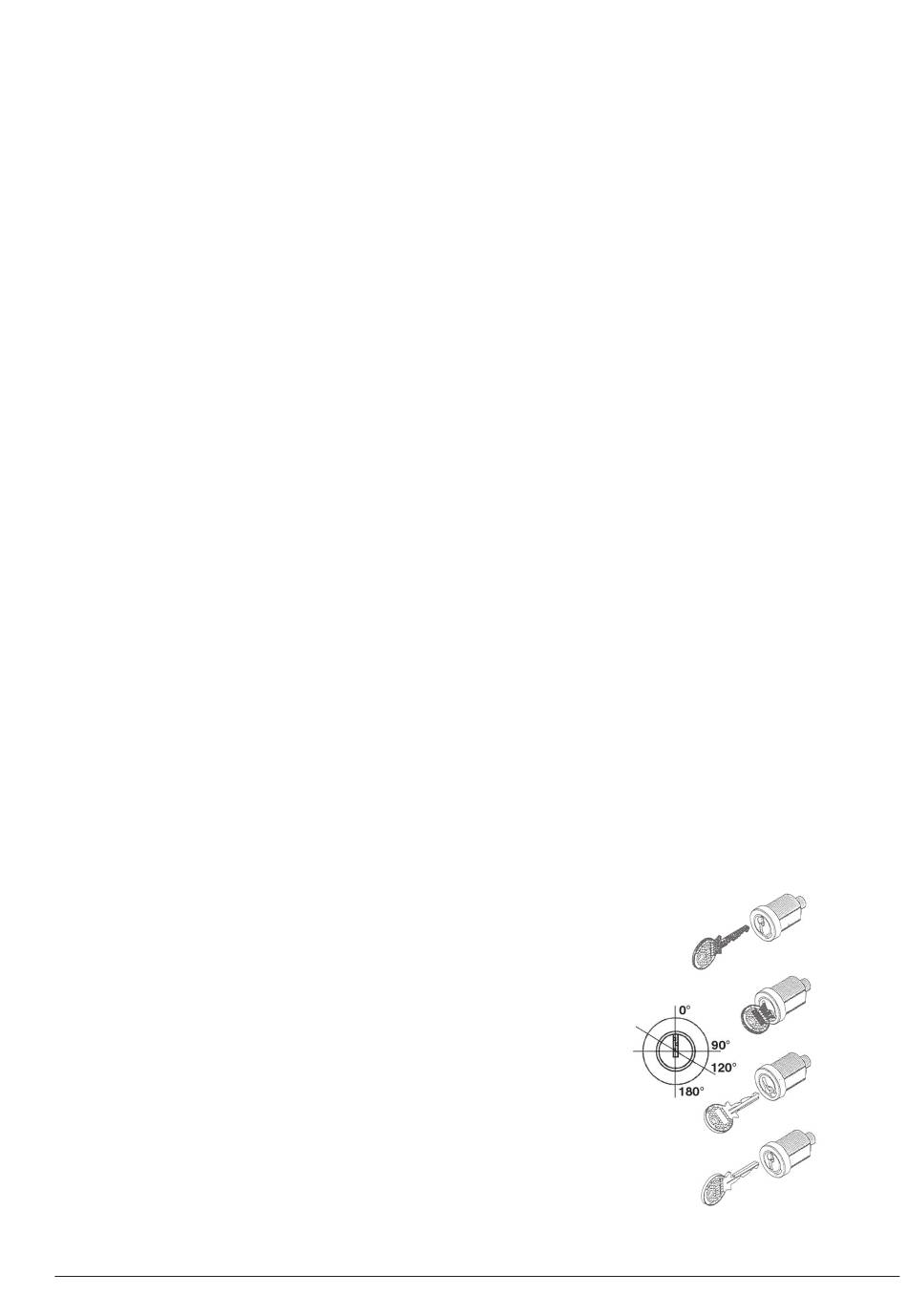

to change the combination, act as follows:
- open the sliding compartment of the machine to avoid
having to force the rotation;
°C 5
- slightly lubricate by using a spray inside the lock;
- insert the current change key (black) and turn it until
Wh 7,632
you reach the change position (reference notch at
120°);
- remove the current change key and insert the change
key (gold) with the new combination;
- turn it until you reach the close position (0°) and re-
move the change key.
The lock has now assumed the new combination.
The keys of the old combination can be no longer
used with the new combination.
Fig. 3
