ProducT EJEcTor

Right and left ejectors must be used for products packed
in bags, such as potato crisps or alike.
As they are hooked at the end of the spiral, they will push
the product further outside. If necessary, push them
along the spiral wire to find out the position most suitable
for the product to be dispensed.

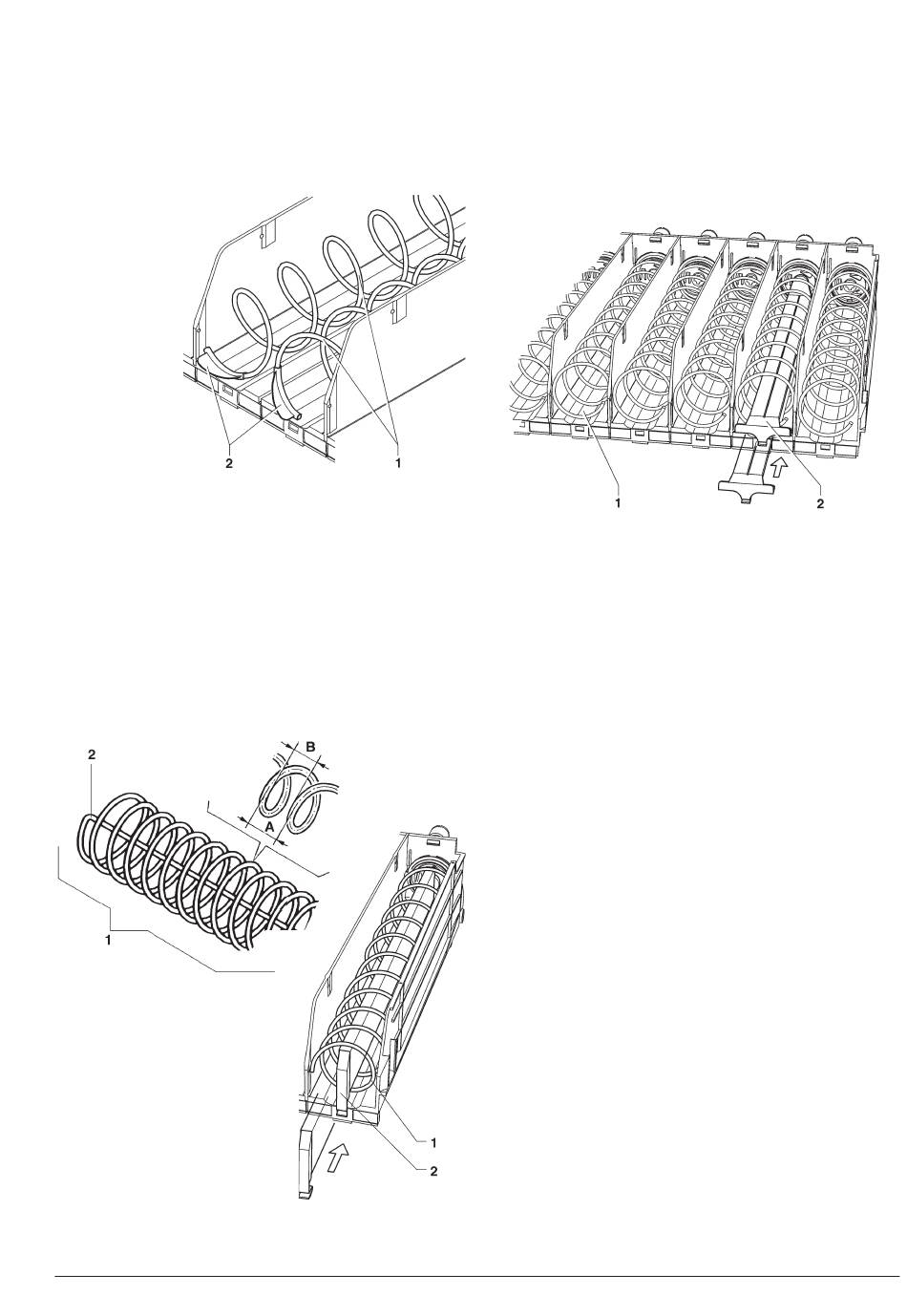

Fig. 26
1- spirals
2- ejectors

ProducT diVidEr

To dispense sticks of candies or alike, you can config-
ure 75 mm compartments to double the compartment
capacity by:
- mounting a spiral complete with a divider (see fig. 27)
- rotating the spiral by 180° instead by 360°
You can also insert a divider between already-existing
spirals (see fig. 27)
Fig. 27
1- Spiral for 180° rotation
2- Divider
A - Spiral pitch
B - Maximum product size
© by N&W GLOBAL VENDING S.p.A.

ProducT raiSEd SuPPorT

It is recommended to use a product raised support to
dispense plastic bottles up to 69mm, cans or 0.2L tetra-
packs.
The product raised support shall be mounted, as it is
shown by fig. 28.
Most bottles can be dispensed without any product
raised support by loading the bottles up side down so
that the cap slides in the tray channel.
Fig. 28
1- Tray channel
2- Product raised support
41
